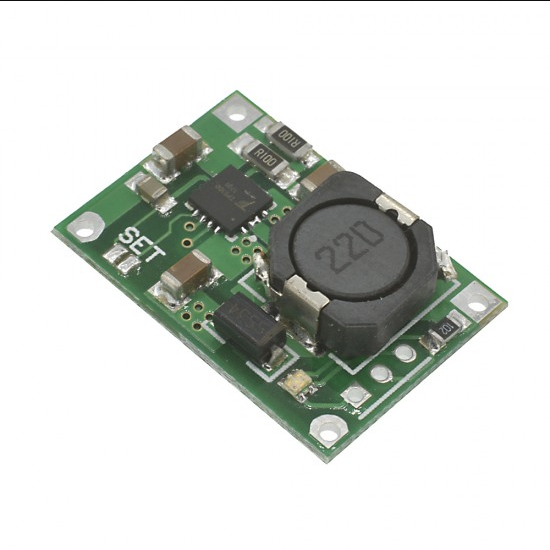

TP5100 2A Lithium Ion 18650 Battery Charger Module

TP5100 2A Lithium Ion 18650 Battery Charger Module is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications. Meanwhile, TP5100 built-in input overcurrent, undervoltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.

TP5100 have 5V-18V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three phase, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintain a smaller amount of heat.

TP5100 built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and other external Schottky diode.

Features:

Double 8.4v / 4.2v lithium rechargeable single
Programmable charge current. 0. 1A-2A
Programmable steady precharge current 10% -100%
Wide operating voltage, maximum reach I8V
Red and green LED charge status indicator
Chip temperature protection, overcurrent protection, undervoltage protection
Battery temperature protection, reverse battery shutdown, short circuit protection
Switching frequency 400Khz, usable inductance 20uH and more
PWR_ON Power battery for switching control

Specifications:

Model	TP5100
Input Supply voltage (V)	5 ~ 18
Programmable charge current	0.1 ~ 2 A.
Charge status	full and unloaded blue lights, charging red.
Length (mm)	26
Width (mm)	17
Height (mm)	25
Weight (gm)	5
