2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module

Name: 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module
Brand: Generic / Other
SKU: Anil581
Price: 39.00 INR
Availability: InStock

grade Be the first to review

SKU: Anil581 content_copy

Brand: Generic / Other

MRP: ₹149.50 Save ₹110.50 (74% OFF)

₹39.00 (Incl. 18.00% GST) Excl. GST: ₹33.05

In Stock (10 units ready to dispatch from Ahmedabad Hub)

receipt_long GST Invoice with ITC Claim

inventory Wholesale & Volume Pricing Click tier to auto-select

1 – 4 pcs

₹39.00

Regular

5 – 9 pcs

₹37.05

Save 5%

10+ pcs

₹35.10

Save 10%

Qty

pin_drop Check Delivery & Shipping SLA Free Shipping > ₹2,000

local_shipping

Dispatches in 24h

From Ahmedabad Hub

verified

100% Genuine Part

Tested & Quality Checked

receipt_long

GST B2B Invoice

Input Tax Credit Eligible

support_agent

7-Day Support

Easy Defect Replacement

chat Need Technical Help? Chat on WhatsApp

memory Technical Parameters & Datasheet Summary

SKU: Anil581

Component Title 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module

Part Number / SKU Anil581

Brand / Manufacturer Generic / Other

Category & Taxonomy Battery Protection Module

Applicable GST Rate 18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)

Packaging Protection Anti-Static Moisture Barrier Shielding Bag (ESD Protected)

Dispatch Hub Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India

Datasheet & Queries? chat Ask an Application Engineer on WhatsApp

2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module

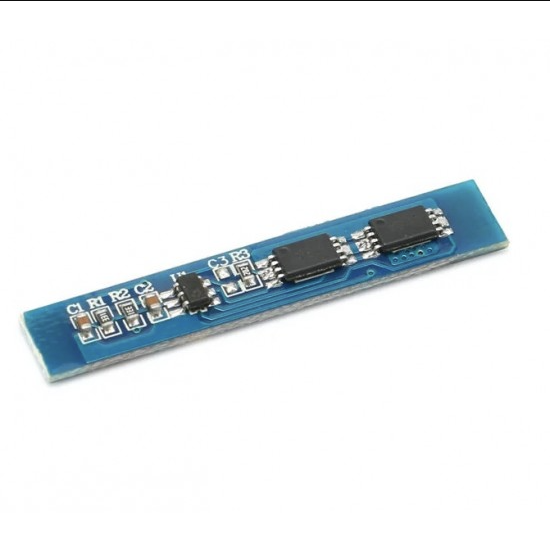

2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module is a small PCB mounted Li-ion Lithium Battery charger protection module. This small and smart battery charger protection module comes with various features like Short circuit protection, Overcharge protection, Over-discharge protection, Overcurrent protection. It is very easy to install and convenient to use in all your DIY portable projects.

Features :

Over-Discharge Detection Voltage: 2.3-3.0V±0.05V.
Maximum Working Current: 3A.
Transient Current: 5A.
Operating Temperature : -40-50 C.
Internal Resistance: Less than 45m Ω.
B+ B-: The interface of battery core.
P+ P-: The connector of the battery board.
MB: The connection point between the batteries.

Specifications:

Battery	2 Cell
Overcharge detection voltage (V)	4.25 ± 0.025
Over-discharge detection voltage (V)	2.50 ± 0.08
Over current Protection (A)	5
Working current (A)	3
Operating Temperature (°C)	-40 ~ +85

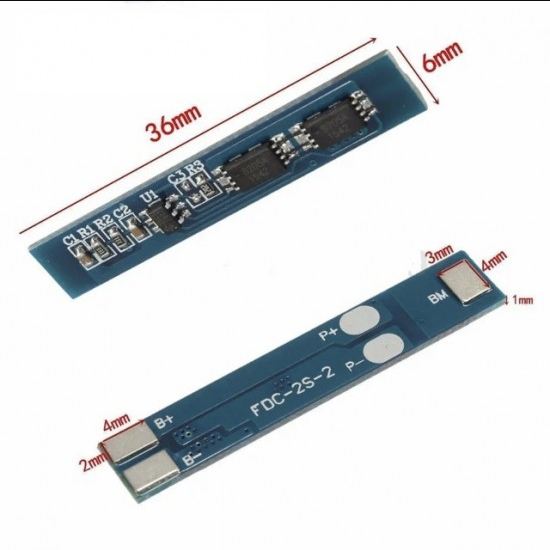

Length (mm)	36.5
Width (mm)	6.5
Height (mm)	2
Weight (gm)	1

Pin Descriptions:

B+ B-: The interface of battery core
P+ P-: The connector of the battery board
MB: The connection point between the batteries
B+: Battery V+ Positive
B-: Battery V- Negative
P+: Output / Charging V+
P-: Output / Charging V-

Package Includes :

1 x 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module.

Note:

The protection board cannot be used for lithium iron phosphate batteries, hernia lamps, hand drill battery pack, electric fish battery pack, electric bicycle battery pack, buggy battery, 775 (4A) above the motor, 1W fisheye LED lamp.
