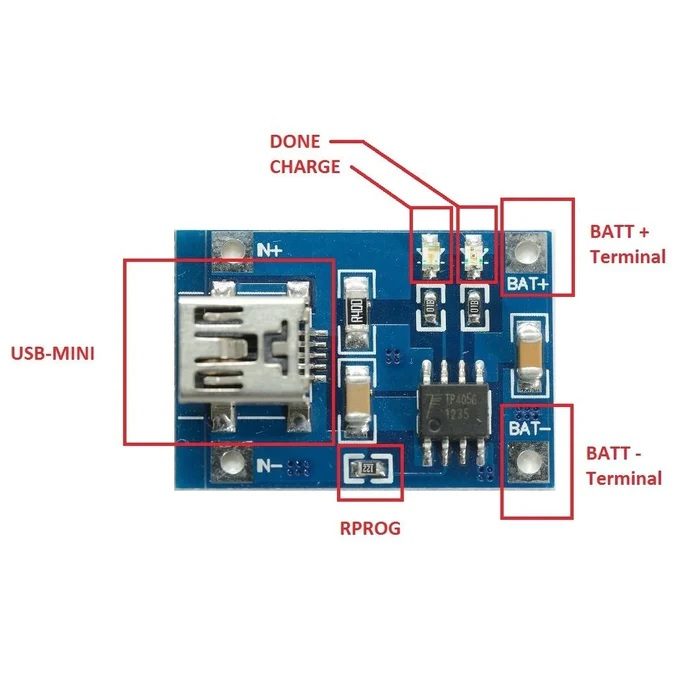

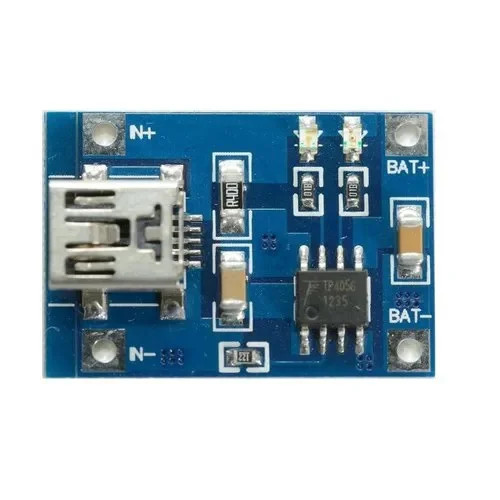

TP4056 1A Li-ion lithium Battery Charging Module – Mini USB

The TP4056 1A Li-ion lithium Battery Charging Module – Mini USB is a 3.7V lithium battery charger module has onboard Mini USB interface. With Mini-USB onboard connector, you can directly connect to computer USB port for battery charging. If USB is not available you can use an external source voltage at IN+/IN- pads, great for DIY projects. It is small size and lightweight.

Manufactured under fully machinery processing. Each module is tested OK before shipment from Robu.in so it has high reliability for the best performance. In conclusion, it is special design for a single lithium battery charging.

It uses the internal PMOSFET architecture which eliminates the use of blocking diode. It prevents negative Charge Current Circuit. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charging current is programmable externally with a single resistor. The TP4056 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached.

TP4056 Other features include the current monitor, under voltage lockout, automatic recharge, and two status pin to indicate charge termination and the presence of an input voltage.

We have more such charging boards employing same TP4056 chip which are available and they are different according to the onboard USB port and current protection they provide,

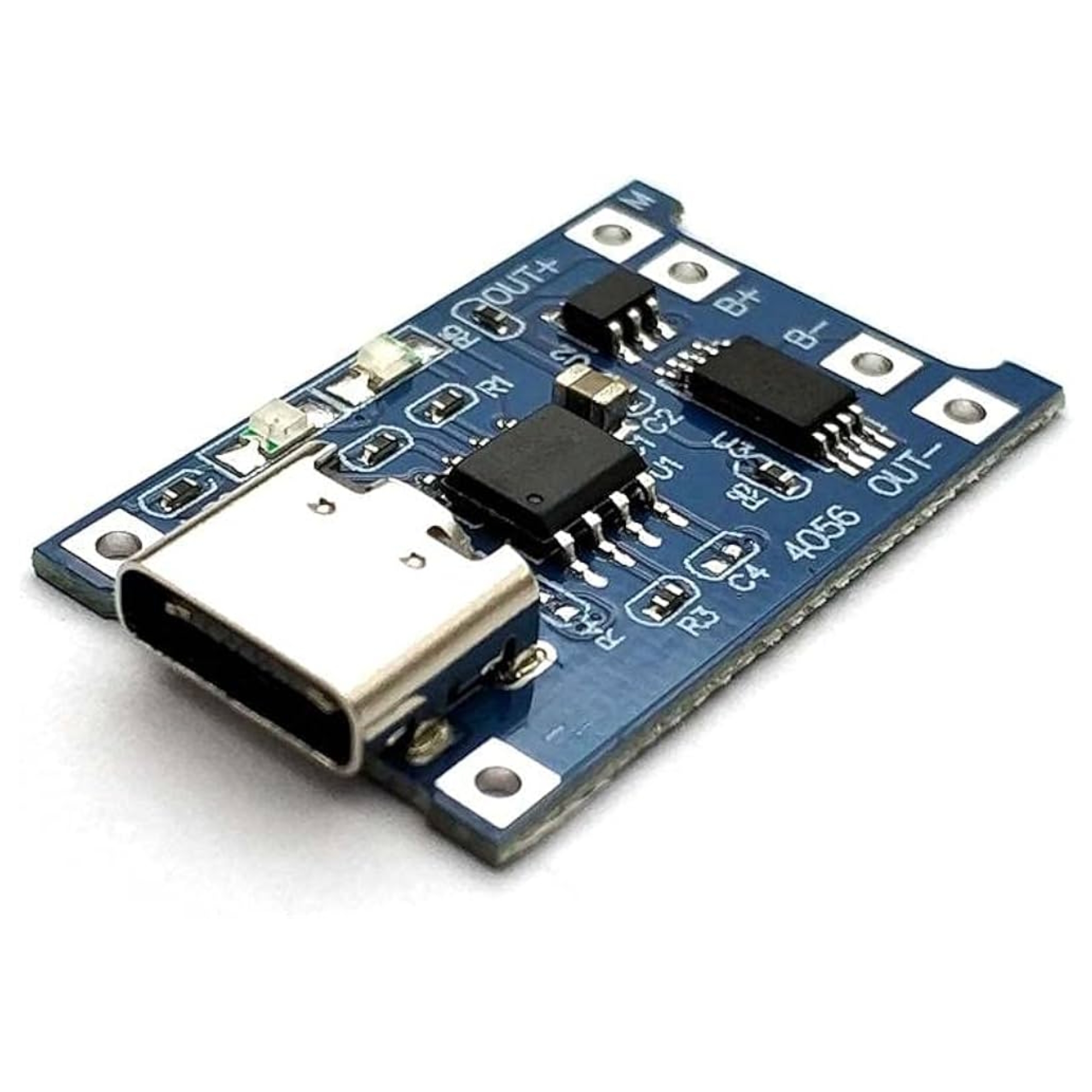

• TP4056 1A Lipo Battery Charging Board Micro USB with Current Protection

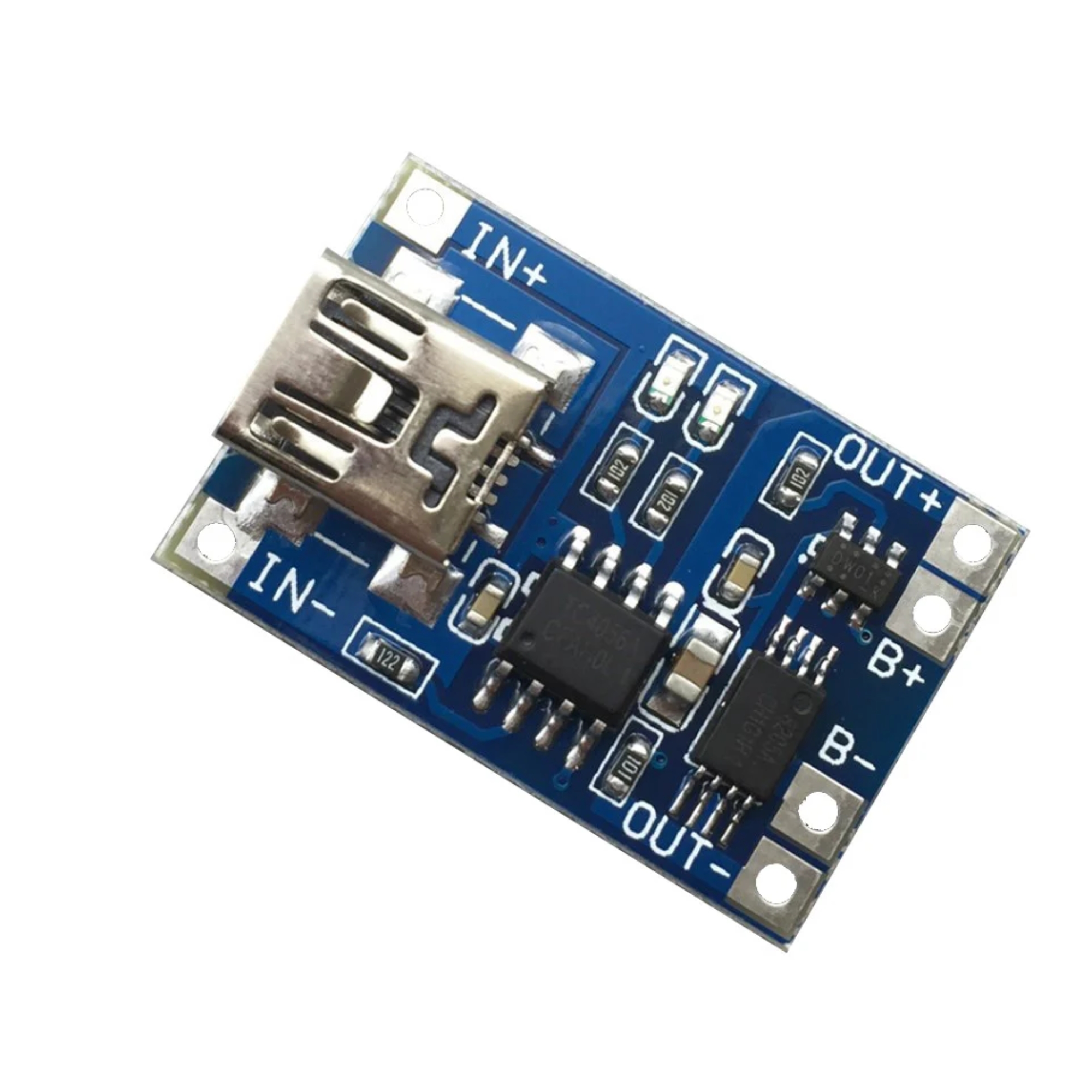

• TP4056 1A Li-ion lithium Battery Charging Module – Micro USB
• TP4056 1A Li-ion lithium Battery Charging Module with Current Protection – Mini USB
• Type-C USB 5V 2A Battery Charging Discharging Boost Module

Features :

• Charging indicator: RED LED charging, BLUE LED full Charged
• Charge Current: 1A (default), modify the onboard resistor to adjust the charging current according to the table below.
• Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.
• Fully machinery automated processing, all patch parts manufacturing.
• Charging current can be adjusted by just changing the circuit board’s fixed resistors. It can change the output to the 100mA-1000mA, very conveniently.(refer pdf linked below).

Specifications:

• Charging accuracy (%): 1.5
• Charging method: Linear
• Full Charge Voltage (V): 4.2
• Height (mm): 6
• Input Voltage (V): 4.5-5.5
• Length (mm): 25
• Operating Temperature (°C): -10 to 85
• Rated Power (W): 4.2
• Weight (gm): 3
• Width (mm): 19

Package Includes :

• 1 x TP4056 1A Li-Ion Lithium Battery Charging Module – Micro B USB

Note:

• This breakout board does not have Overcurrent protection.
• Connect Ampere meter in series with 5V input end.
• The charging current is best to be 0.37 times of the battery capacity,
• Charging wire can’t be too thin or too long while interfacing.
• Make sure the board has good contact with the battery.
• Chip at work about 60 degrees fever is normal.
• Input reverse connection has no effect on the chip. Rather the output (battery’s) reverse connection will burn out the chip.
