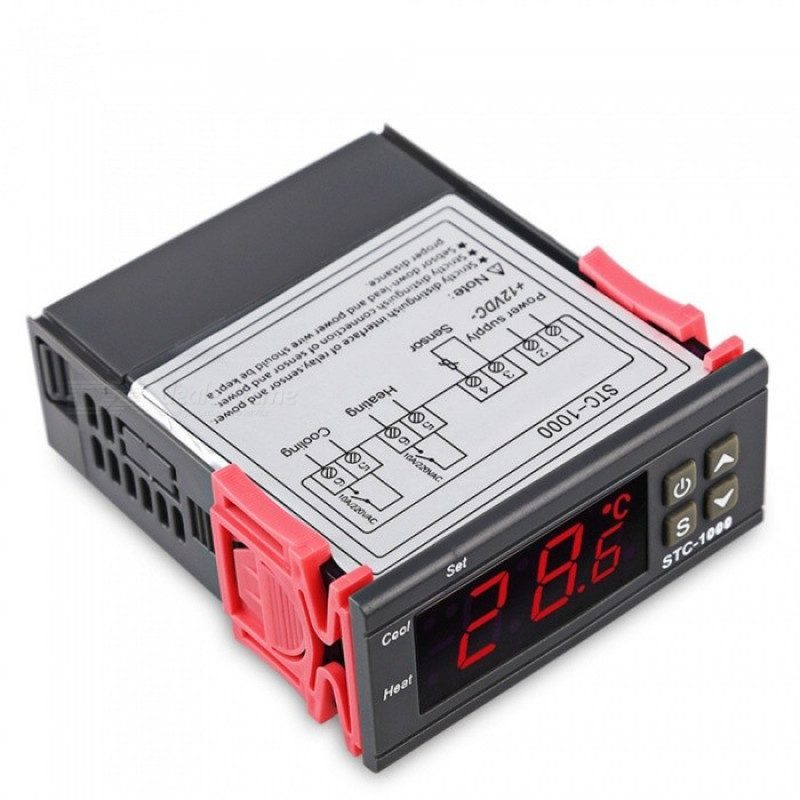

STC-1000 220V AC All Purpose Digital Temperature Controller Thermostat Module with Temperature Sensor Probe

STC-1000 220V AC All Purpose Digital Temperature Controller Thermostat Module with Temperature Sensor Probe is a temperature measurement and Controller tool with high accuracy and precision at a very low cost. It offers a high-temperature control precision of 0.1℃. The temperature control range from -50℃ to 99℃.

The LED display shows the results clearly. One can directly install or embed the STC-1000 in industrial control equipment panel, convenient and quick. It features a 1M probe made up of stainless steel material which makes it waterproof and does not let it rust easily. Also, all the delicate and sensitive components are kept safe in ABS flame retardant housing which is avirulent and environmental protective.

Features :

• seamlessly Switch between the temperature modes (between cool and heat).
• Temperature is controlled by setting the temperature value and the difference value.
• manual temperature calibration is available.
• Refrigerating control output delay protection is built-in.
• An alarm outputs a warning sound when the temperature exceeds temperature limit or when the sensor outputs error.

Specifications :

• Model: STC-1000
• Power supply: 220VAC±10%, 50/60Hz
• Temperature measuring range: -50 – 99°C
• Resolution: 0.1°C
• Accuracy: ±1°C (-50 – 70°C)
• Sensor error delay: 1 minute
• Power consumption: ≤3W
• Sensor: NTC sensor
• Relay Output capacity: Cool 10A/250VAC; : Heat 10A/250VAC
• Ambient temperature: 0 – 60°C
• Storage temperature: -30 – 75°C
• Relative humidity: 20% – 85% (No condensate)

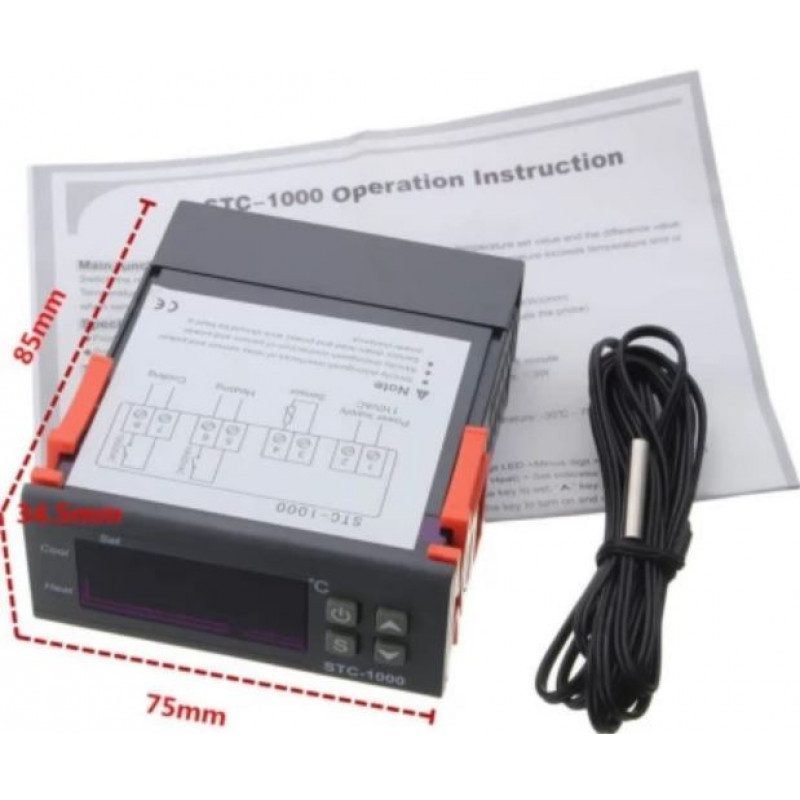

• Front panel size: 75(L) x 34.5(W)(mm)
• Mounting size: 71(L) x 29(W)mm

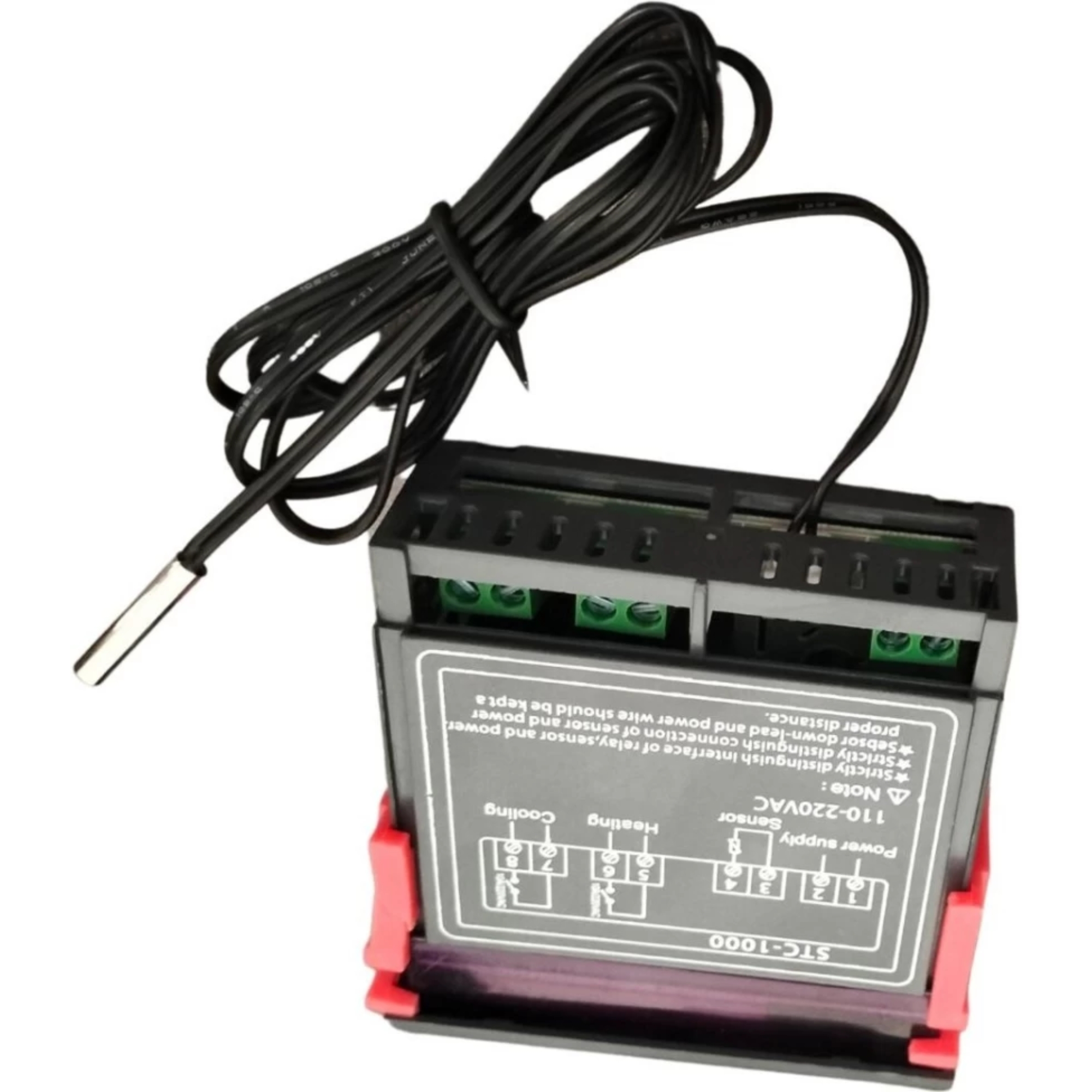

• Sensor length: 1m (include the probe)
• Height (mm): 75
• Length (mm): 34.5
• Width (mm): 85
• Weight (gm): 100

Package includes:

• 1 x 220V Mini Digital Temperature Controller
• 1 x Temperature sensor probe with cable
