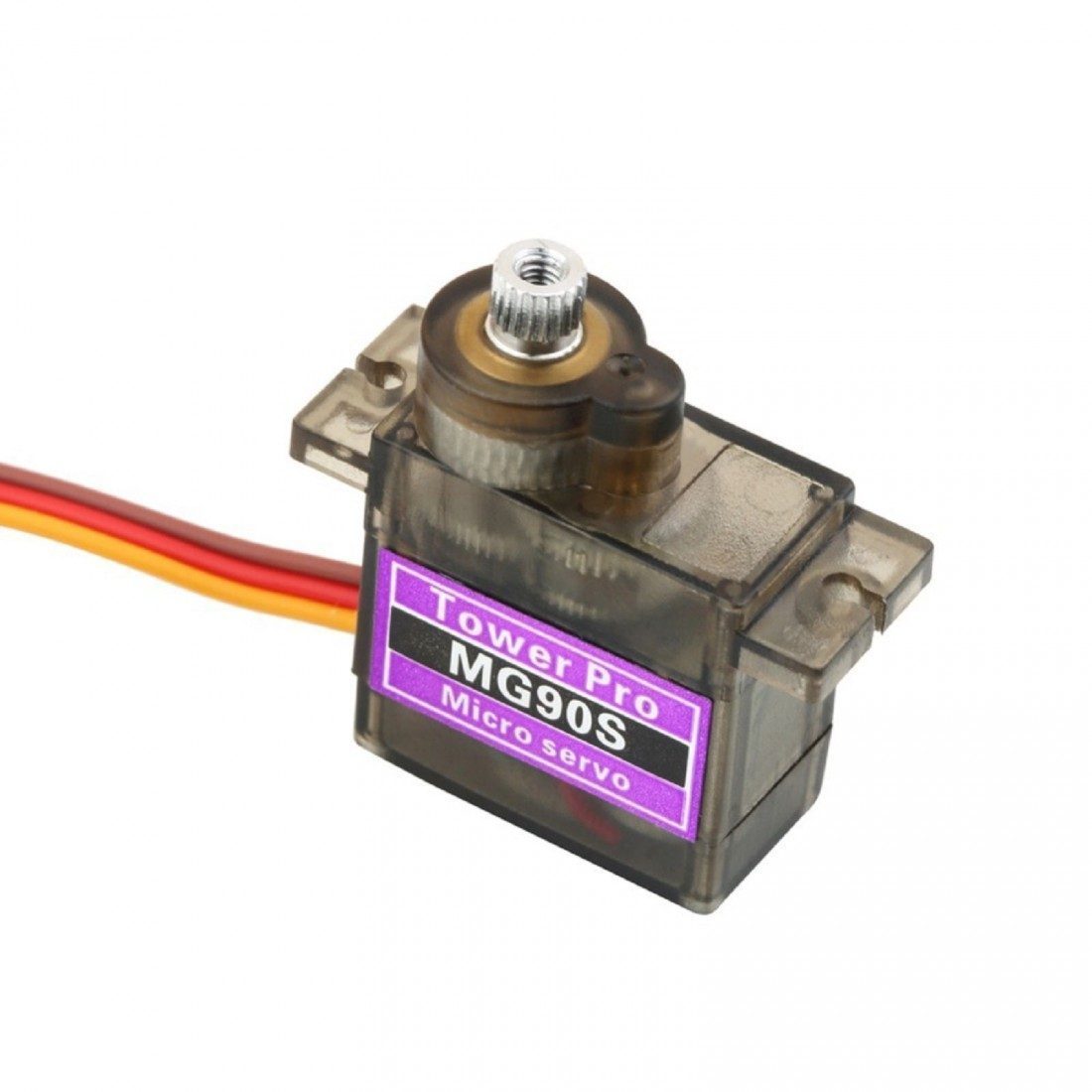

TowerPro MG90S Mini Digital Metal Gear Servo Motor 180 Degree

The TowerPro MG90S Mini Digital Metal Gear Servo Motor 180 Degree is 90° rotation servo in each direction. It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.

TowerPro MG90S is a tiny and light weight small servo with high output power making it perfect for RC Plane, helicopter, Quadcopter or Robot. This mini servo motor has metal gears, for added strength and durability.

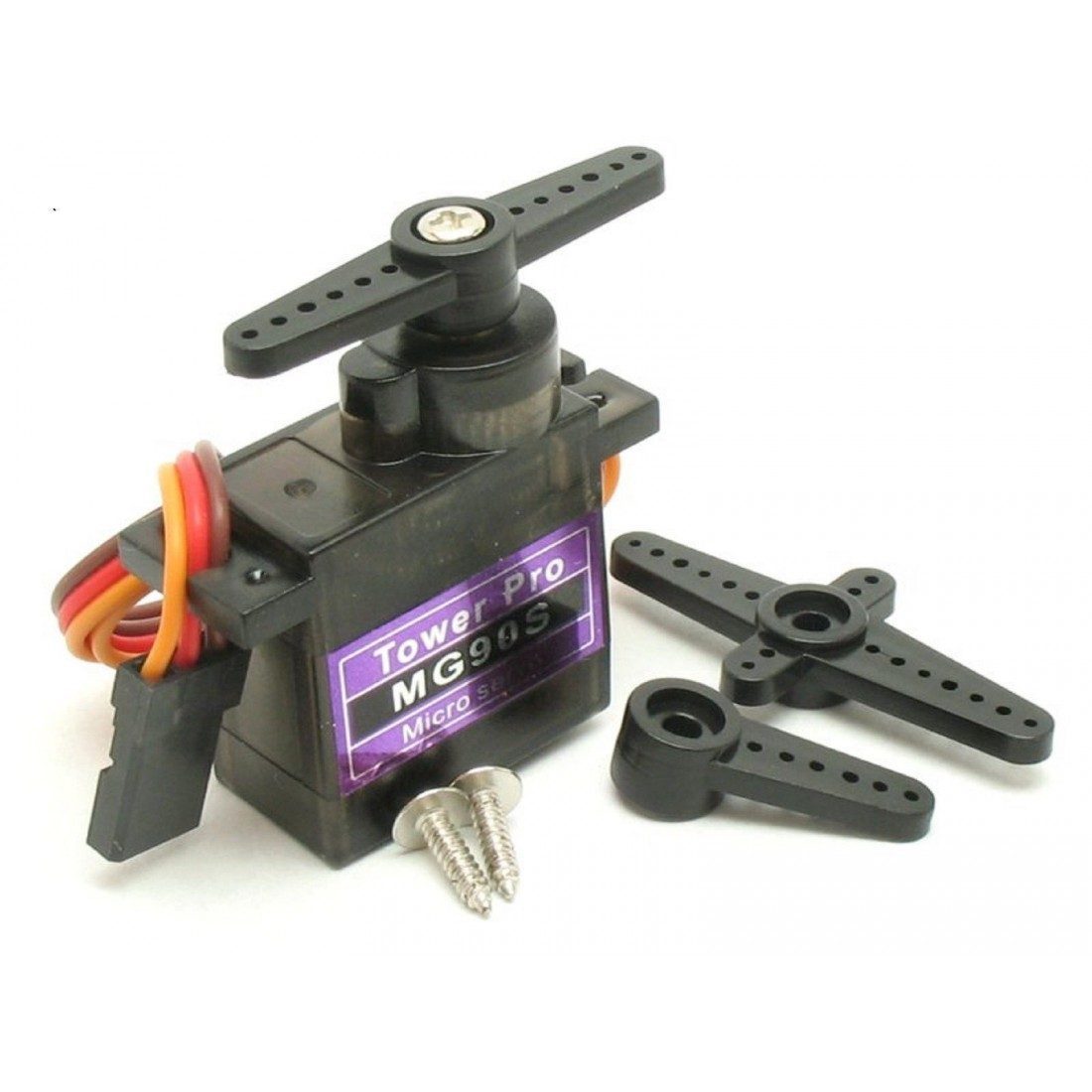

Servo can rotate approximately 180 degrees (90 in each direction), and works just like the standard kinds but smaller. You can use any servo code, hardware or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gear box,  especially since it will fit in small places. It comes with a 3 horns(arms) and hardware.

The good optimized performance and reliability of our servos have made them the favorite choice of many RC hobbyists.

Features :

• High resolution
• Accurate positioning
• Fast control response
• Constant torque throughout the servo travel range
• Excellent holding power

Specification:

• Model: MG90S
• Weight(gm): 13
• Operating Voltage: 4.8-6.6 V
• Operating Speed @4.8V: 0.10sec/60°
• Operating Speed @6.6V: 0.08sec/60°
• Stall Torque @4.8V: 1.8 kg-cm
• Stall Torque @6.6V: 2.2 kg-cm
• Operating Temperature (°C): 0-55
• Dead Band Width: 1 μs
• Rotational Degree: 180º
• Servo Plug: JR
• Cable Length: 25 mm
• Length (mm): 12.4
• Width (mm): 22.8
• Height (mm): 32.5

Package Included:

• 1 x TowerPro MG90S Servo Motor 180 Degree
