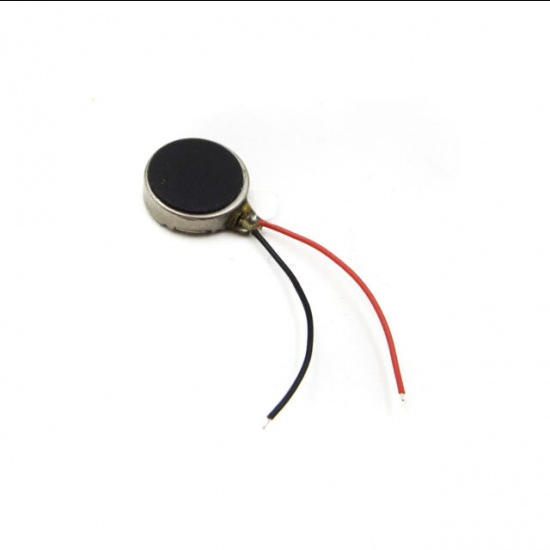

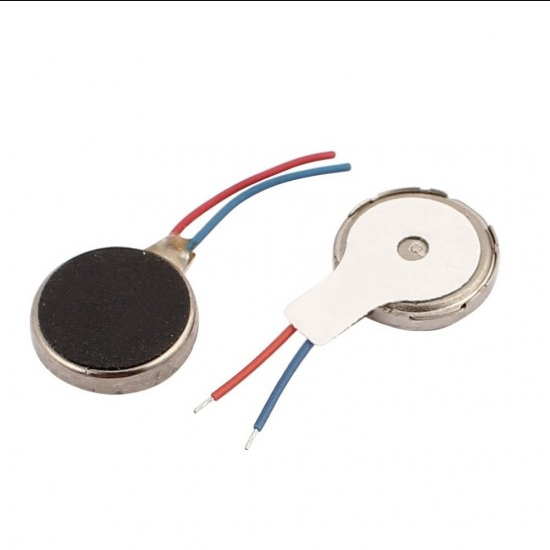

10mm Flat 1034 Mobile Phone Vibrator Motor
10mm Diameter 1034 Flat Button Type Cell Phone Vibration Motor 1pcs
This Flat Button Type Cell Phone Vibration Motor is a shaftless vibration motor is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 3.4 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project.
The motor has a 3M adhesive backing on it for easy mounting and 1.5″ leads for making quick connections. Polarity is not important; the motor can run CW or CCW.
This tiny, button-type, vibrating motor shakes with a vibration amplitude of 0.75g and draws approximately 60 mA when 3 V is applied to its leads.
Specification:
| Type | Micro Motor |
| Rated Voltage(V) | 3 |
| Operating Voltage(VDC) | 3 to 4.5 |
| Operating Temperature (°C) | -20 to 60 |
| Min. Rated Speed(RPM) | 9000 |
| Max. Rated Current(mA) | 60 |
| Max. Starting Current(mA) | 120 |
| Cable Length | 20 mm |
| Construction | Permanent Magnet |
| Size | About 10*3mm |
Package Includes:
- 1 x 10 mm Diameter 1034 Flat Button Type 3V-4.5V CellPhone Vibration Motor
