N20-6V-200 RPM Micro Metal Gear-box DC Motor

Micro Geared Motor

N20-6V-200 RPM Micro Metal Gear-box DC Motor

star star star star star

0 rating

Just for you!

SKU: Anil702

MRP: Rs. 349.70

Rs. 279.00 (Incl. Tax)

Save Rs. 70.70 (20% off)

Rs. 251.10 / pack of 1 = Rs. 251.10 per piece

Pay later available

on orders above ₹300

View options

Quantity

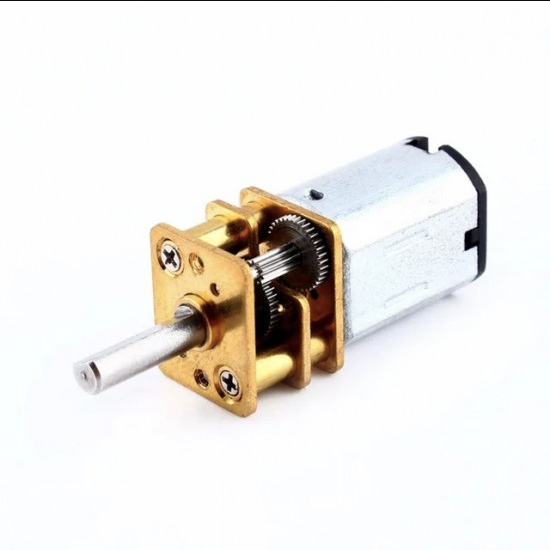

N20-6V-200 RPM Micro Metal Gear-box DC Motor

This N20-6V-200 Rpm Micro Metal Gear Motor has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.

The N20 Micro Gear 6V 200 RPM DC Motor is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.

Features :

This is a DC Mini Metal Gear Motor, ideal for making robots
Lightweight, high torque and low RPM.
Fine craftsmanship, durable, not easy to wear.
With excellent stall characteristics, can climb hills easily.
You can also easily mount a wheel on the motor’s output shaft.

Specifications:

Model No.	N20-6V-200
Operating Voltage (VDC)	3 ~ 6
No Load Current (mA)	0.04 A
Stall Current (A)	0.67
Rated Torque(kg-cm)	0.4
Stall Torque(Kg-Cm)	1.2
Motor Body Size (Diameter) (mm)	12
Rated Operating Voltage (VDC)	6
No load Speed (RPM)	200
Rated Speed (RPM)	200
Shaft Type	D-type Single Side
Shaft Diameter (mm)	3
Weight (gm)	12
Output Axial Length (mm)	10
Fuselage w/o Shaft Length	26
Screw Size	M3
