N20 12V 300RPM Micro Metal Gear Motor
N20 12V 300RPM Micro Metal Gear Motor

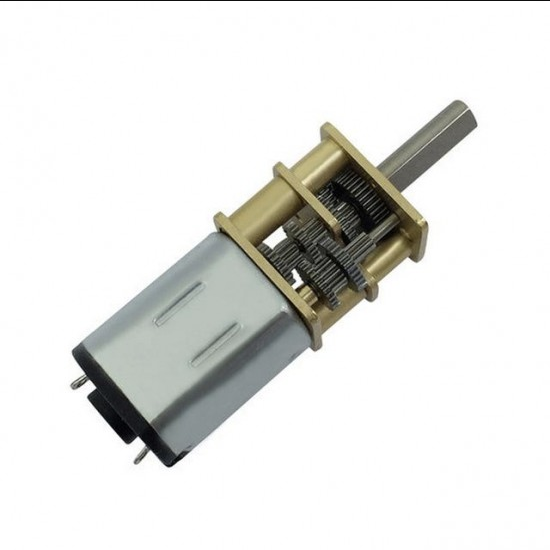

The N20 Micro Gear 12V 300 RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.
This N20 Micro Gear 300RPM 12 V DC Motor (High Torque) has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
Features:
- Light weight, high torque and low RPM.
- Fine craftsmanship, durable not easy to wear.
- With excellent stall characteristics can climb hills easily.
- You can also easily mount a wheel on the motor's output shaft.
- Small volume, torsion big, all metal gear, durable, not easy to wear.
- Great replacement for the rusty or damaged DC geared speed reduces motor on the machine.
- Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
Specification:
| Operating Voltage Range | 6 to 12V |
| Rated Operating Voltage | 12V |
| Rated RPM | 300 |
| No load Speed | 300 RPM |
| No Load Current | 0.06 A |
| Stall Current | 0.75 A |
| Rated Torque(kg-cm) | 0.4 |
| Stall Torque(Kg-Cm) | 1.2 |
| Motor Body Size (Diameter) (mm) | 12 |
| Shaft Diameter (mm) | 3 |
| Shaft Type | D-type Single Side |
| Motor Type | Single Shaft |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
| Weight (gm) | 12 |
Package Included:
- 1x N20 12V 300RPM Micro Metal Gear Motor
