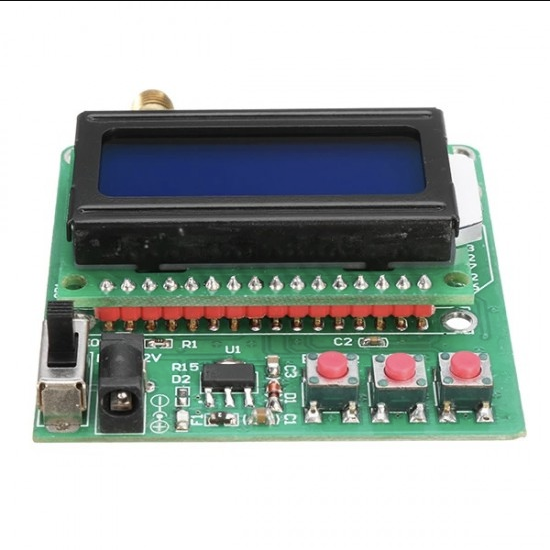

Digital Radio Frequency Power Meter -75~+16dBm Power Attenuation Can Be Set Ultra Small LCD

Technical Data Sheet:

1. Measurement power range: -75 ~ +16 dBm (external RF attenuator can be extended to 100dBm)
2. Measurement power resolution: 0.1 dBm
3. Measurement frequency range: 1 ~ 600 MHz
4. Output interface: SMA_K
5. Operating voltage: 6 ~ 12 VDC
6. Operating current: <45 mA (backlight on)
7. Working temperature: -40 ℃ ~ 65 ℃
8. Storage temperature: -40 ℃ ~ 65 ℃
9. Size: 57 * 58 * 14 mm (length * width * height)

 Interface display and operating instructions:

 1. Main display, the first line display shows the RF Power Meter

                         The second line shows the P:power dBm; AT: attenuation dB

  The main menu is measurement results, can not be adjusted.

 2. Function menu

   A. Attenuation setting menu,the first line shows Attenuation Menu

                                               The second line shows ATTN: XXdB

   Enter the menu function key: Long press ENTER and press again exit, ADD SUB to execute +, - operation

   B. internal compensation set, the first line is ADC Offset Menu

                                                 The second line is Offset: +/- xx

   Enter the menu function key: press ADD+SUB and ENTER at the same time to exit, ADD SUB to execute +, - operation

   C. automatic back lighting function: when it is no back-light, press any key to open the back-light

 Package includes:

•  1 x Digital Radio Frequency Power Meter
