12V 300mA AC-DC Power Supply Module
memory Technical Parameters & Datasheet Summary

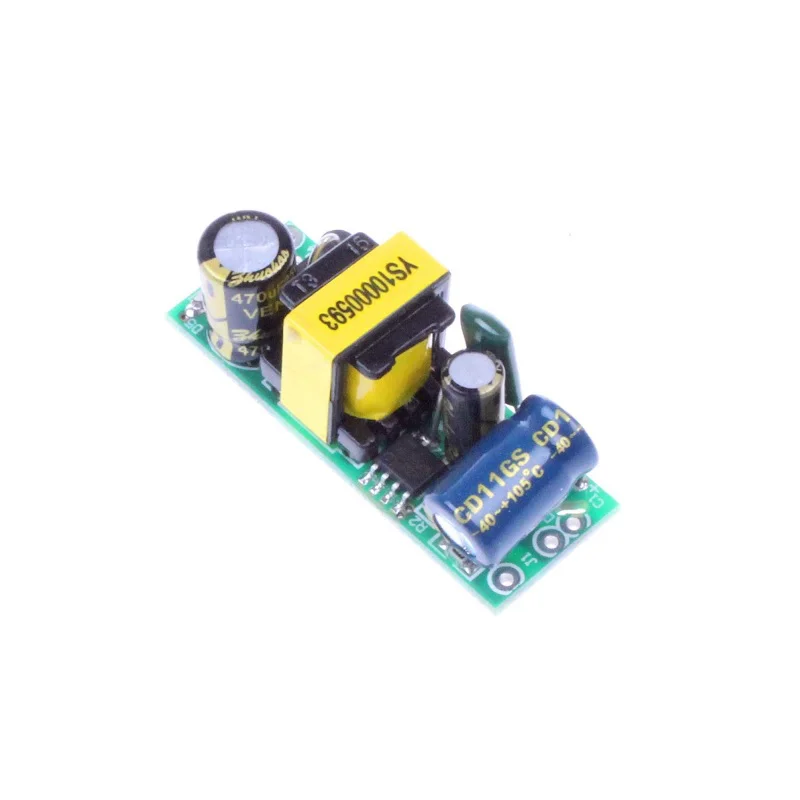

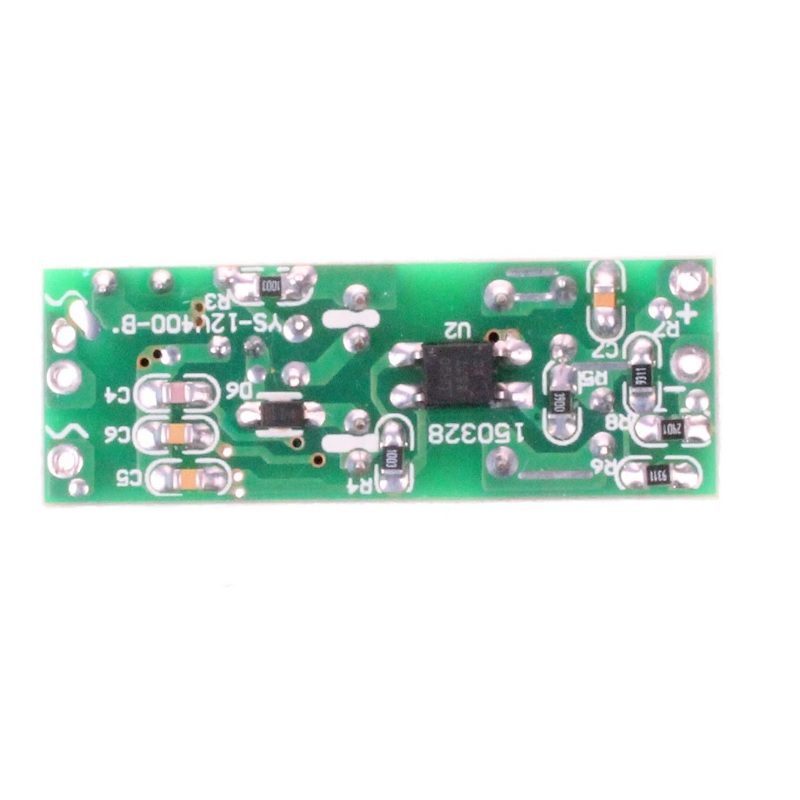

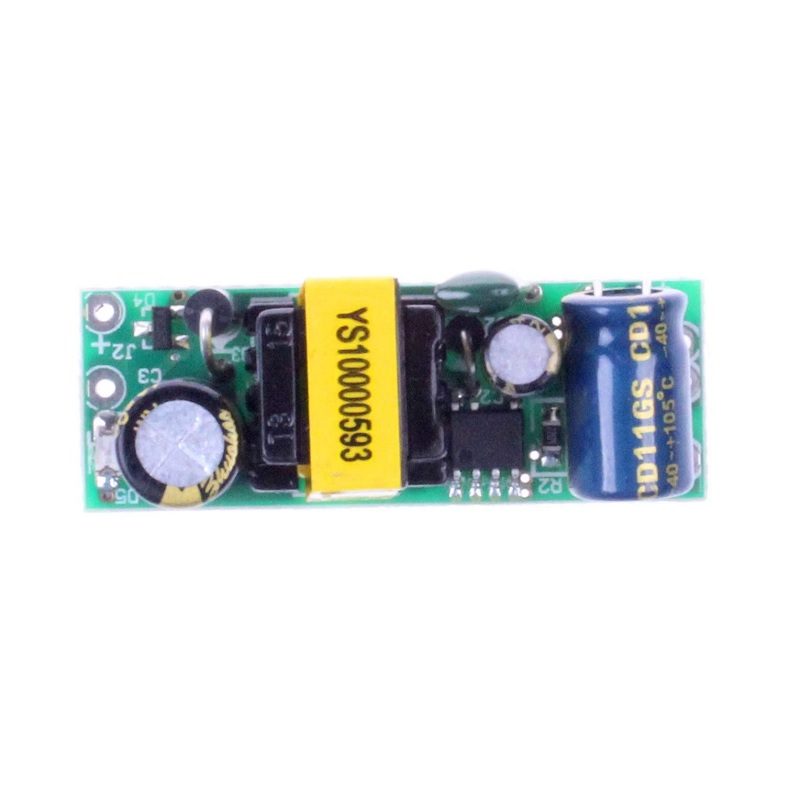

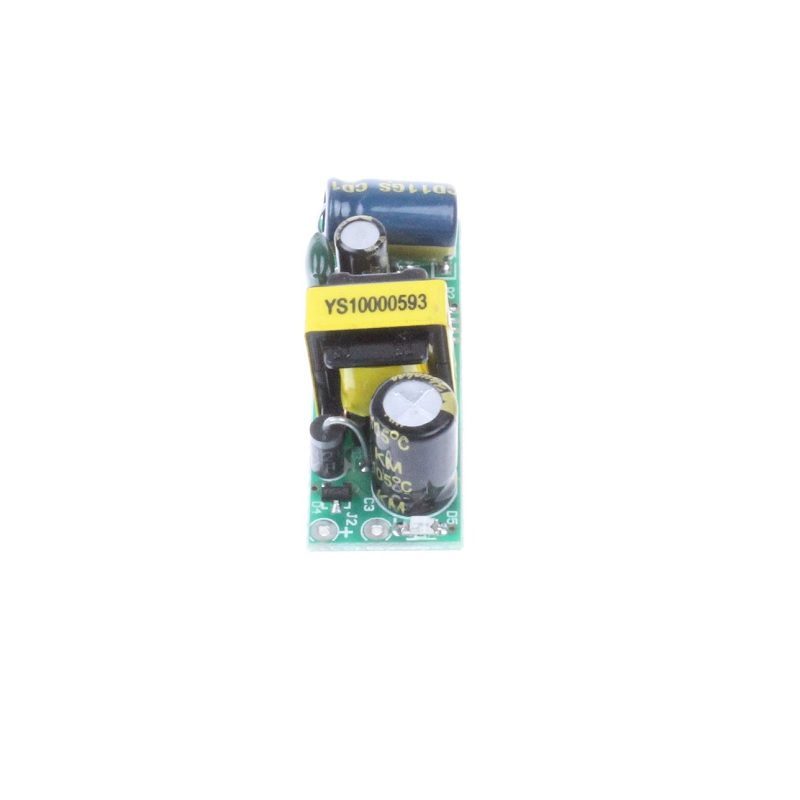

SKU: ANIL1911This is a 12V 300mA AC-DC Power Supply Module which can provide a current of 300mA to drive the LED strip. The module is small in size so that it can be easily integrated into any system if necessary. With a power output of Max. 5W this module is an ideal solution for the many led strips. This module is an isolated power supply which means the AC side is totally isolated from the DC side. With the industrial-grade built quality inbuilt short circuit protection and 431 precision voltage stabilizer this module is a cost-effective solution.
Features:
- Wide Input Voltage Range.
- Overload, Short Circuit, Over-Temperature Protection.
- Small Size, High Efficiency.
- Full Load Burn-In Test Protection.
Specifications:
- Input Voltage: 220VAC
- Output Voltage: 12VDC
- Output Current: 300mA
- Output Power: 5W (Max.)
- Length (mm): 41
- Width (mm): 15
- Height (mm): 15
- Weight (gm): 10
Package Includes:
- 1 x 12V 300mA Power Supply Module
