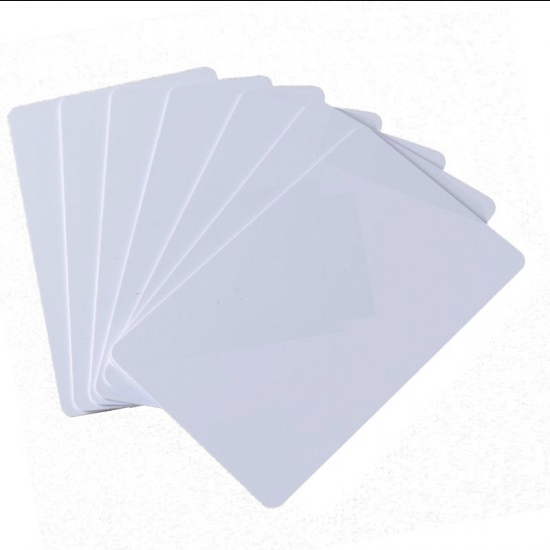

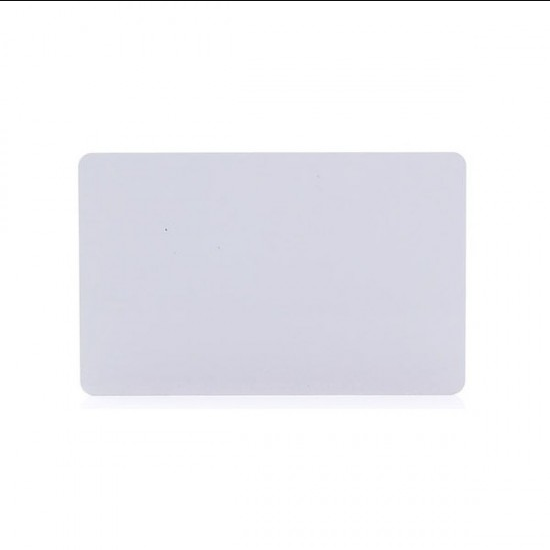

13.56MHz RFID Card – 5 Pcs
memory Technical Parameters & Datasheet Summary
SKU: Anil423RFID 13.56MHz Card use for Contactless transmission of data and supply energy with no battery needed. Its Operating distance is Up to 100mm depending on antenna geometry. Operating frequency is 13.56MHz and Data transfer speed is 106 kbit/s.
It is featured with Data integrity of 16 Bit CRC, parity, bit coding bit counting which allows Anti collision. These cards are typically used in ticketing transaction: <100 ms including backup management
Features:
- Contactless transmission of data and supply energy (no battery needed)
- Operating distance: Up to 100mm (depending on antenna geometry)
- Operating frequency: 13.56MHz
- Data transfer: 106 kbit/s
- Data integrity: 16 Bit CRC, parity, bit coding bit counting
- Anticollision
- Typical ticketing transaction: <100 ms ( including backup management)
- EEPROM
> 1Kbit, organized in 16 sectors, each district two passwords
> User definable access conditions for each memory block
> Data retention of 10 years.
> Write endurance 100 000 cycles
- Security
> Individual key set per sector (per application) to support multi-application with key hierarchy
> A unique serial number for each device
> Transport key protects access to EEPROM on-chip delivery
Specifications:
| Material | PVC |
| Operating Distance | Up to 100mm (depending on antenna geometry) |
| Operating Frequency | 13.56MHz |
| Data Transfer | 106 kbit/s |
| Data Integrity | 16 Bit |
| Typical Ticketing Transaction | <100 ms |
| Data Storage Time | minimum 10 years |
| Dimensions | 86 x 54mm |
| Thickness | 0.88mm |
| Operating Temperature (°C) | -20 to 60 |
Applications:
- Public transportation
- Access control
- Event Ticketing
- Gaming & identity
Package includes:
- 5 x 13.56MHz RFID Card
