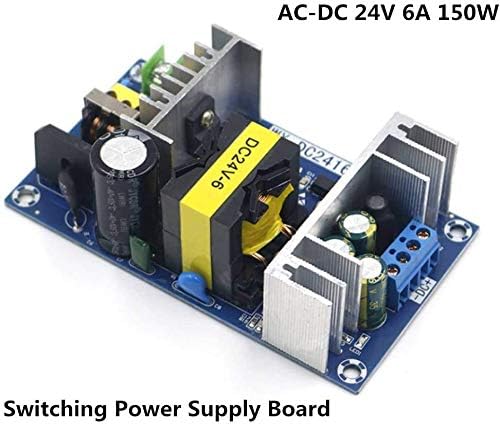

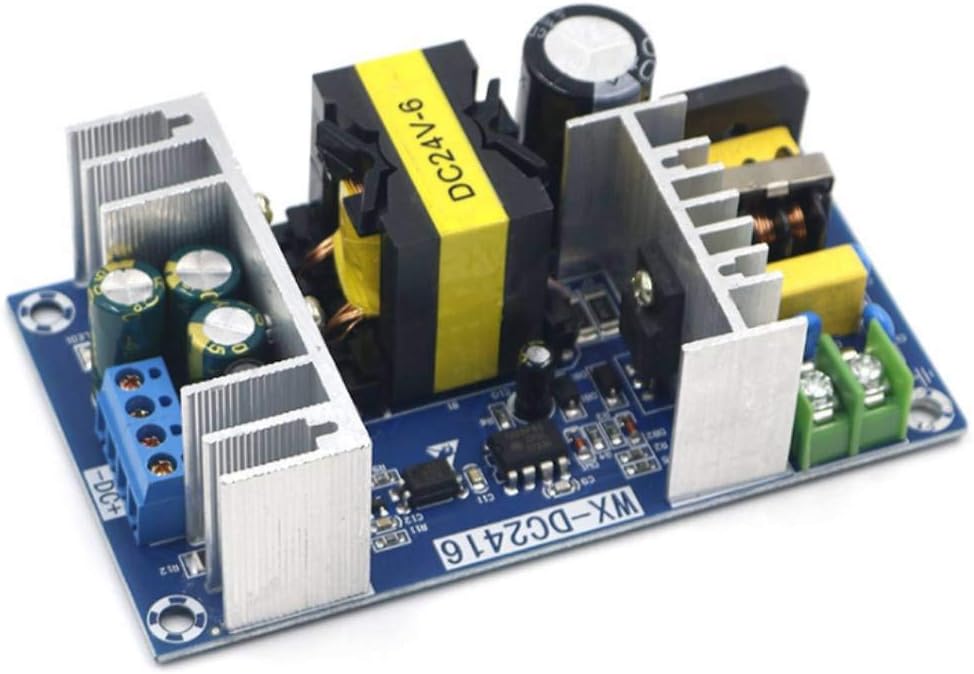

150W AC-DC Buck Converter 100V-240V to 24V 6A-9A Step Down Power Supply Module
This 150W AC-DC Buck Converter 100V-240V to 24V 6A-9A Step Down Power Supply Module adopts double-sided PCB design which guarantees more stable and reliable performance and becomes more suitable for the power supply of industrial control system.
This is an electronic power supply module that incorporates a switching regulator to convert electrical power efficiently. Like many other power supplies, it transfers power from AC100V~240V(50HZ/60HZ) source to DC 24V.
Switching regulators are used as replacements for linear regulators when higher efficiency, smaller size or lighter weight are required. It supports over voltage protection, over current protection and short circuit protection. Designed with two heat sinks for better heat dissipation.
Features :
- High efficiency and low ripple.
- Maximum output 6A to 9A.

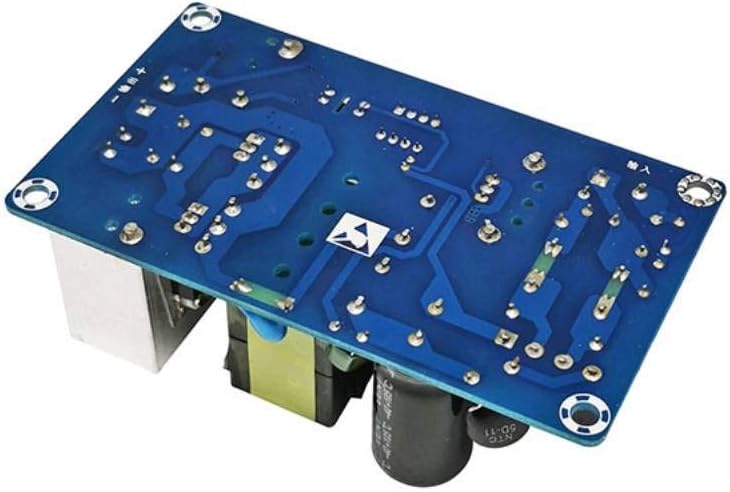

- Dual-side plate design.
- Easy to use handy Module.
Specifications:
- Input AC Voltage(V): 100 to 240
- Input Frequency (Hz): 50
- Output Voltage(V): 24
- Max. Output Current (A): 6 to 9
- Overload Protection: Yes
- Output Power (Watt): 150
- Max. Output Power (Watt): 220
- Over Current Protection: Yes
- Short Circuit Protection: Yes

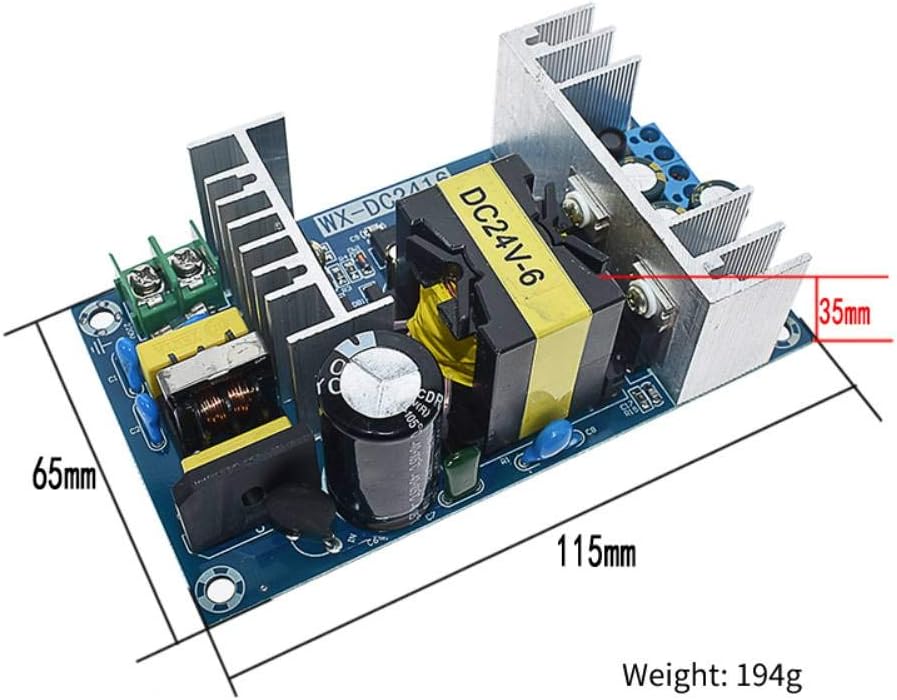

- Mounting Hole Pitch: 10.5 cm and 5.5 cm
- Length (mm): 115
- Width (mm): 65
- Height (mm): 36
- Weight (gm): 200
Package Includes :
- 1 x 150W AC to DC Converter 100V-240V to 24V 6A-9A
