E3JK-5DM1 Infrared Beam Photoelectric Sensor 5M DC 12-24V

The E3JK-5DM1 Infrared Beam Photoelectric Sensor is a reliable industrial-grade detection solution designed for accurate object sensing up to 5 meters. Using a through-beam infrared sensing principle, it delivers stable performance even in dusty or high-light environments.

Operating on a wide DC 12–24V power range, this sensor is ideal for automation systems, conveyor lines, counting applications, safety detection, and industrial control panels. The separate transmitter and receiver ensure high detection accuracy and minimal false triggering.

Built with a rugged housing and easy mounting design, the E3JK-5DM1 is widely used in factories, packaging machines, CNC machines, robotics, and smart manufacturing setups.

Features:

• Through-beam infrared sensing for high accuracy
• Long detection distance up to 5 meters
• Wide operating voltage DC 12–24V
• Strong resistance to ambient light interference
• Fast response time for high-speed detection
• Stable and reliable industrial performance
• Easy installation with adjustable mounting bracket

Specifications:

• Model: E3JK-5DM1
• Sensing Type: Through-Beam Photoelectric Sensor
• Detection Distance: Up to 5 meters
• Light Source: Infrared LED
• Operating Voltage: DC 12–24V
• Output Type: NPN (Open Collector)
• Response Time: ≤ 2 ms
• Housing Material: Industrial Plastic
• Mounting: Adjustable Bracket Mount
• Cable Length: Approx. 2 meters

Applications:

• Industrial automation systems
• Conveyor belt object detection
• Counting and sorting machines
• Packaging and bottling lines
• CNC and robotic machines
• Security and safety detection systems
• Smart factory & PLC-based projects

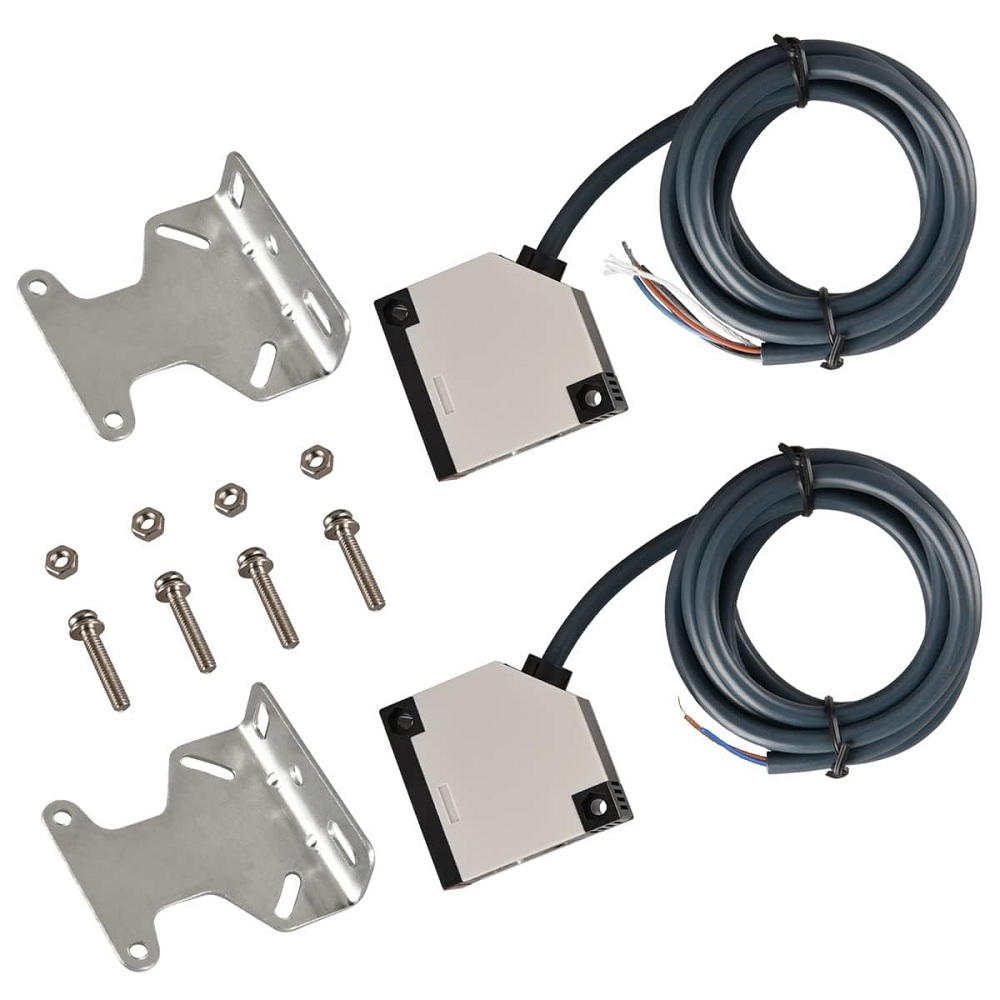

Package Includes:

• 1 × E3JK-5DM1 Infrared Transmitter Unit
• 1 × E3JK-5DM1 Infrared Receiver Unit
• 2 × Mounting Brackets
• Connecting Cables (pre-attached)
