HC-SR505 Mini Infrared PIR Motion Detector Sensor Module

Name: HC-SR505 Mini Infrared PIR Motion Detector Sensor Module
Brand: Generic / Other
SKU: Anil332-2
Price: 139.00 INR
Availability: InStock

grade Be the first to review

SKU: Anil332-2 content_copy

Brand: Generic / Other

MRP: ₹167.70 Save ₹28.70 (17% OFF)

₹139.00 (Incl. 18.00% GST) Excl. GST: ₹117.80

In Stock (5 units ready to dispatch from Ahmedabad Hub)

receipt_long GST Invoice with ITC Claim

inventory Wholesale & Volume Pricing Click tier to auto-select

1 – 4 pcs

₹139.00

Regular

5 – 9 pcs

₹132.05

Save 5%

10+ pcs

₹125.10

Save 10%

Qty

pin_drop Check Delivery & Shipping SLA Free Shipping > ₹2,000

local_shipping

Dispatches in 24h

From Ahmedabad Hub

verified

100% Genuine Part

Tested & Quality Checked

receipt_long

GST B2B Invoice

Input Tax Credit Eligible

support_agent

7-Day Support

Easy Defect Replacement

chat Need Technical Help? Chat on WhatsApp

memory Technical Parameters & Datasheet Summary

SKU: Anil332-2

Component Title HC-SR505 Mini Infrared PIR Motion Detector Sensor Module

Part Number / SKU Anil332-2

Brand / Manufacturer Generic / Other

Category & Taxonomy Distance or Proximity Sensors

Applicable GST Rate 18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)

Packaging Protection Anti-Static Moisture Barrier Shielding Bag (ESD Protected)

Dispatch Hub Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India

Datasheet & Queries? chat Ask an Application Engineer on WhatsApp

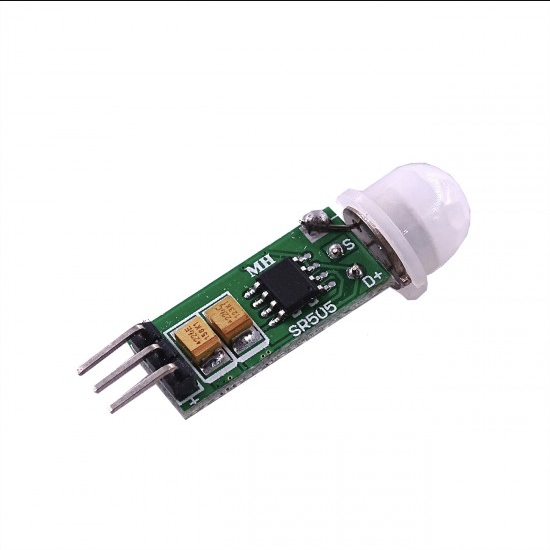

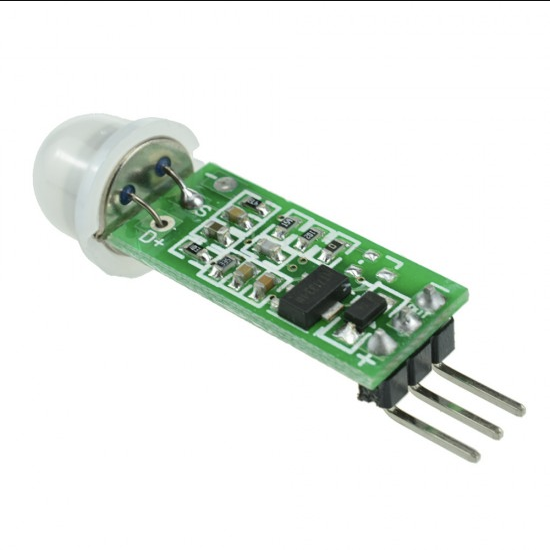

HC-SR505 Mini Infrared PIR Motion Detector Sensor Module

HC-SR505 Mini Infrared PIR Motion Sensor Infrared Detector Module is based on infrared technology, It automatically controls the products with high sensitivity, high reliability, ultra-small size, and ultra-low-voltage operation mode.

It is widely used in various auto-sensing of electrical equipment, especially battery-powered automatic control products.

Features :

Low-power consumption
Output level: High 3.3V / Low 0V
Trigger: repeatable trigger (default)
Automatic induction: to enter the sensing range of the output is high, people leave the sensor range automatically delay off high, output low. Ultra-small size.
Repeatable trigger: the sensor output high, the delay period, if there is human activity in its sensing range, the output will remain high until people leave after the high variable delay Low (automatically extended sensor module detects the human body after every activity a delay period, and the last time an event is the starting point of the delay time).
Wide operating voltage range: the default operating voltage DC4.5V-20V.
Micropower: quiescent current <50 microamps, especially for battery-powered automatic control products.
Output high signal: easy docking and all kinds of circuits.

Specifications:

Model	HC-SR505
Operating Voltage Range	DC4.5-20V
Average Current Consumption (mA)	0.06
Distance Measuring Range	3 meters
Dimensions (mm) LxWxH	10 x 23 x 5
Weight (gm)	10
Delay time	Default 8S + -30% (can be customized)
Working Temperature Range	-20°C ~ 80°C
Sensor Lens Diameter:	10mm
Induction angle	<100-degree cone angle
