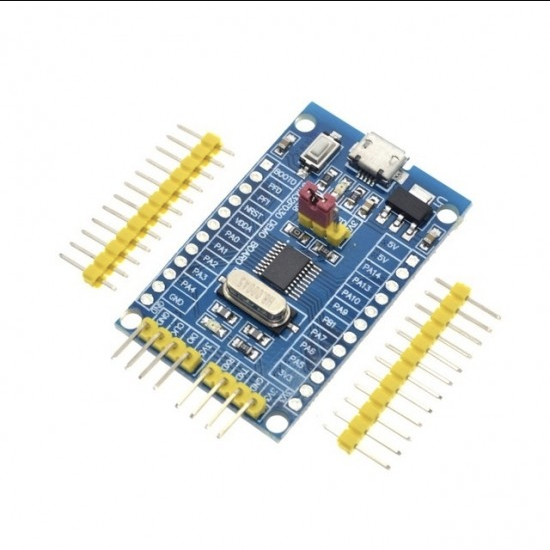

STM32F030F4P6 core board development board core ARM CORTEX-M0

The STM32F030F4P6 core board development board core ARM CORTEX-M0 incorporates the high-performance ARM Cortex™-M0 32- bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 64 Kbytes of Flash memory and up to 8 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (up to two I2Cs, up to two SPIs, and up to two USARTs), one 12-bit ADC, up to 6 general-purpose 16-bit timers and an advanced-control PWM timer.

The STM32F030x microcontroller operates in the -40 to +85 °C temperature range, from a 2.4 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications. The STM32F030x microcontroller includes devices in four different packages ranging from 20 pins to 64 pins. Depending on the device chosen, different sets of peripherals are included. The description below provides an overview of the complete range of STM32F030x peripherals proposed.

These features make the STM32F030x microcontroller suitable for a wide range of applications such as application control and user interfaces, handheld equipment, A/V receivers and digital TV, PC peripherals, gaming platforms, e-bikes, consumer appliances, printers, scanners, alarm systems, video intercoms, and HVACs

Features:

Core: ARM® 32-bit Cortex™-M0 CPU, frequency up to 48 MHz

Memories:

• 16 to 64 Kbytes of Flash memory
• 4 to 8 Kbytes of SRAM with HW parity

Checking:

• CRC calculation unit

Reset and power management

• Voltage range: 2.4 V to 3.6 V
• Power-on/Power down reset (POR/PDR)
• Low power modes: Sleep, Stop, Standby

Clock management

• 4 to 32 MHz crystal oscillator
• 32 kHz oscillator for RTC with calibration
• Internal 8 MHz RC with x6 PLL option
• Internal 40 kHz RC oscillator

Up to 55 fast I/Os

• All mappable on external interrupt vectors
• Up to 36 I/Os with 5 V tolerant capability

5-channel DMA controller

1 x 12-bit, 1.0 μs ADC (up to 16 channels)

• Conversion range: 0 to 3.6 V
• Separate analog supply from 2.4 up to 3.6 V

Up to 10 timers

• One 16-bit 7-channel advanced-control timer for 6 channels PWM output, with deadtime generation and emergency stop
• One 16-bit timer, with up to 4 IC/OC, usable

for IR control decoding

• One 16-bit timer, with 2 IC/OC, 1 OCN, deadtime generation and emergency stop
• Two 16-bit timers, each with IC/OC and

OCN, deadtime generation, emergency stop and modulator gate for IR control

• One 16-bit timer with 1 IC/OC
• One 16-bit basic timer
• Independent and system watchdog timers
• SysTick timer: 24-bit down counter

Calendar RTC with alarm and periodic wake up from Stop/Standby

Communication interfaces

• Up to two I2C interfaces: one supporting

Fast Mode Plus (1 Mbit/s) with 20 mA current sink

• Up to two USARTs supporting master

synchronous SPI and modem control; one with auto baud rate detection

• Up to two SPIs (18 Mbit/s) with 4 to 16

programmable bit frame

Serial wire debug (SWD)

Specifications:

Package Includes:

• 1 x STM32F030F4P6 core board development board core ARM CORTEX-M0
