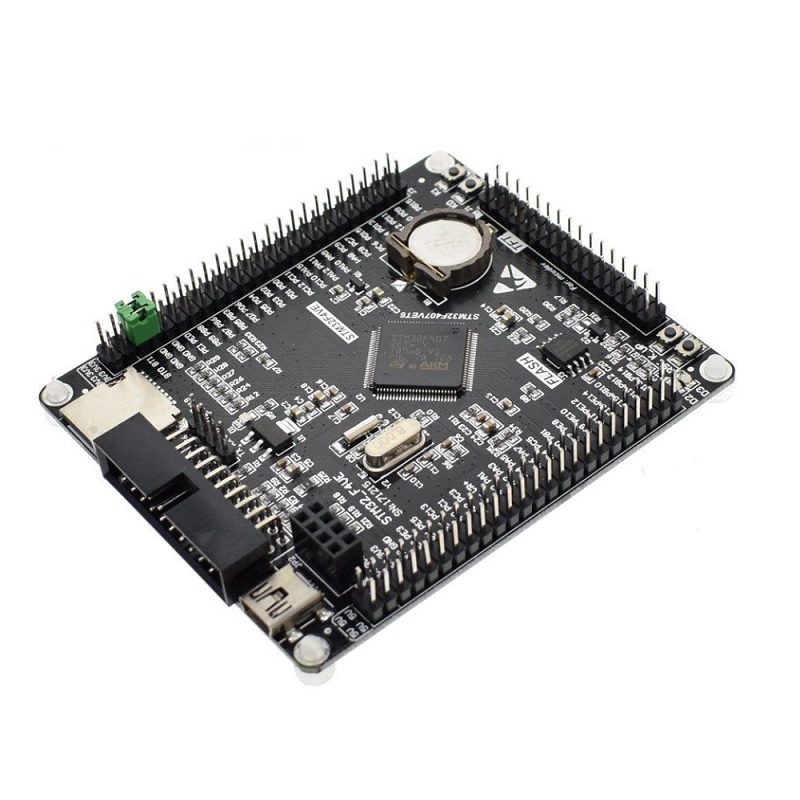

STM32F407VET6 Arm Cortex-M4 core with DSP and FPU

The STM32F405xx and STM32F407xx family is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The STM32F407VET6 Arm Cortex M4 core with DSP and FPU features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

This Arm Board incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix.

All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.

Features:

• Core: Ar  32-bit Cortex-M4 CPU with FPU
• LCD parallel interface, 8080/6800 modes
• Low-power operation
• 3×12-bit, 2.4 MSPS A/D converters
• 2×12-bit D/A converters
• General-purpose DMA
• Up to 17 timers
• Up to 140 I/O ports with interrupt capability

Specifications:

• Model: STM32F407VET6
• Core: ARM 32 Cortex M4 CPU
• Debug Mode: SWD
• Number of I/O: 140
• Memory: 192+4 Kbytes SRAM, 512Kb Flash
• D/A Converters: 2 x 12-bit
• Timer: 17
• Length (mm): 73
• Width (mm): 85
• Height (mm): 15
• Weight (gm): 66

Note : STM32F407VET6 and STM32F407ZGT6 on chip working is same. Battery is included with the board, Suitable Model CR1220.

Package Includes:

• 1 x STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
• 10 x Female-Female Jumper Cable
• 1 x USB Cable
