STMICROELECTRONICS STM32F411E-DISCO – 32-bit ARM Cortex-M4 512Kb Flash STM32F4 Discovery Kit

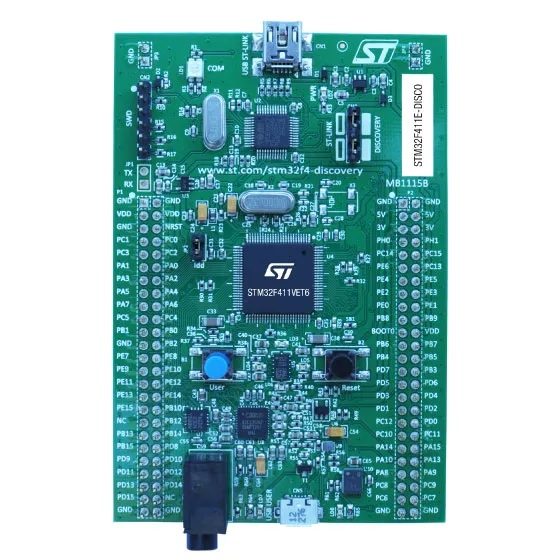

STMICROELECTRONICS STM32F411E-DISCO – 32-bit ARM Cortex-M4 512Kb Flash STM32F4 Discovery Kit is a high performance board with the capability of processing DSP and FPU instruction, the following board leverage the capabilities of the entry level board in STM32F4 line microcontroller, well suited for the beginners and experienced developers. STM32 F411E-DISCO comes with ST-MEMS powered e-compass, gyroscope, one digital microphone and one inbuilt audio DAC with class D speaker driver, an OTG- microUSB-AB connector.

The STM32F4 discovery board explores STM32F411VET6 value line ARM Cortex M4 coupled with 512-Kbyte Flash memory, 128-Kbyte RAM in an LQFP100 package. Based on the STM32F411VET6, it includes an ST-LINK/V2 embedded debug tool, a gyroscope, an e-compass, a digital microphone, an audio DAC with integrated class‑D speaker driver, an OTG Micro-AB connector, LEDs, and push-buttons.

The STM32F411- DISCO board integrate an ST-Link debugger/programmer with a separate selection-mode switch which enables the board to be used as a standalone ST-LINK/V2.

Features:

• STM32F411VET6 microcontroller featuring 512 Kbytes of Flash memory and 128 Kbytes of RAM in an LQFP100 package
• USB OTG FS
• ST MEMS 3-axis digital output gyroscope
• ST MEMS 3D digital linear accelerometer and magnetic sensor
• ST MEMS digital microphone
• Audio DAC with integrated class‑D speaker driver
• Eight LEDs: LD1 (red/green) for USB communication,  LD2 (red) for 3.3 V power on,  Four user LEDs: LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue), Two USB OTG LEDs: LD7 (green) VBUS and LD8 (red) over-current
• Two user and reset push-buttons
• Board connectors: USB OTG FS Micro-AB connector, ST-LINK Mini-B USB connector
• Extension header for all LQFP100 I/Os for quick connection to the prototype board and easy probing
• Flexible power-supply options: ST-LINK USB connector, External 5 V supply voltage
• On-board ST-LINK/V2 debugger/programmer with mode selection switch to use the kit as a standalone ST-LINK probe (featuring an SWD connector for programming and debugging)
• Comprehensive free software including a variety of examples, part of the STM32CubeF4 MCU Package or STSW-STM32136 for legacy Standard Libraries usage
• Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

Package Includes:

• 1 x STM32F411E-DISCO – 32-bit ARM Cortex-M4 512Kb Flash STM32F4 Discovery Kit

Useful Links:

• Discovery Kit with STM32F411E
• STM32F4 Discovery Kit
