BBC MicroBit V2 Go Kit

The all-new BBC MicroBit V2 Go Kit continues to support all of the same features that teachers and students have come to love, and all the existing lessons and code for the original micro:bit will be compatible with the new device.

Designed specifically for kids and beginners, the micro:bit is a pocket-sized computer that you can code, customize and control to bring your digital ideas, games, and apps to life. It’s a small, code-able device that is a non-intimidating introduction to programming and making – switch on, program it to do something fun – wear it, customize it, develop new ideas.

The microcontroller on the micro:bit V2 has been upgraded to nRF52833 with double the memory size to 512KB Flash, and an 8 times larger size of RAM to 128KB.  With the upgrades of the main controller, micro:bit V2 is now Bluetooth 5.1 and also BLE (Bluetooth Low Energy).

Besides the MCU, the co-microcontroller that handles USB connection, KL26Z with 16KB RAM is being upgraded to KL27Z with 32KB of RAM too. micro:bit V2 still comes with an accelerometer, compass, and Bluetooth Smart antenna, as well as a micro USB and two-pin JST connector for different power options. Bbc Micro:bit V2 Go Kit

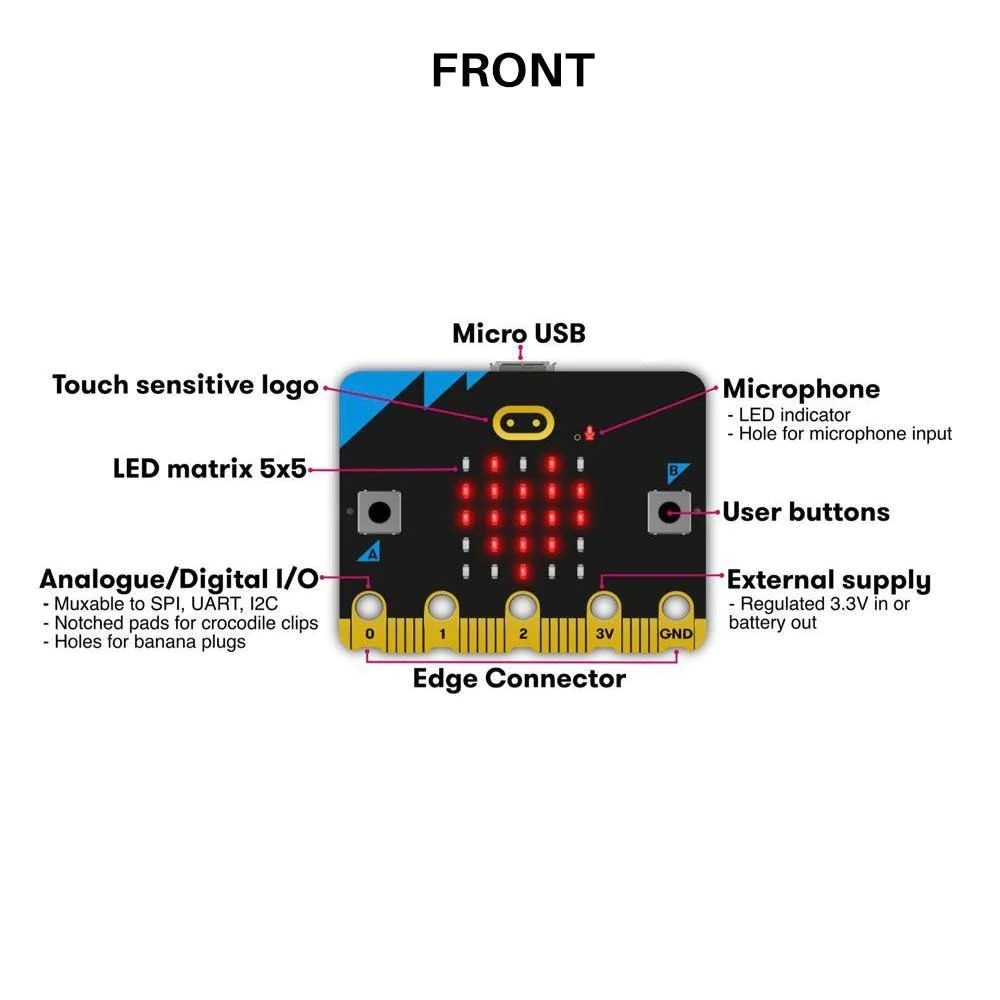

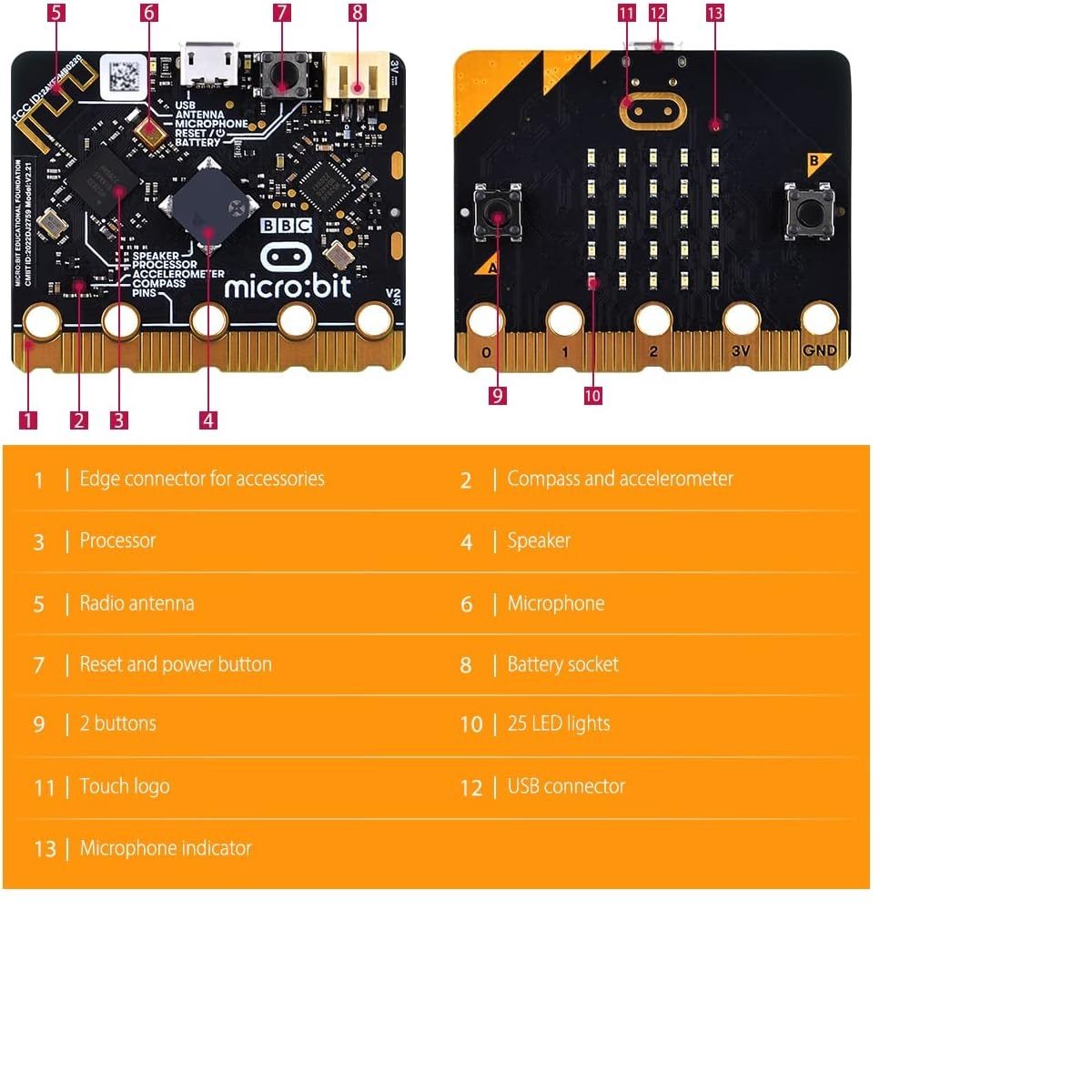

Features:

• 5×5 LED Matrix Display (Red LEDs)
• Two Programmable Buttons
• Touch Sensitive micro:bit logo
• Additional Power Indicator LED and Mic input indicator LED
• Built-in MEMS microphone input
• Onboard Accelerometer, Compass, Light and Temperature Sensors
• Wireless Communication, via Bluetooth 5.1 and BLE and 2.4GHz Radio
• Edge Connectors:
• Total 25 pins: 20 smaller pitch to pitch pins, 5 RINGS Notched Edge pins
• 4 Dedicated GPIO, PWM, I2C, SPI, Power and etc.
• 5 Ring pins for connecting crocodile clips or banana plugs
• 20-pin Edge Connectors, 5 notched edge Connectors
• Dedicated I2C bus for peripherals
• Power Button to power off the MCU
• Micro USB Type-B Connector
• JST-PH Battery Connector (Not JST-XH)
• Reset Button with Status LED
• Available current for external devices: 200mA
• Programming Platform: C++, Make code, Python, Scratch

Specifications:

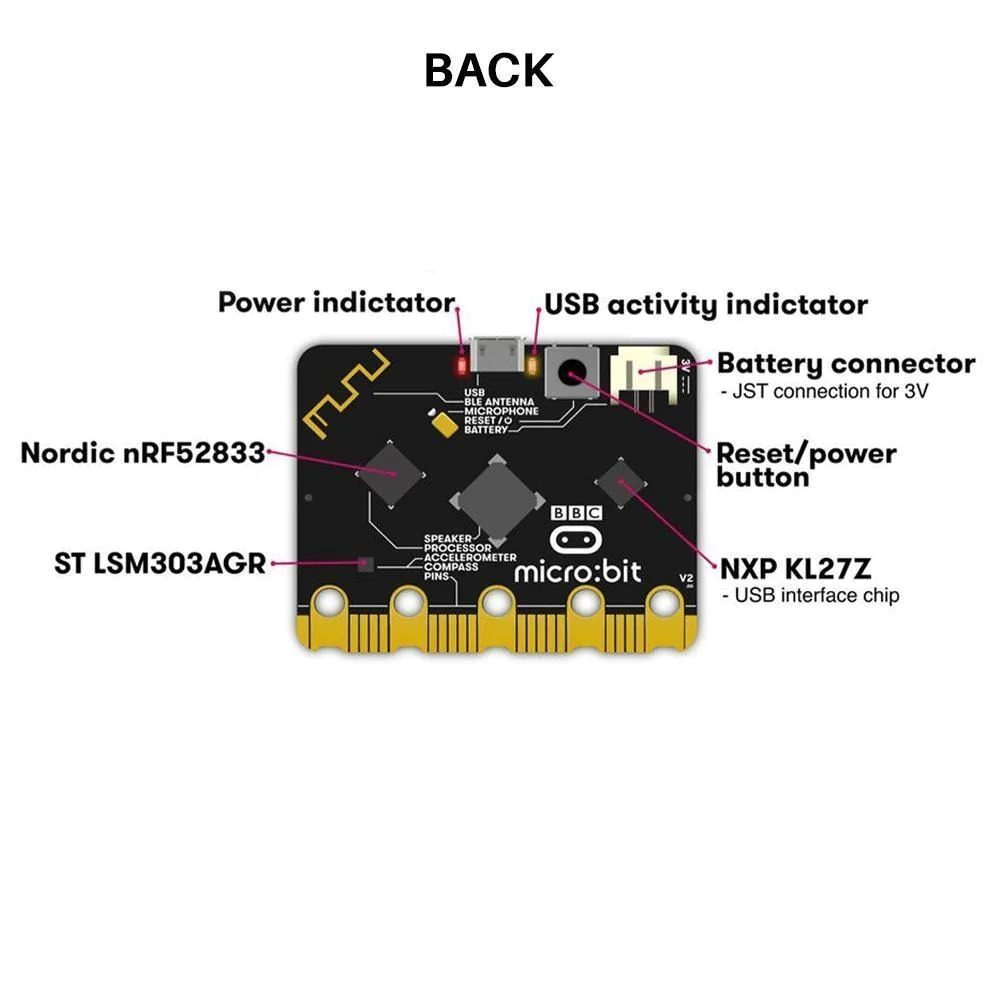

• Processor: Nordic Semiconductor nRF52833
• Memory: 128kB RAM : 512kB Flash
• Interface: 32kB RAM : NXP KL27Z
• Edge Connector: 25 pins. 4 dedicated GPIO, PWM, i2c, SPI, and ext. power
• I2C: Dedicated I2C bus for peripherals
• Wireless: 2.4Ghz Micro:bit Radio/BLE Bluetooth 5.0
• Power: 5V via Micro USB port, 3V via edge connector or battery pack, LED power indicator, Power off (push and hold power button)
• Current Available: 200mA available for accessories
• Motion Sensor: ST LSM303
• Length (mm): 50
• Width (mm): 40
• Height (mm): 10
• Weight (gm): 20

Package Includes:

• 1 x BBC Micro:bit Go V2
• 1 x USB Cable
• 1 x Battery Holder
• 1 x User Guide
• 2 x AAA Batteries
