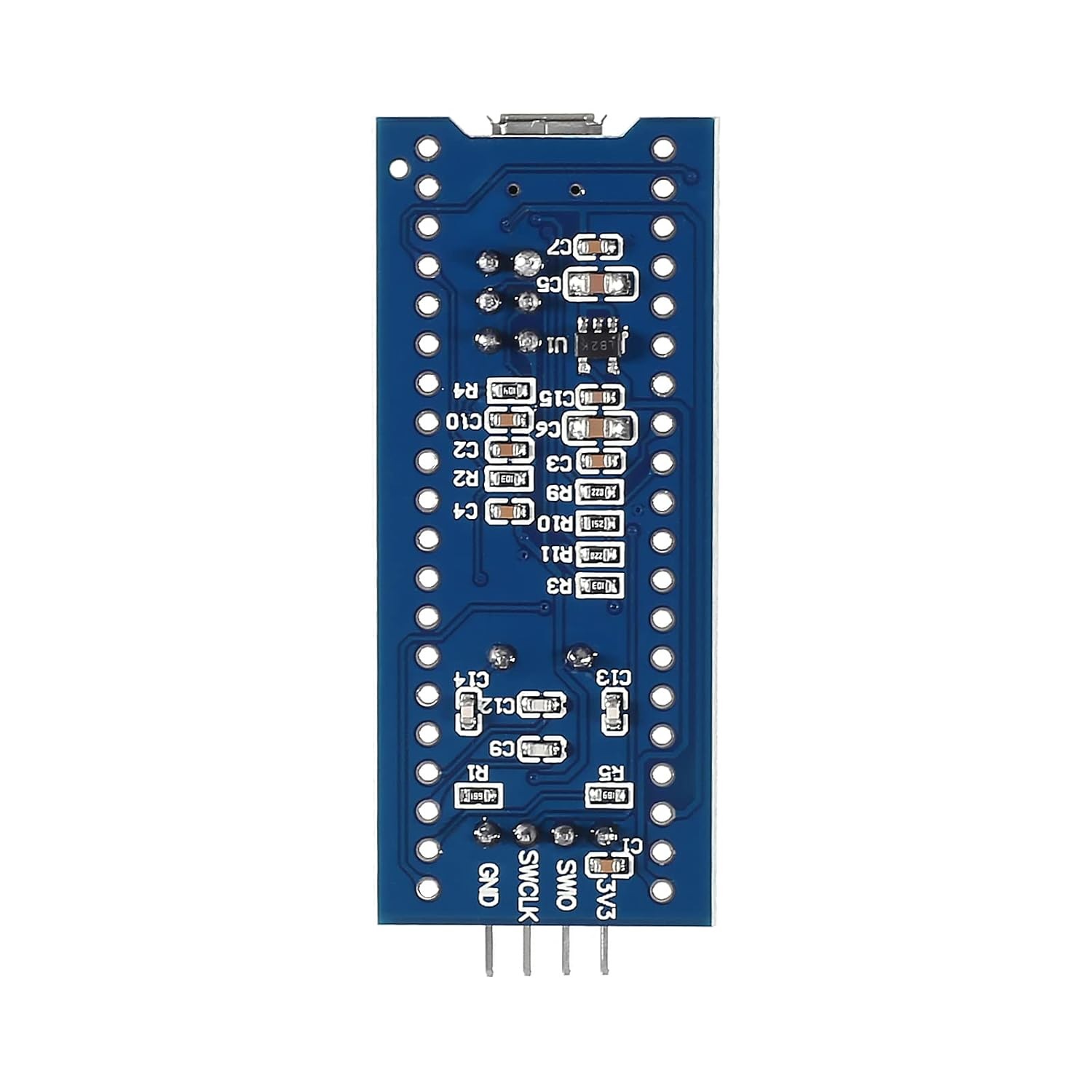

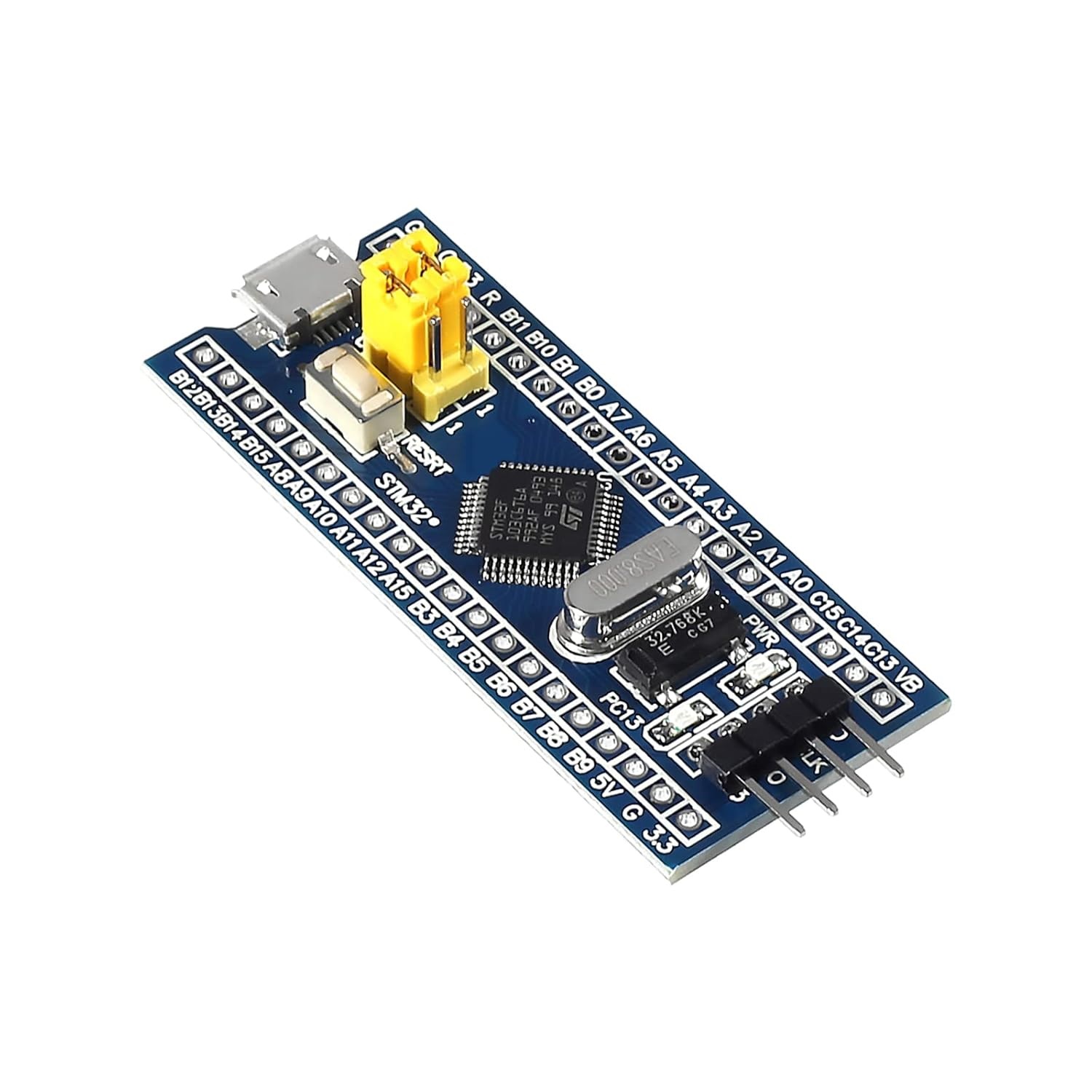

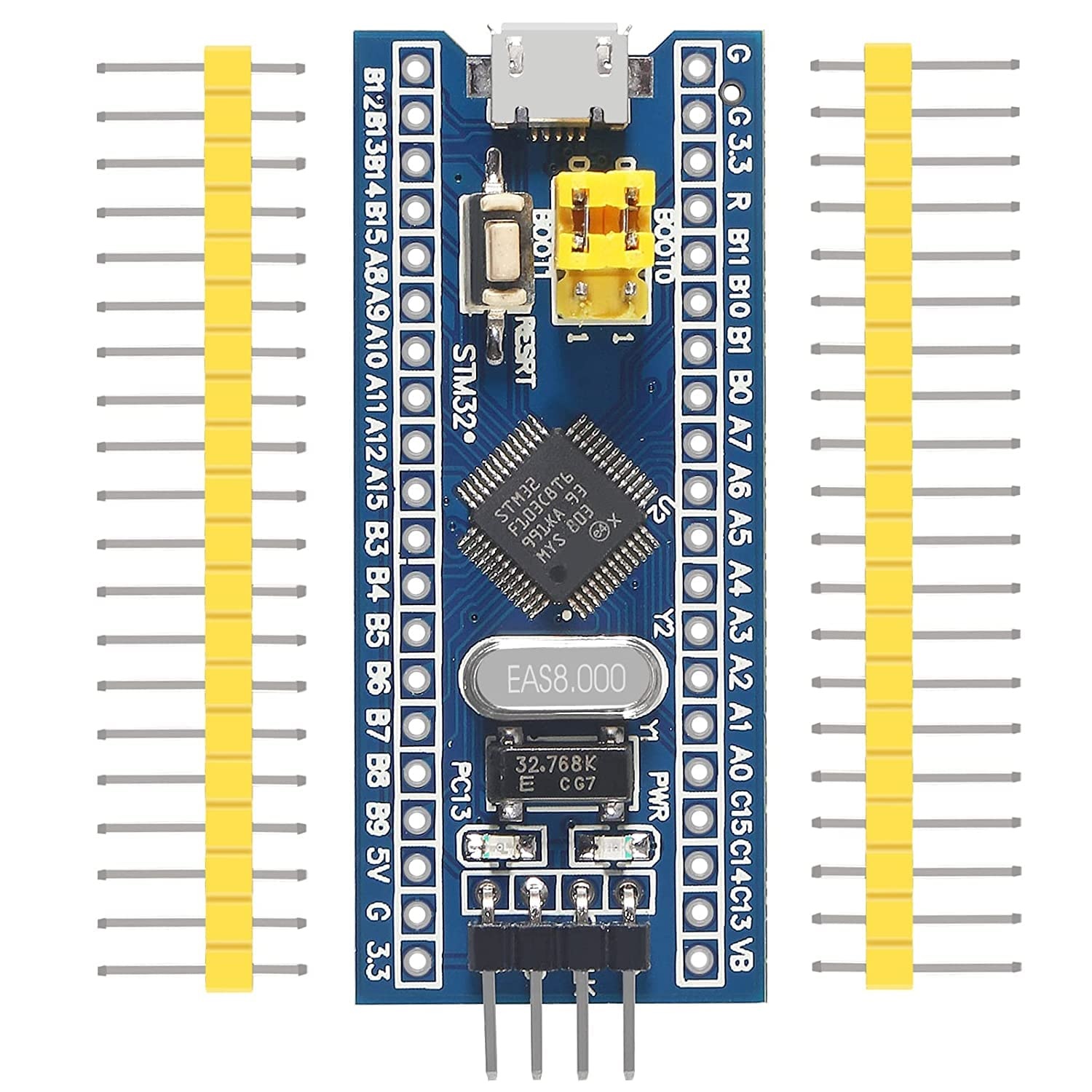

STM32F103C6T6 Development Board STM32 ARM Core Module

The STM32F103C6T6 Development Board STM32 ARM Core Module is a compact and cost-effective microcontroller board based on the STM32 ARM Cortex-M3 core, ideal for hobbyists, engineers, and developers looking to explore STM32 programming and embedded systems. STM32F103C6T6 board offers excellent performance with a 32-bit architecture and operates at a clock speed of up to 72MHz.

It features 64KB Flash, 20KB SRAM, multiple GPIOs, I2C, SPI, USART, PWM, and ADC interfaces — making it perfect for robotics, IoT applications, data logging, automation, and more.

With full support for development environments like STM32CubeIDE, Keil, PlatformIO, and Arduino IDE (via STM32duino), this board is an ideal choice for transitioning from 8-bit to powerful 32-bit microcontroller platforms.

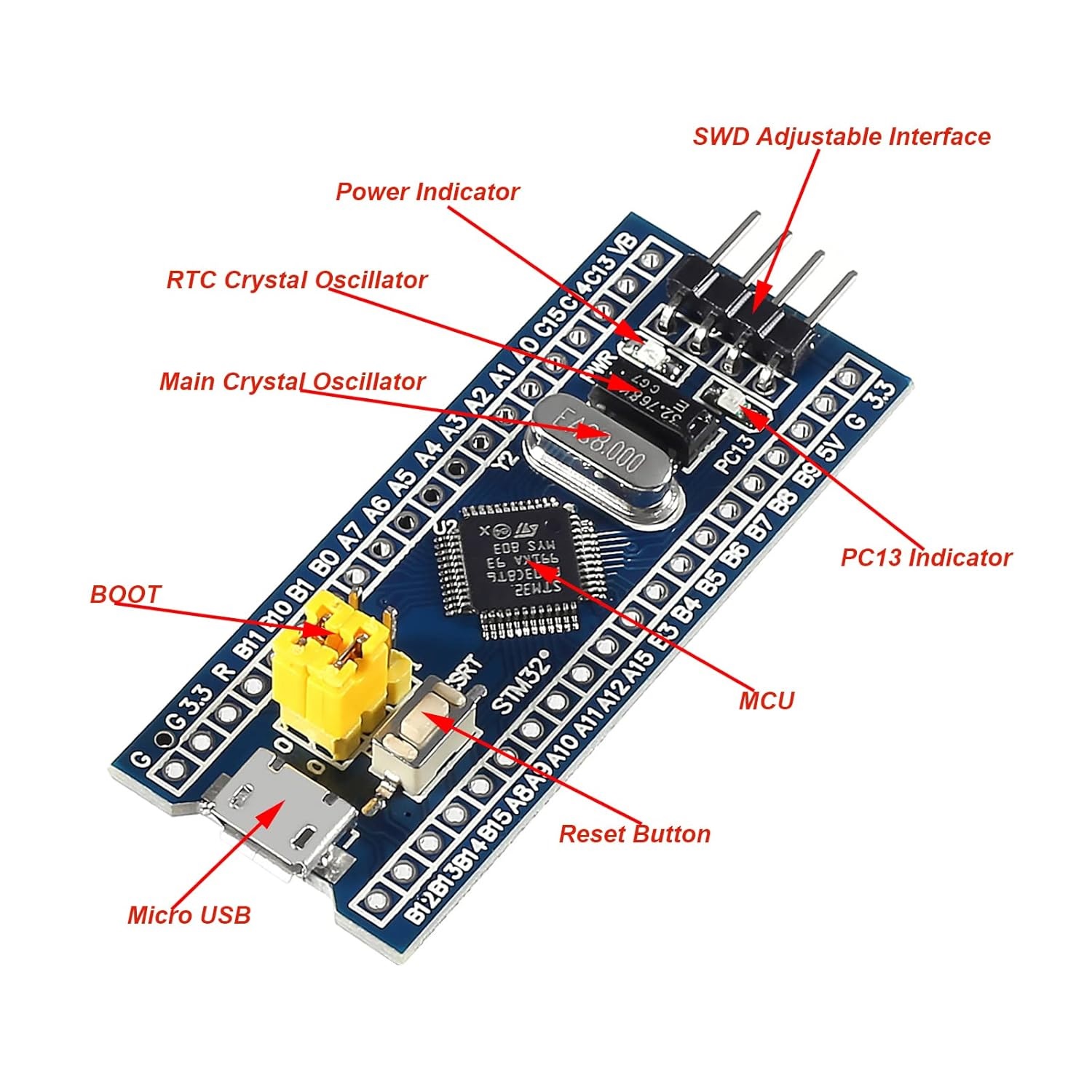

Features:

• Based on STM32F103C8T6 ARM Cortex-M3 MCU
• 72 MHz operating frequency
• 64KB Flash memory, 20KB SRAM
• USB Type-B port for programming and power
• Supports Serial Wire Debug (SWD)
• Rich set of peripherals: GPIO, USART, SPI, I2C, PWM, ADC
• Onboard 8 MHz crystal (main) + 32.768 kHz RTC crystal
• 3.3V logic level with onboard LDO regulator
• Compatible with STM32CubeIDE, Keil, Arduino IDE, and PlatformIO
• Widely used in IoT, automation, robotics, and embedded learning projects

Specifications:

• MCU: STM32F103C8T6 (ARM Cortex-M3)
• Clock Speed: 72 MHz
• Flash Memory: 64 KB
• SRAM: 20 KB
• Operating Voltage: 3.3V (Input 5V via USB)
• GPIO Pins: 37+
• Communication: USART, SPI, I2C, USB
• Programming Interface: USB (DFU) or SWD (ST-Link)

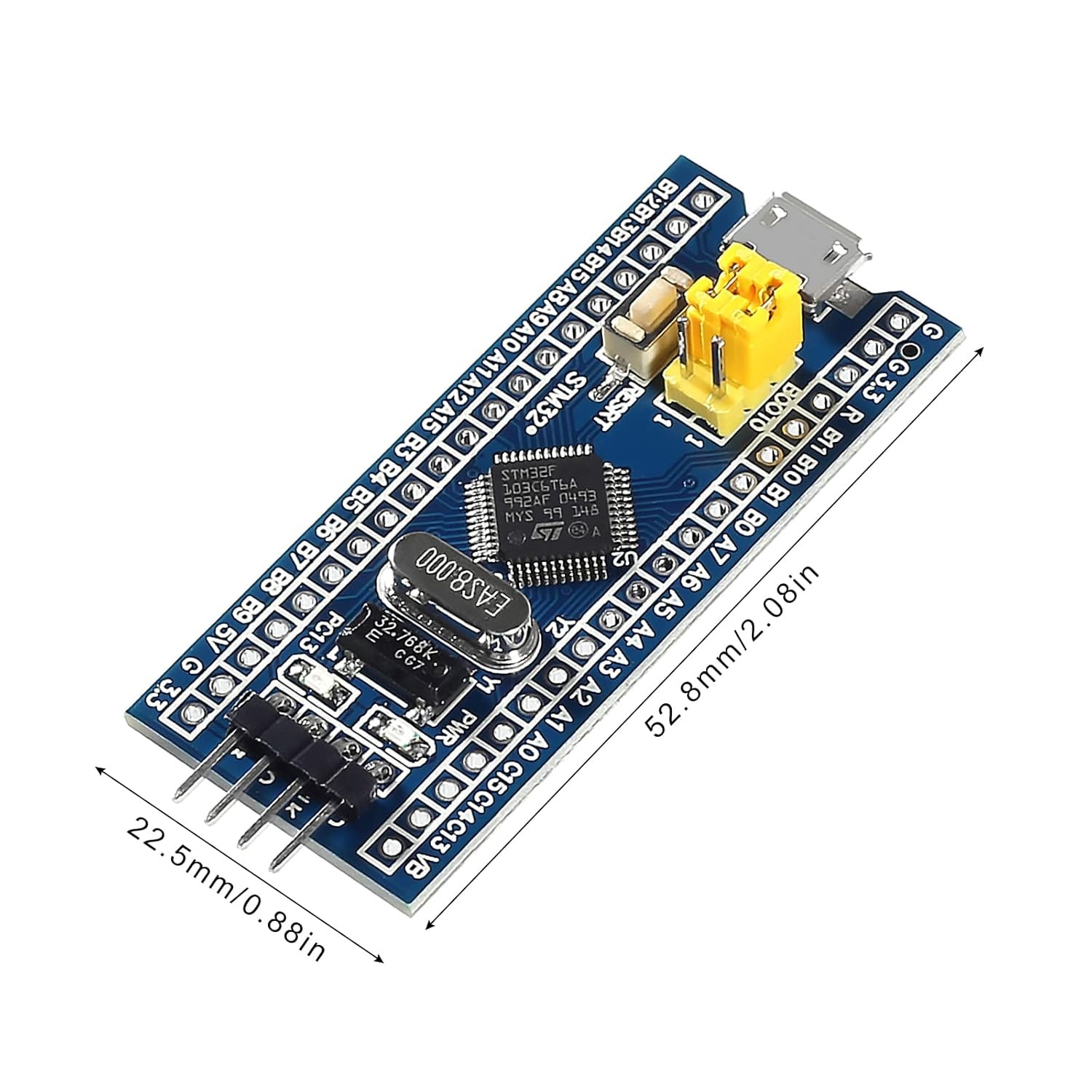

• Dimensions: 52 × 22 mm approx.

Applications:

• Embedded Systems Development
• Robotics and Automation
• IoT and Wireless Sensor Nodes
• Industrial Control Systems
• STM32 Programming Practice
• Home Automation Projects
• DIY Electronics and Prototyping

Packaging Includes:

• 1 x STM32F103C6T6 Development Board STM32 ARM Core Module
