home Home / Sensors / Distance or Proximity Sensors / LJ12A3-4-Z-BY-PNP DC 6-36V Inductive 4mm NPN-NO Proximity Sensor

-20% OFF Ready to Dispatch

folder_open Distance or Proximity Sensors

LJ12A3-4-Z-BY-PNP DC 6-36V Inductive 4mm NPN-NO Proximity Sensor

Name: LJ12A3-4-Z-BY-PNP DC 6-36V Inductive 4mm NPN-NO Proximity Sensor
Brand: Generic / Other
SKU: Anil337-2
Price: 239.00 INR
Availability: InStock

grade Be the first to review

SKU: Anil337-2 content_copy

Brand: Generic / Other

MRP: ₹297.70 Save ₹58.70 (20% OFF)

₹239.00 (Incl. 18.00% GST) Excl. GST: ₹202.54

In Stock (5 units ready to dispatch from Ahmedabad Hub)

receipt_long GST Invoice with ITC Claim

inventory Wholesale & Volume Pricing Click tier to auto-select

1 – 4 pcs

₹239.00

Regular

5 – 9 pcs

₹227.05

Save 5%

10+ pcs

₹215.10

Save 10%

Qty

pin_drop Check Delivery & Shipping SLA Free Shipping > ₹2,000

local_shipping

Dispatches in 24h

From Ahmedabad Hub

verified

100% Genuine Part

Tested & Quality Checked

receipt_long

GST B2B Invoice

Input Tax Credit Eligible

support_agent

7-Day Support

Easy Defect Replacement

chat Need Technical Help? Chat on WhatsApp

memory Technical Parameters & Datasheet Summary

SKU: Anil337-2

Component Title LJ12A3-4-Z-BY-PNP DC 6-36V Inductive 4mm NPN-NO Proximity Sensor

Part Number / SKU Anil337-2

Brand / Manufacturer Generic / Other

Category & Taxonomy Distance or Proximity Sensors

Applicable GST Rate 18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)

Packaging Protection Anti-Static Moisture Barrier Shielding Bag (ESD Protected)

Dispatch Hub Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India

Datasheet & Queries? chat Ask an Application Engineer on WhatsApp

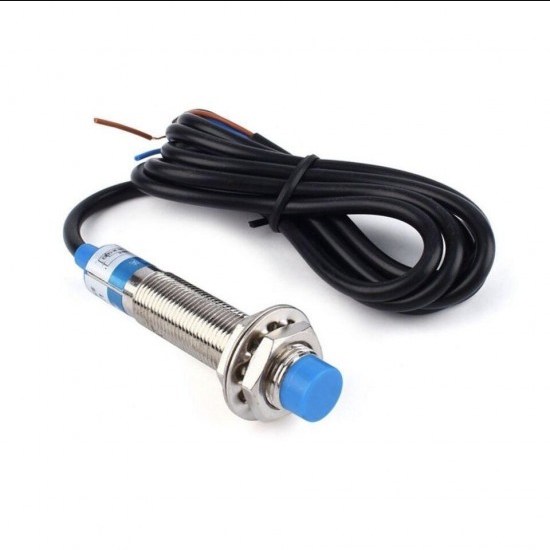

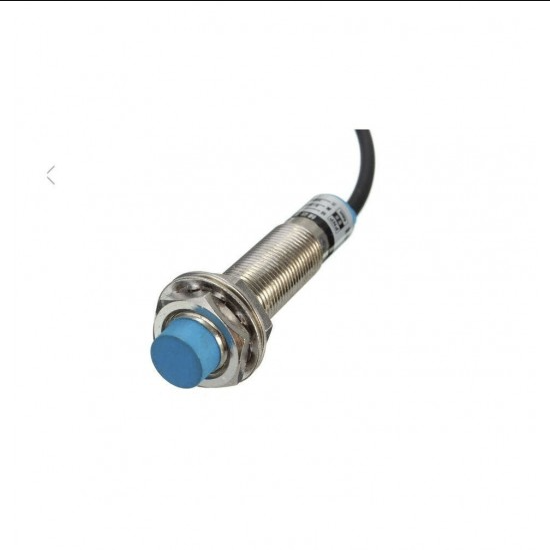

LJ12A3-4-Z-BY-PNP DC 6-36V Inductive 4mm NPN-NO Proximity Sensor

This LJ12A3-4-Z-BY-PNP DC 6-36V Inductive 4mm NPN-NO Proximity Sensor Switch is a component widely used in the automatic control industry for detecting, controlling, and non-contact switching. When the proximity switch is close to some target object, it will send out a control signal.

When the metal approaches near-proximity switch sensing area, an Edy Current is induced in metal. Which in turn disturbs the magnetic field produced by the Inductive Proximity Sensor. This change is sensed by the sensor.

This inductive proximity switches can be non-contact, no pressure, no spark, quickly issued the electrical command. Accurately reflect the position and stroke movement mechanism. Positioning accuracy, operating frequency, service life. Easy to install and suitable for harsh environments.

This 4mm proximity sensor can detect a variety of metals, miniature size, long life, low price, shielded type installation, anti-interference ability, 1mm detection distance, using for precise positioning of molds, precision machine tools, and robots.

Note: The product is available in blue or yellow colors, so while shipping you may get any one of them.

Features :

Red LED checks the state of the proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Total Length of cylinder: 62mm.
Thread length: 40mm.
Outer (Theard) Diameter: M12
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC
Can replace small switches and limit switches

Specifications:

Model	LJ12A3-4-Z-BY PNP-NO Switch
Operating Voltage	6 ~ 36 VDC
Output Type	NPN Normally Open Three-line
Detection object	Metal Objects
Detection distance	4 mm
Output Current	300 mA
Working temperature (°C)	-25 ~ +70, ±15%
Cable Length	Approx 1.1 m
Material	Metal and plastic
Dimensions	12 mm Screw Diameter
Weight (gm)	46
