MC-38 Wired Door Window Sensor Magnetic Switch Home Alarm System

MC-38 Wired Door Window Sensor Magnetic Switch Home Alarm System are an essential component of your home security system: they let you know when someone is entering your home. These devices are made up of two parts, which form a circuit when they’re kept parallel to each other. When someone opens the door, the two parts separate and break the circuit, which triggers the control panel to sound an alarm.

Because door sensors are simple to install, it’s easy to take these helpful gadgets for granted. But the more you know how your home security system works, the better you can use and maintain them.

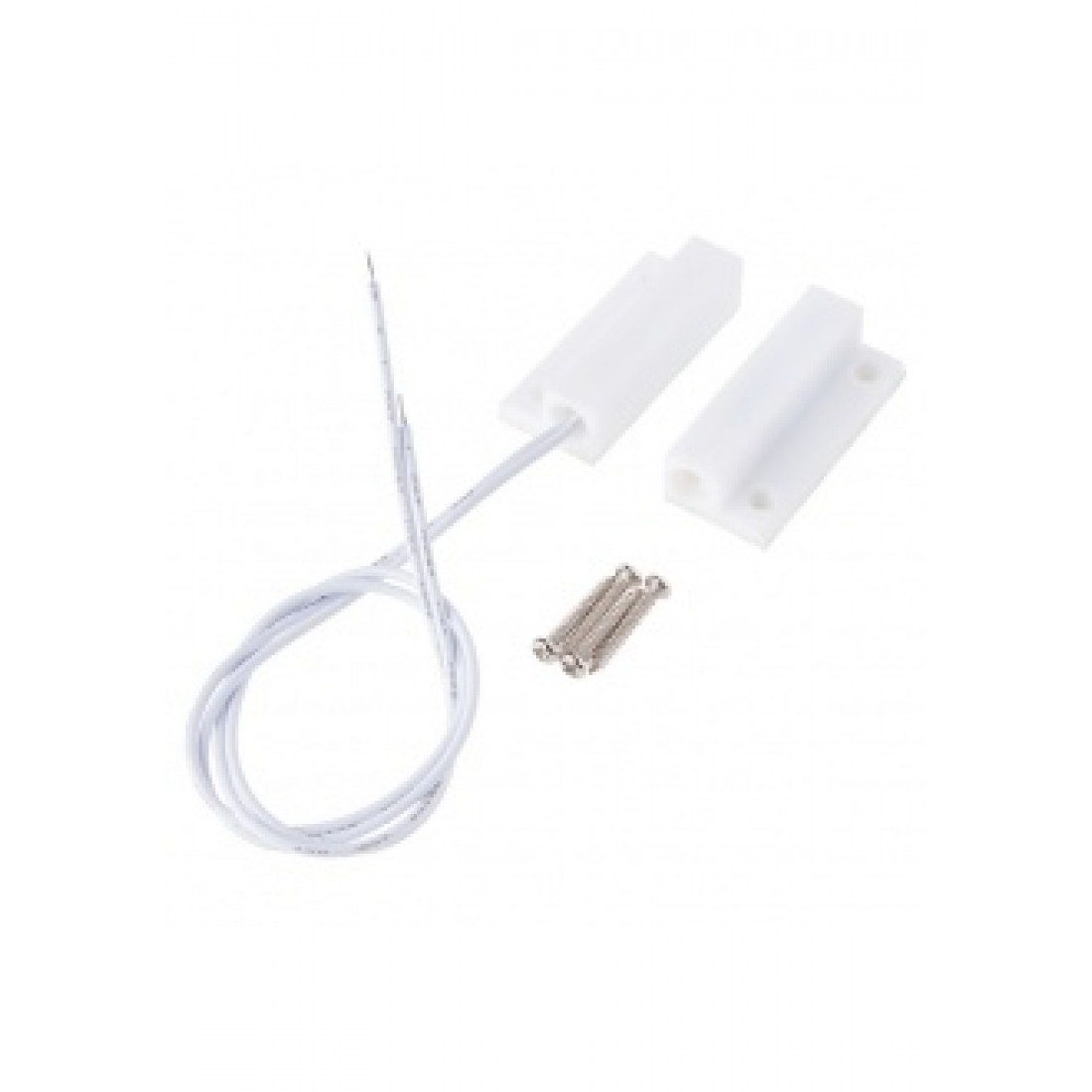

This is an MC-38 Door Alarm Sensor Magnetic Switch Sensor Normally Closed type which you can install on your door and use it with your home alarm system. It is very easy to install and conceal and can be easily used in places like your home, office, and hotels.

Description:

• A Magnetic Contact is an electrically controlled switch used for switching a power circuit, similar to a relay. Magnetic contacts give exact position of the door (open/close).
• N/C = Normally Closed – In its normal state (door/window closed, magnet near): The reed switch is closed → circuit is complete → current can flow.
• When the door/window opens (magnet moves away): The switch becomes open → circuit breaks → alarm/control panel detects it as a trigger.

So, the MC-38 is usually a Normally Closed contact sensor, which is the standard type used in most alarm systems.

Features :

• Actuation Distance : 15-25mm;
• Easy to install
• Strong concealment
• Magnetic sensor alarm, control the switch of the circuit via the built-in magnet
• Alarm when someone intrudes into your places
• Can be used in places like apartment, hotel, office, etc.
• Ideal for residential or commercial use.
• Designed to do embedded in the door or window frame.
• Life: 100 million times

Specification:

• Model: MC38
• Material: Plastic
• Colour: White
• Connection Type: Normally Close
• Contact Capacity (Max. Switch Current): 0.5A
• Voltage: 100V
• Rated Power (W): 10W
• Actuation Distance: 15-25cm
• Length (mm): 28
• Width (mm): 15
• Height (mm): 13
• Weight (gm): 8

Package Includes :

• 1 x MC-38 Wired Door Sensor Magnetic Switch Home Alarm System.

Note :

• Screws are not included in the product. You can use M5 type screws available at local hardware shops for the same.
