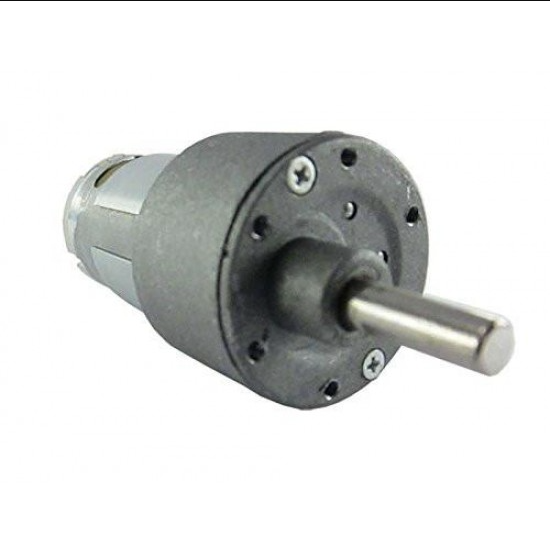

200 RPM 12V Johnson Geared DC Motor Grade-B
memory Technical Parameters & Datasheet Summary
SKU: Anil628A Johnson Geared motor is a simple DC motor with gear box attached to the shaft of the motor which is mechanically commutated electric motor powered from direct current (DC) . 200 RPM 12V Johnson Geared DC Motor Grade-B are usually used for robotics applications. Gear box is built to handle the stall torque produced by the motor, the motor Shaft comes with a metal bushing for wear resistance. The Johnson Geared Motors are known for their compact size and massive torque-speed characteristic.
This Johnson Motor comes with side shaft also known as an off-centered shaft and six M3 mounting holes. The shaft of the motor equips metal bushes which makes these DC gear motors Shaft wear resistant. The shaft of the motor has a hole for better coupling. It is best motor between DC Geared Motor and Side shaft Motors at reasonable cost.
The motor will run smoothly between the voltage range 6 to 18 V DC and give you 200 RPM at 12V supply. It provides the torque of 3.5 kg-cm at 200 RPM.
Features :
- The motor has sturdy construction.
- Shaft equips metal bushes for long life.
- It comes with High-Quality gears.
- The shaft has a hole for better coupling.
Note:
We are selling 2 types of Johnson Motors as “Johnson Geared Motor – Grade A” and “Johnson Geared Motor – Grade -B“, the only difference between them is the quality of materials used for manufacturing the motor. All other specification including look, dimensions, working etc. are same. The “Grade A Quality” motors shows slightly more torque count than “Grade-B” Johnson Motors and hence dominates “Grade-B” quality motors. So, the Johnson Geared Motor – Grade A Quality costs little more than Johnson Geared Motor – Grade-B.
Application:
Pan/ Tilt camera, auto shutter, welding machines, water meter, IC Card, grill, oven, cleaning machine, garbage disposers, household appliances, Slot machines, Money detector, automatic actuator, coffee machine, Towel disposal, lighting , Coin refund devices, Peristaltic pump
Schematic : CLICK HERE
Package Includes :
- 1 x 200 RPM 12V Johnson Geared DC Motor Grade-B
