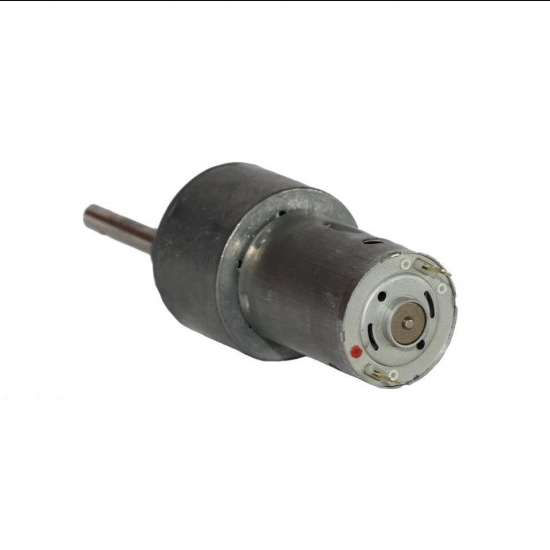

30 RPM 12V Johnson Geared DC Motor Grade-B

30 RPM 12V Johnson Geared DC Motor Grade-B is a simple DC motor featuring metal gearbox for driving the shaft of the motor, so it is a mechanically commutated electric motor which is powered from DC supply.

The Johnson Geared motor is famous for its compact size and massive torque. A torque as much as x3 as compared to center shaft or side shaft geared motor, with an affordable price tag. The motor comes with a metal gearbox and off centered shaft , also shaft has a metal bushing for wear resistance. Apart from robotic application they are also used in industrial applications, vending system, hygiene and cleaning industry, and household electric appliance.

This Johnson Motor comes with side shaft also known as an off-centered shaft and six M3 mounting holes. The shaft of the motor has a hole for better coupling. It is best motor between DC Geared Motor and Side shaft Motors at reasonable cost.

The motor will run smoothly between the voltage range 6 to 18 V DC and give you 30 RPM at 12V supply. It provides the torque of 10 kg-cm at 30 RPM.

Features :

• The motor has sturdy construction.
• Shaft equips metal bushes for long life.
• It comes with High-Quality gears.
• The shaft has a hole for better coupling.

Note:

We are selling 2 types of Johnson Motors as “Johnson Geared Motor – Grade A” and “Johnson Geared Motor – Grade -B“, the only difference between them is the quality of materials used for manufacturing the motor. All other specification including look, dimensions, working etc. are same. The “Grade A Quality” motors shows slightly more torque count than “Grade-B” Johnson Motors and hence dominates “Grade-B” quality motors. So, the Johnson Geared Motor – Grade A Quality costs little more than Johnson Geared Motor – Grade-B.

Application:

Pan/ Tilt camera, auto shutter, welding machines, water meter, IC Card, grill, oven, cleaning machine, garbage disposers, household appliances, Slot machines, Money detector, automatic actuator, coffee machine, Towel disposal, lighting , Coin refund devices, Peristaltic pump

Schematic : CLICK HERE

Package Includes :

• 1 x 30 RPM 12V Johnson Geared DC Motor Grade-B
