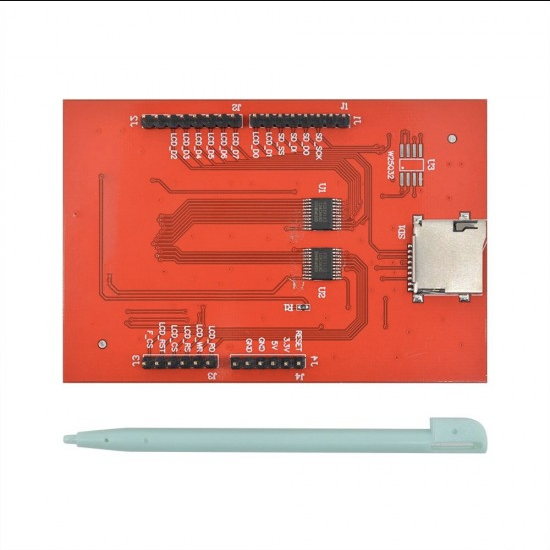

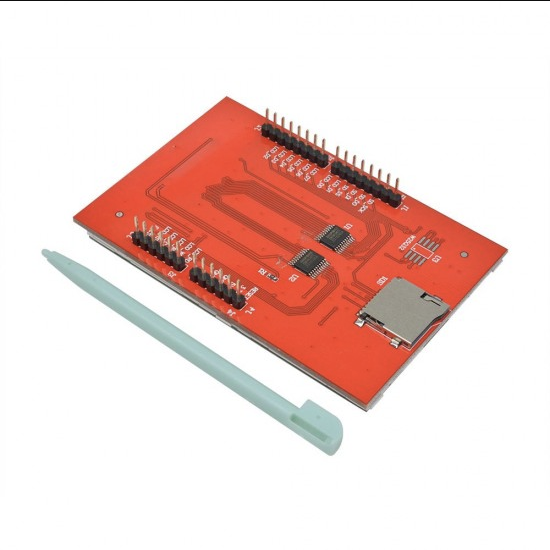

3.5 inch ILI9488 SPI Interface 480×320 TFT Touch Screen Display for Arduino
3.5 inch TFT Touch Screen Display for Arduino
3.5 inch TFT Touch Screen Display for Arduino is big (3.5″ diagonal) bright and colorful! 480×320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128×64 display, and double our 2.8″ TFT.
As a bonus, this display has a resistive touchscreen sensor allowing you to control your application simply by touching any area of the screen. This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller.
Features :
- 3.5-inch color screen,support 65K color display,display rich colors
- 480X320 resolution, optional touch function
- Easy to expand the experiment with SD card slot
- Provide a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
Specifications:
| Name | Parameter |
| Display Color | RGB 65K color |
| Screen Size | 3.5(inch) |
| Type | TFT |
| Driver IC | ILI9488, R61581 |
| Resolution | 480*320 (Pixel) |
| Module Interface | Parallel interface |
| Active Area (AA area) | 48.96x73.44(mm) |
| Module PCB Size | 56.34x98(mm) |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| VCC power voltage | 3.3V~5V |
| Logic IO port voltage | 3.3V(TTL) |
| Rough Weight(Package containing) | No touch: 45 (g) / With touch: 57 (g) |
Package Includes :
- 1 x 3.5″ Inch TFT Touch Screen Module
User Manual and Datasheets:
