2.4 Inch TFT LCD Touch Screen LCD Display Module for Arduino
2.4 Inch TFT LCD Touch Screen LCD Display Module for Arduino

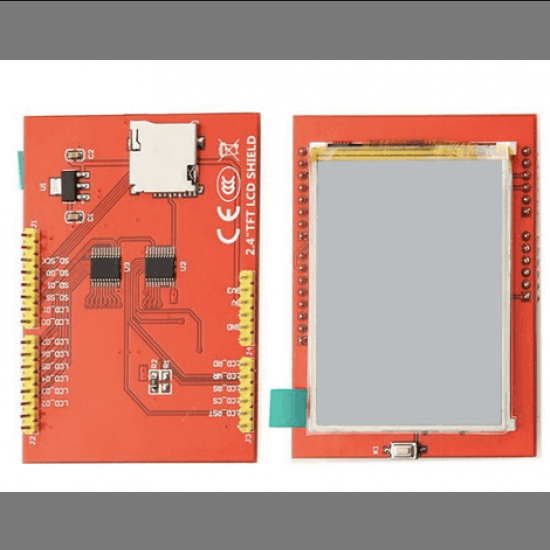

The 2.4 Inch TFT LCD Touch Screen LCD Display Module for Arduino is a beautiful large touchscreen display shield with built in microSD card connection. The LCD has excellent vivid color contrast. This TFT display is big (2.4″ diagonal) bright (4 white-LED backlight) and colorful (18-bit 262,000 different shades). It has 240×320 pixels with individual pixel control which is way more resolution than a black and white 128×64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.
Features:
- 2.4 inch LCD TFT display
- Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control
- Colorful, 18-bit 262,000 different shades
- 4-wire resistive touchscreen
- 240 x 320 resolution
- 8 bit digital interface, plus 4 control lines
- Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD
- 5V compatible, use with 3.3V or 5V logic
- Size: 71 x 52 x 13mm
- Weight : 30 gram
Package Includes:
- 1 x 2.4 inch TFT LCD Touch Display Shield
- 1 x Stylus (Optional- Subjected to Availability)
