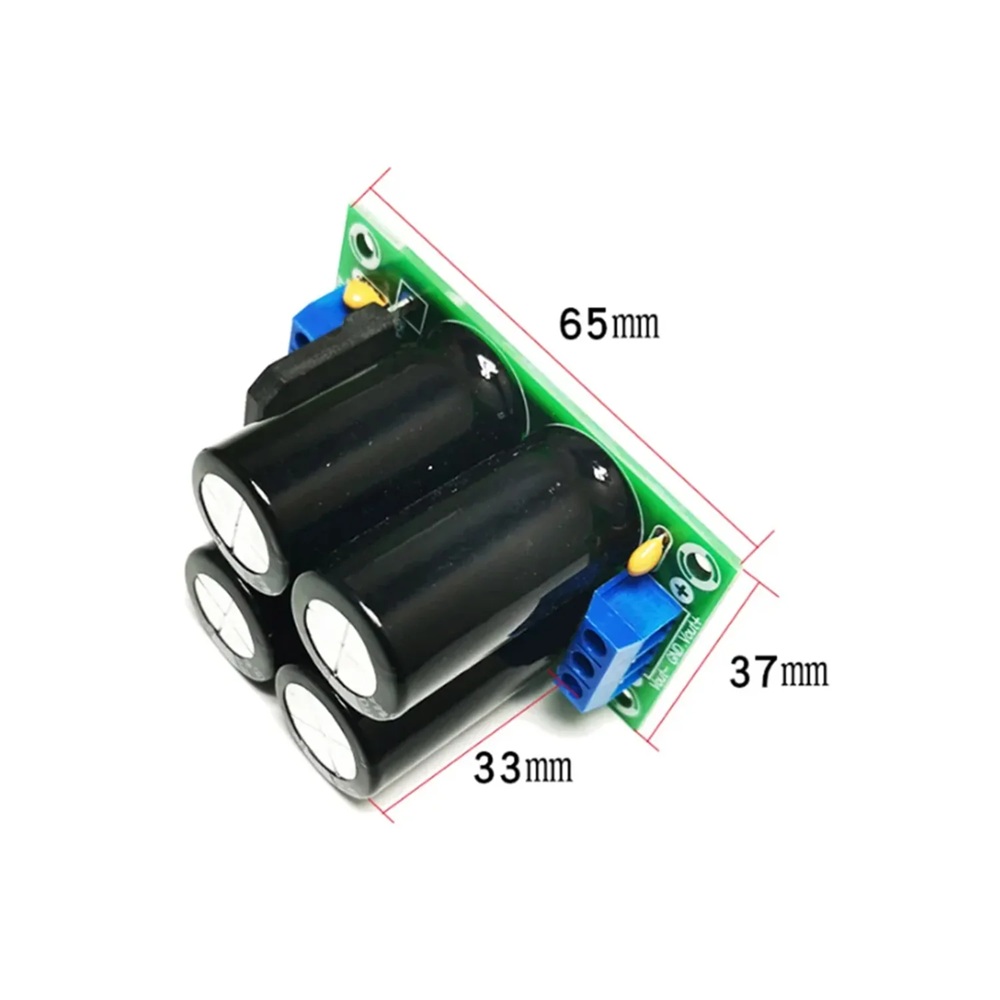

35V 4700uF 25A Dual Power Supply Rectifier Filter Power Board Module

35V 4700uF 25A Dual Power Supply Rectifier Filter is a robust and compact dual power supply board designed to provide stable and reliable dual voltage output up to ±35V. Equipped with a 25A high-capacity bridge rectifier and 4700uF capacitors, it efficiently converts AC input to smooth DC voltage for various electronic projects and power electronics. Its FR-4 full fiberboard PCB ensures durability and performance consistency.

Features:

• High current capacity with a 25A bridge rectifier for heavy-duty applications
• Dual output voltage (positive and negative) suitable for analog and digital circuits
• Large 4700uF capacitance for effective noise filtering and smooth power supply
• Compact PCB layout with durable FR-4 fiberboard material (1.6mm thickness)
• Easy integration in DIY electronic power supply projects

Specifications:

• Maximum Voltage: 35V
• Capacitance: 4700uF
• Bridge Rectifier Current Rating: 25A
• Power Board Current Rating: 25A

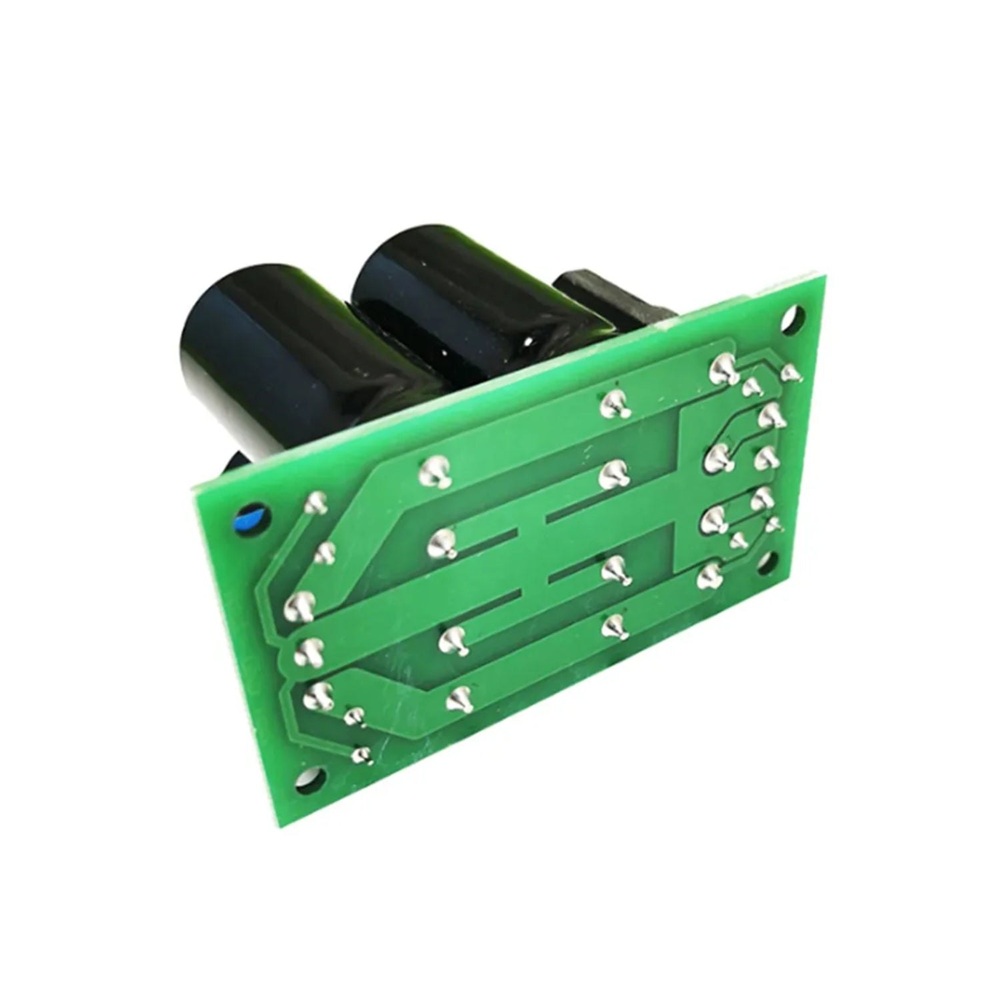

• PCB Material: FR-4 full fiberboard, 1.6mm thick

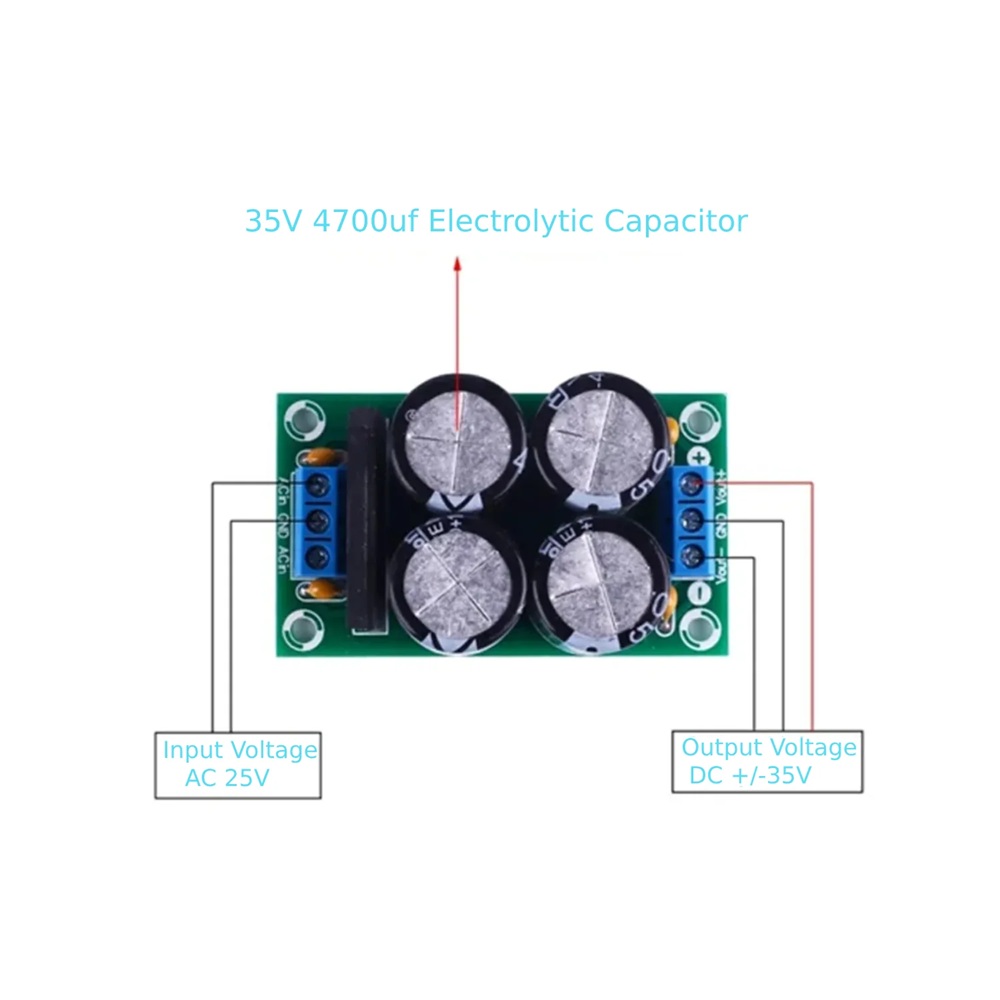

• Output Voltage: Approx. ±1.4 times input AC voltage (e.g., 18VAC input gives ±25V DC output)

Applications:

• Dual power supply board for audio amplifiers, operational amplifier circuits, and analog/digital mixed circuits
• DIY electronic projects requiring positive and negative power rails
• Power rectification and filtering in laboratory power supplies
• Industrial control systems and embedded electronics
• Any project requiring stable dual DC voltage output from AC sources

Package Includes:

• 1 x 35V 4700uF 25A Dual Power Supply Rectifier Filter Power Board Module
