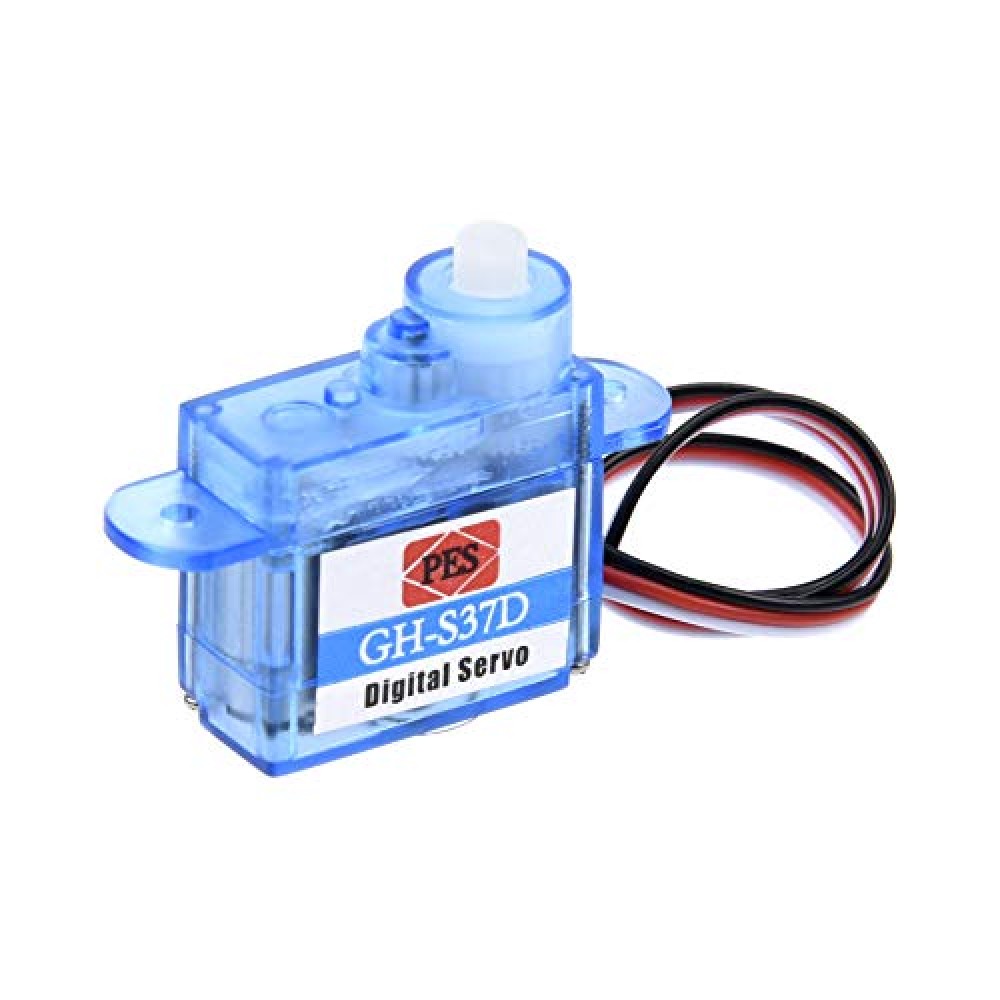

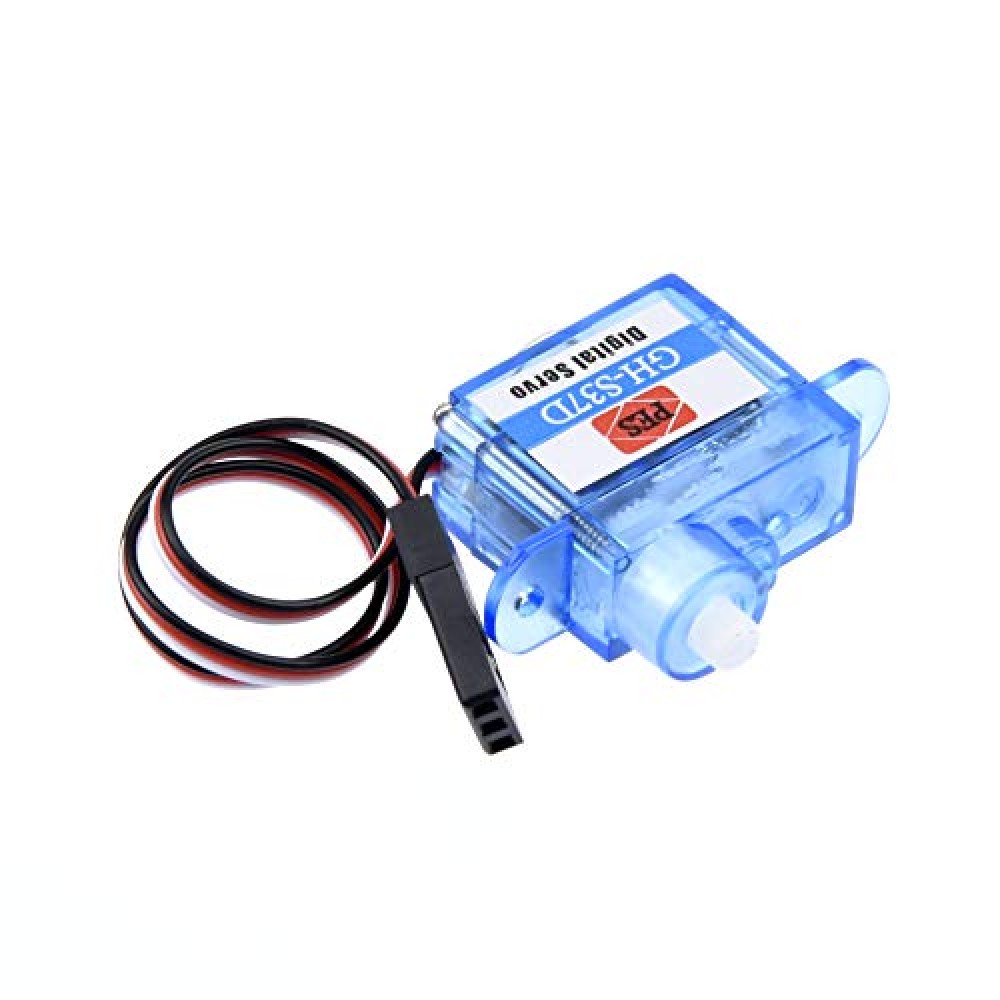

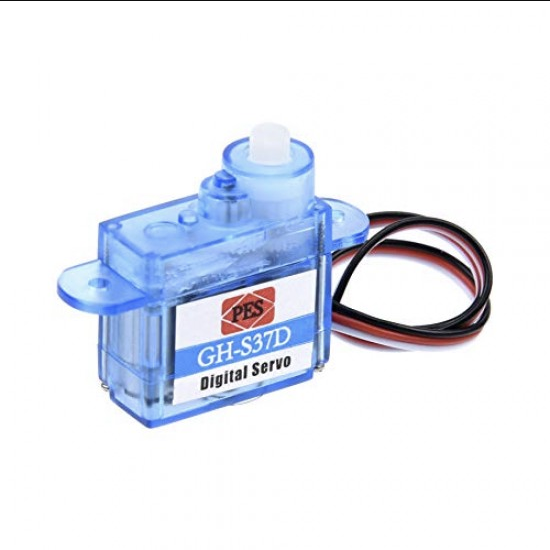

3.7g Micro Digital Servo Motor GH-S37D For RC Airplane, Helicopter, RC Car and RC Boat

Servo Motors

3.7g Micro Digital Servo Motor GH-S37D For RC Airplane, Helicopter, RC Car and RC Boat

star star star star star

0 rating

Just for you!

SKU: Anil261

MRP: Rs. 399.00

Rs. 299.00 (Incl. Tax)

Save Rs. 100.00 (25% off)

Rs. 269.10 / pack of 1 = Rs. 269.10 per piece

Pay later available

on orders above ₹300

View options

Quantity

3.7g Micro Digital Servo Motor GH-S37D For RC Airplane, Helicopter, RC Car and RC Boat is a best suitable servo in light weight range and used widely in RC Airplanes. It is super light. It comes with a 3-pin power and control cable and mounting hardware.

Features:

Use for rc plane, helicopter, boat, car, etc
The 3.7g servo is coreless, gear precision, high torque and low noise
Made of all nylon gear, durable for used,long service time
Connector wire length up to 150mm, convenient to use

Specifications:

Servo Model	GH-S37D
Servo Type	Digital servo
Motor Type	hollow cup
Working Voltage	3.6v-4.8v
Torque	0.5kg/cm (at 3.6V) 0.7kg/cm (at 4.8V)
Speed	0.13sec/60° (at 4.8V) 0.10sec/60° (at 6V)
Operating Speed (at no load)	0.15 Sec/60° 0.1 Sec/60°
Running Current (at no load)	≤ 10 m A ≤40 m A
Stall Torque (at locked)	0.42±0.1 kg-cm 0.6±0.1 kg-cm
Stall Current (at locked)	≤60 m A ≤200 m A
Operating Temperature	0 °C -60 °C
Standard Signal	1000 to 2000 microseconds
Working Angle	90°
Current	<300mA
Dead Zone Setting	4 usec
Line Length	150mm
Operating Voltage	5
Weight (gm)	3.7g
Colour	Blue
Dimensions (mm) LxWxH	20.0 x 8.75 x 22.0 mm

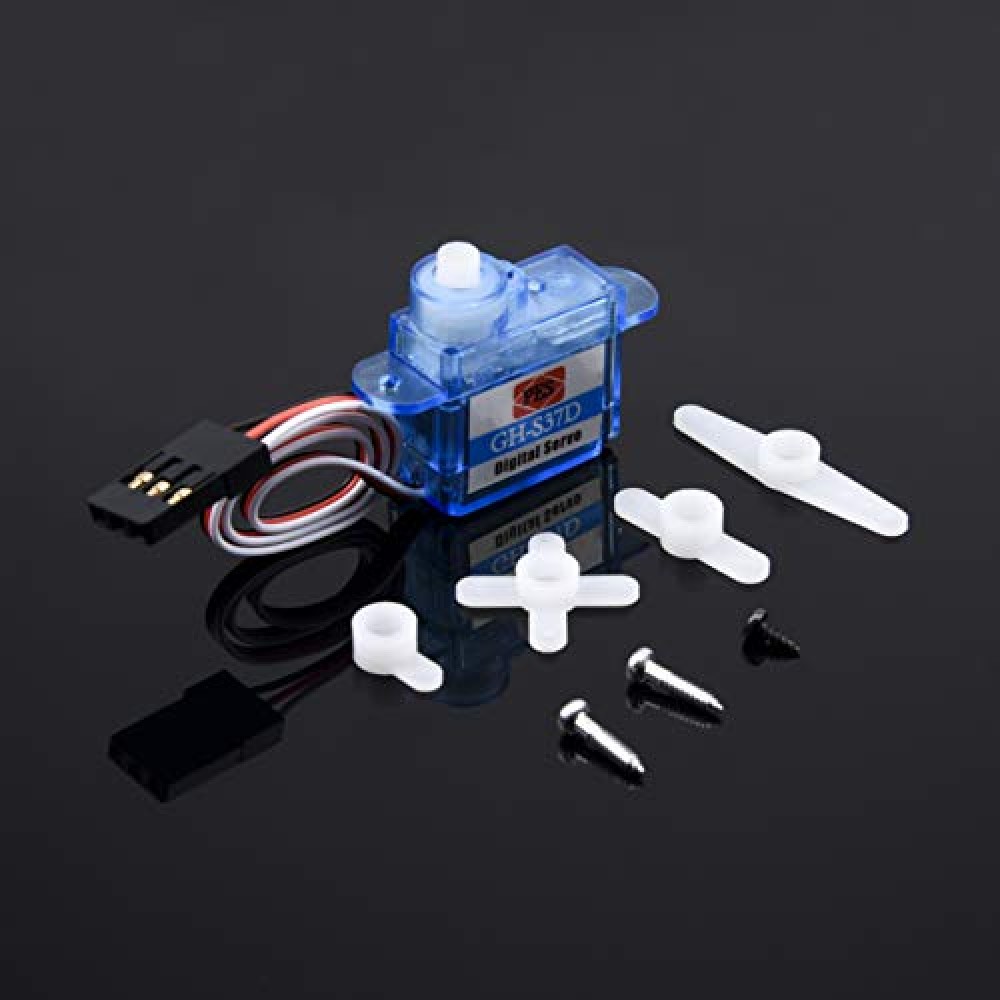

Package Includes:

1 x 3.7g Micro Digital Servo Motor GH-S37D

Features:

Use for rc plane, helicopter, boat, car, etc
The 3.7g servo is coreless, gear precision, high torque and low noise
Made of all nylon gear, durable for used,long service time
Connector wire length up to 150mm, convenient to use

Specifications:

Servo Model	GH-S37D
Servo Type	Digital servo
Motor Type	hollow cup
Working Voltage	3.6v-4.8v
Torque	0.5kg/cm (at 3.6V) 0.7kg/cm (at 4.8V)
Speed	0.13sec/60° (at 4.8V) 0.10sec/60° (at 6V)
Operating Speed (at no load)	0.15 Sec/60° 0.1 Sec/60°
Running Current (at no load)	≤ 10 m A ≤40 m A
Stall Torque (at locked)	0.42±0.1 kg-cm 0.6±0.1 kg-cm
Stall Current (at locked)	≤60 m A ≤200 m A
Operating Temperature	0 °C -60 °C
Standard Signal	1000 to 2000 microseconds
Working Angle	90°
Current	<300mA
Dead Zone Setting	4 usec
Line Length	150mm
Operating Voltage	5
Weight (gm)	3.7g
Colour	Blue
Dimensions (mm) LxWxH	20.0 x 8.75 x 22.0 mm
