3DR Radio Telemetry 433MHz 100mW kit

3DR Radio Telemetry 433MHz 100mW kit is 433Mhz 100mW Radio Telemetry V2 Kit is based on the 3DR Telemetry kit and is 100% compatible as it runs the same firmware onboard. This firmware used by 3D Robotics is completely open-source which is, of course, the reason we are able to use it on our own version at Unmanned Tech.

The Unmanned Telemetry Kit is compatible with Ardupilot or Pixhawk-based systems and allows you to easily add a two-way telemetry connection between your drone and ground station. This product comes with our full support and warranty as we are confident in the functionality and reliability of this item.

This is the new and improved V2 of the Unmanned Telemetry kit. The full features and specifications are listed below but the main features are that both air and ground module are now interchangeable, and each is with a USB connector and a DF13 connector. Please note that to connect to Pixhawk, it is a good idea to also purchase a 6-pos to 6-pos cable as this is easier and better than using the cable included.

Features :

Very small size & Lightweight (under 4 grams without antenna)
Transparent serial link
MAVLink protocol framing and status reporting
Frequency hopping spread spectrum (FHSS)
Adaptive time division multiplexing (TDM)
Support for LBT and AFA
Configurable duty cycle
Interchangeable air and ground modules
Micro-USB port
6-position DF13 connector
100 mW maximum output power (adjustable)
Based on HopeRF’s HM-TRP module
RP-SMA connector
2-way full-duplex communication through adaptive TDM
UART interface
Transparent serial link
MAVLink protocol framing
Frequency Hopping Spread Spectrum (FHSS)
Configurable duty cycle
Error correction corrects up to 25% of bit errors
Configurable through Mission Planner and APM Planner
Built-in error correcting code (can correct up to 25% data bit errors)
The demonstrated range of several kilometers with a small Omni antenna
Can be used with a bi-directional amplifier for even more range
AT commands for radio configuration
RT commands for remote radio configuration
Adaptive flow control when used with APM

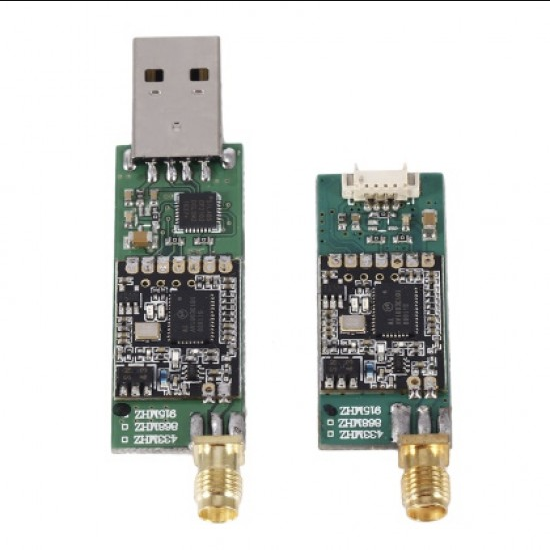

Based on the HopeRF HM-TRP radio module, featuring a SiLabs Si1000 RF microcontroller.

Specifications:

Frequency (MHz)	433
Rated Power (W)	100mW
Range(m)	1600
Receive Sensitivity(dBm)	-121
Serial Interface	3.3V UART
Air Data Rates(kbps)	250
Operating Current (A)	1.1
Voltage(V)	3.6 to 7
Operating Temperature (°C)	-10 to 85
Weight(gm)	36

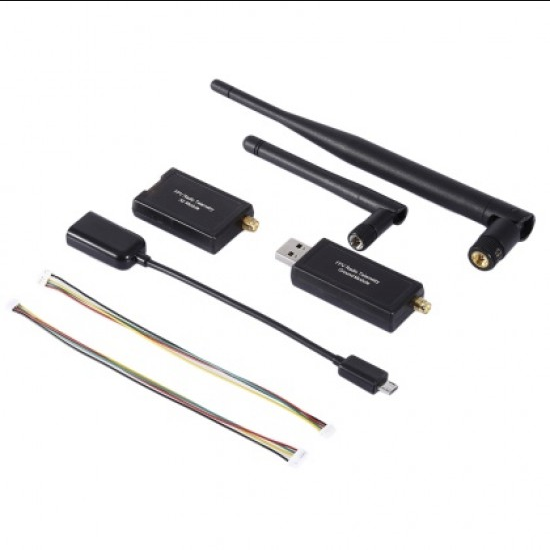

Package Includes :

1 x 3DR Radio Telemetry with the case and Tx and Rx Antenna.
2 x cables (APM/PIX).
2 x 3.5dbi antennas.

Useful Links :

SIK Firmware

Note:

This telemetry only could use with APM compatible control board.
As we have some variations in the color of connecting cable, we will be shipping it randomly to our customers.
