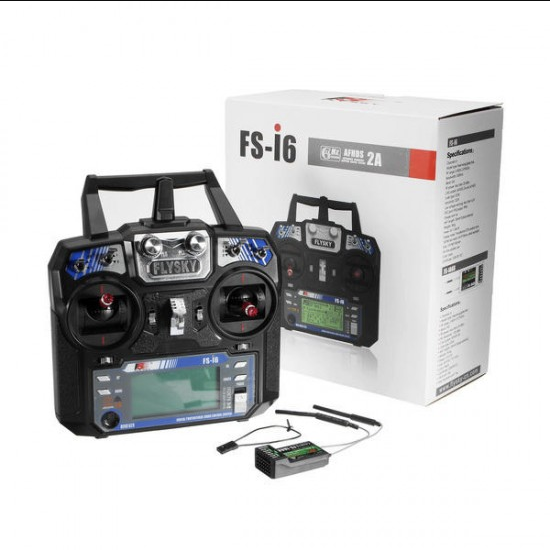

FlySky FS-i6 2.4G 6CH AFHDS RC Transmitter with FS-iA6 Receiver (with LCD Display)

FlySky FS-i6 2.4G 6CH AFHDS RC Transmitter with FS-iA6 Receiver (with LCD Display)

grade Be the first to review
SKU: Anil769 content_copy
Brand: Generic / Other
MRP: ₹6,110.00 Save ₹760.00 (12% OFF)
₹5,350.00 (Incl. 18.00% GST) Excl. GST: ₹4,533.90
In Stock (1 units ready to dispatch from Ahmedabad Hub)
receipt_long GST Invoice with ITC Claim
inventory Wholesale & Volume Pricing Click tier to auto-select
1 – 4 pcs
₹5,350.00
Regular
5 – 9 pcs
₹5,082.50
Save 5%
10+ pcs
₹4,815.00
Save 10%
Qty
pin_drop Check Delivery & Shipping SLA Free Shipping > ₹2,000

local_shipping
Dispatches in 24h
From Ahmedabad Hub
verified
100% Genuine Part
Tested & Quality Checked
receipt_long
GST B2B Invoice
Input Tax Credit Eligible
support_agent
7-Day Support
Easy Defect Replacement

memory Technical Parameters & Datasheet Summary

SKU: Anil769
Component Title FlySky FS-i6 2.4G 6CH AFHDS RC Transmitter with FS-iA6 Receiver (with LCD Display)
Part Number / SKU Anil769
Brand / Manufacturer Generic / Other
Category & Taxonomy Remote and Receivers
Applicable GST Rate 18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)
Packaging Protection Anti-Static Moisture Barrier Shielding Bag (ESD Protected)
Dispatch Hub Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India
FlySky FS-i6 2.4G 6CH AFHDS RC Transmitter with FS-iA6 Receiver (with LCD Display)

FlySky FS-i6 2.4G 6CH AFHDS RC Transmitter with FS-iA6 Receiver (with LCD Display) is a great low cost entry level 6-channel 2.4 GHz Transmitter and Receiver that uses solid and reliable Automatic Frequency Hopping Digital System (AFHDS) spread spectrum technology. It also comes with a FS-iA6 6-channel receiver. Suitable for controlling Quadcopters, Multirotor, Heli, and Airplane, the FlySky FS-i6 is a superb budget computer radio for both new pilots and experienced pilots alike!





The ultra slim case design ergonomically fits your hands leading to less hand fatigue especially during long flights. Digital trims, backlit LCD screen, and simple programming give the FS-i6 a modern feel with all the features you want. With a low profile antenna, the FS-i6 is easy to store and no worries about breaking it. Adjustable length sticks, and a loop for attaching a neck strap round out the list of comfort features this radio offers. For changing flight modes or multiple flap position options, the FS-i6 has a 3-position switch, as well as two adjustable knobs.



FlySky FS-i6 works in the frequency range of 2.405 to 2.475 GHz.This band has been divided into 142 independent channels; each radio system uses 16 different channels and 160 different types of hopping algorithm. This radio system uses a high gain and high quality multi directional antenna; it covers the whole frequency band. Associated with a high sensitivity receiver, this radio system guarantees a jamming free long range radio transmission



Each transmitter has a unique ID, when binding with a receiver, the receiver saves that unique ID and can accepts only data from the unique transmitter. This avoids picking another transmitter signal and dramatically increases interference immunity and safety.



This radio system uses low power electronic components and sensitive receiver chip. The RF modulation uses intermittent signal thus reducing even more power consumption.



AFHDS2A system has the automatic identification function, which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs. AFHDS2A has built-in multiple channel coding and error-correction, which improve the stability of the communication, reduce the error ratio and extend the reliable transmission distance.



Features:

  • Entry level 6 channel 2.4GHz radio with telemetry capability
  • Dual Rate/Trims/Gear/Flap/Gyro Gain Adjust/Flight Mode/Throttle Hold/Hover Pitch Switches
  • Easy to use Programming & Navigation Buttons
  • Supports Heli/Standard Wing/Elevon/V-Tail
  • 20 Model Memory
  • 8 Character Model Name
  • Trainer and charging ports
  • Backlit LCD Screen displays real time transmitter and receiver voltage
  • 4 Stick Mode Selectable
  • Mode 2
  • Comes with receiver

Specifications:

Model TypeFlysky FS-i6
Channel6
Modelsfixed wing / glider / helicopter
Wireless frequency2.4GHz
Transmission power<20 dBm
Wireless protocolAFHDS 2A
Range500 ~ 1500m (in the air)
Channel resolution4096
Battery1.5AA * 4
Charging portNone
Low voltage alarm< 4.2V
Antenna typeDual Antenna
DisplaySTN transflective display, LCD 128x64 dot matrix
Data portPS / 2 (PPM)
Temperature range-10 ℃ — + 60 ℃
Humidity range20% -95%
Update onlineYes
ColorBlack
Dimensions (mm) LxWxH174 x 89 x 190



Package includes:

  • 1 x FlySky FS-i6 2.4G 6CH AFHDS RC Transmitter with FS-iA6 Receiver (with LCD Display)
