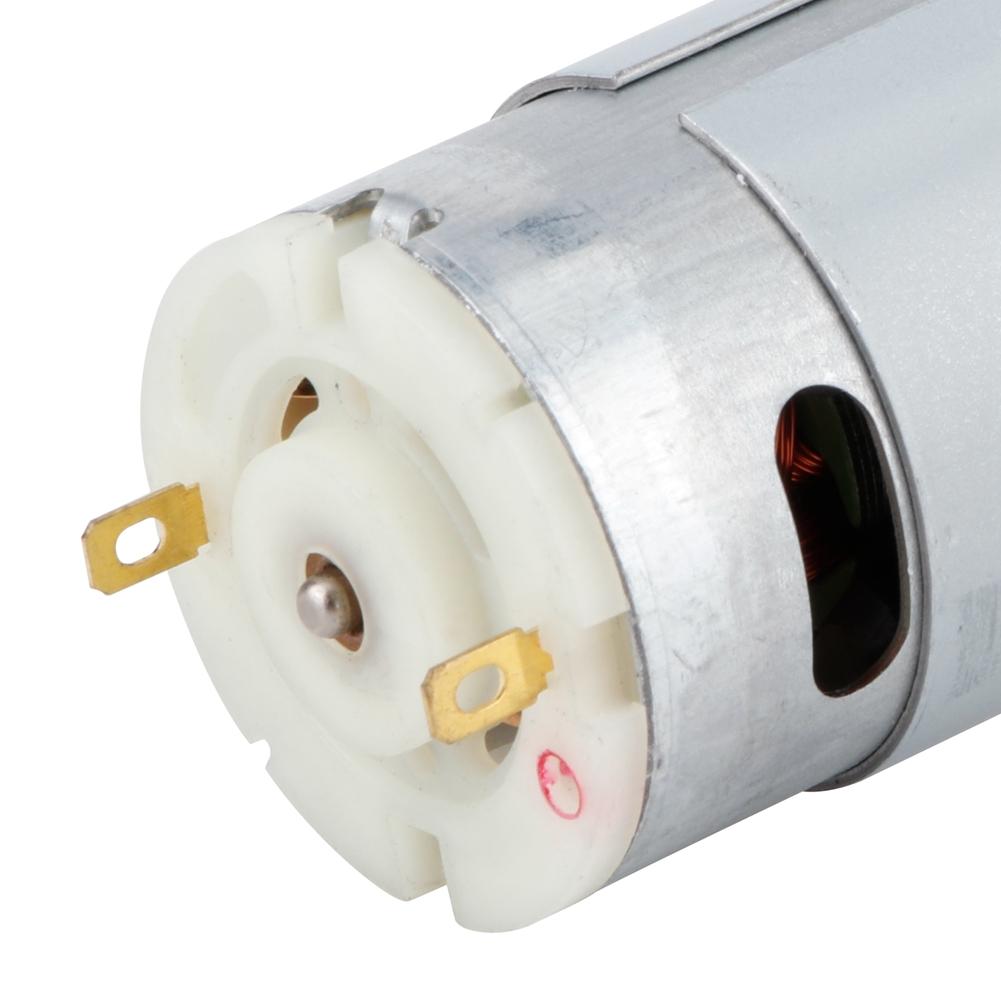

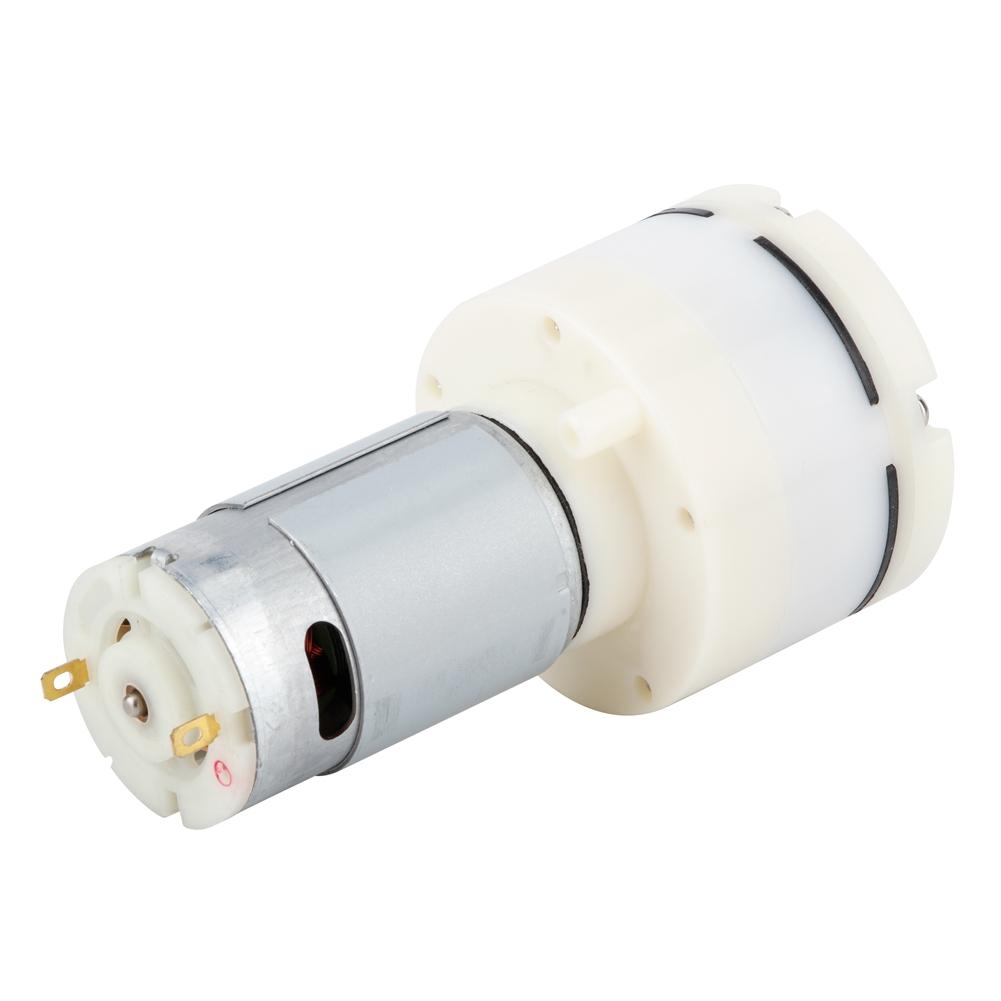

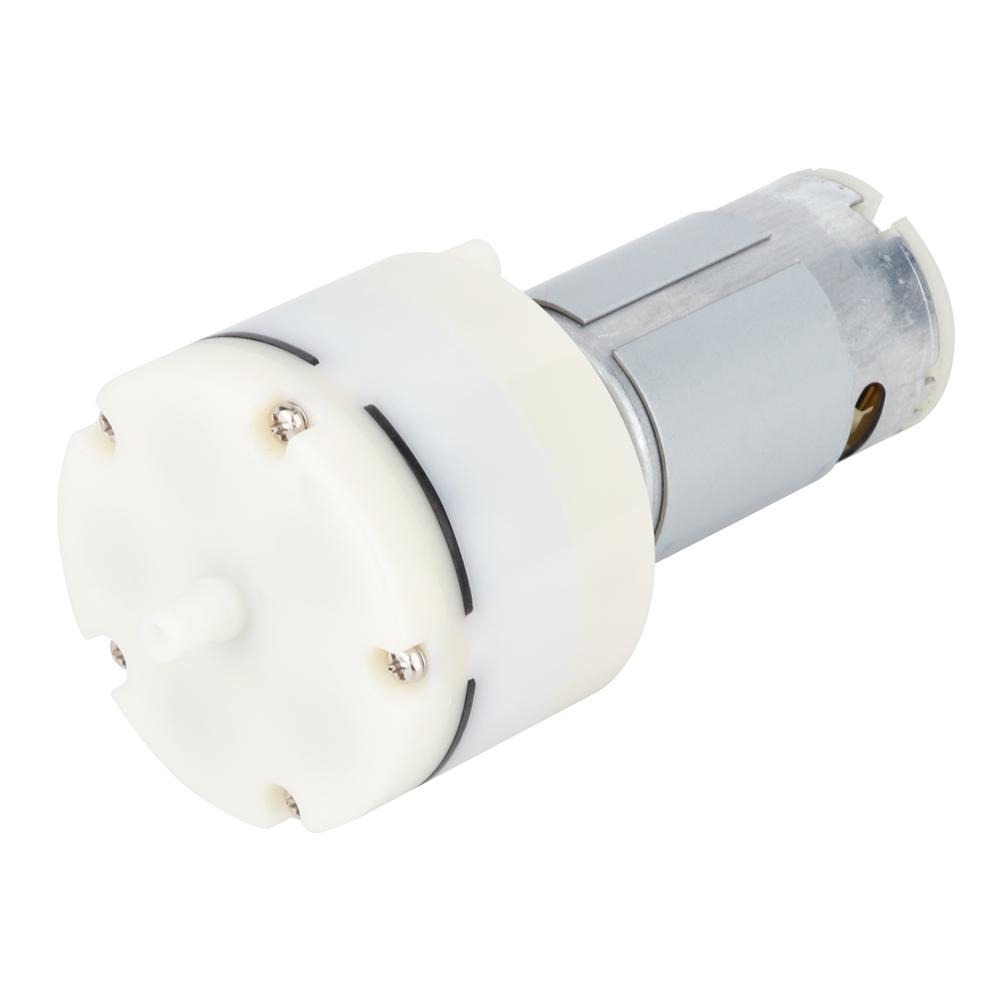

555 Vacuum Air Pump DC12V 15 L/Min Air Flow

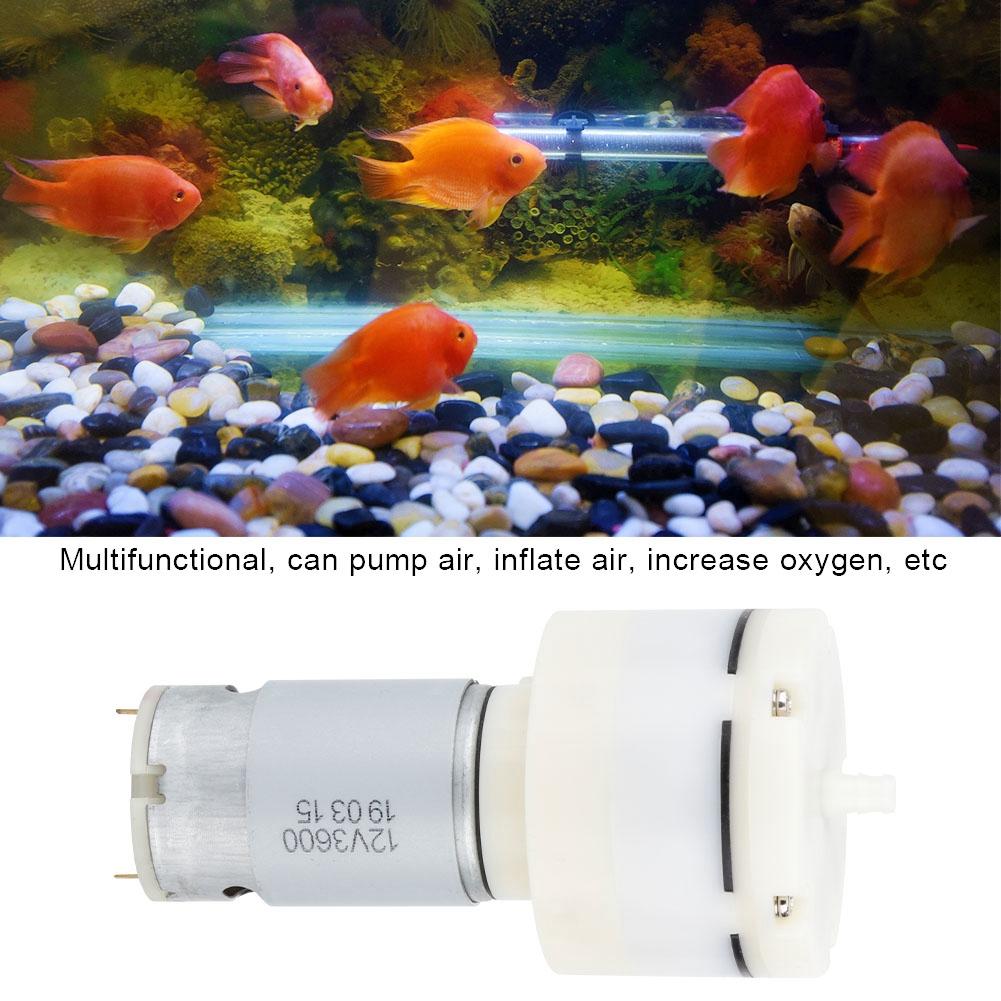

This 555 Vacuum Air Pump DC12V 15 L/Min Air Flow can be used as a Suction And Oxygen Increase Pump For Fish Tank And Air Compressor Separator and multipurpose uses. The main parameters of this pump are the air section vacuum pump, for oxygen, air, etc. If used for aeration of aquariums, it is not suitable for long-term uninterrupted work!

Micro-pumps are small and compact, and the working medium is gaseous. The main uses include micro-negative pressure pumps, miniature vacuum pumps, micro-gas circulation pumps, wrist-type electronic sphygmomanometer pumps, micro-pumps, micro gas sampling pumps, micro-inflating pumps, miniatures. A suction pump, micro pumping pump, etc. According to the principle of work is divided into diaphragm types based on the principle of work.

It is used in a variety of applications, including water gasification and degassing, food preservation, medical devices, water treatment devices, and so on.

Features :

• Operating voltage: 12 VDC
• Inflation Time:<6 seconds (from 0 to 300 mmHg in a 1000CC closed container)
• Minimum pressure:>400 mmHg (53.33KPa)
• Maximum pressure: 750.062mmHg (100KPa)
• Hermeticity:<5mmHg (from 1000mmHg in 1000CC container min), airtight only for inflation
• Use fluid: Gas (emergency can also be used as a pump!)
• Outlet size: Use pagoda structure, the minimum 6mm, the maximum 8mm, mouth length 12mm
• Inlet nozzle size: Around the structure, diameter 6.5mm, mouth length 10mm
• Can be used with our silicone tube 5*8mm or PU tube 5*8mm (use an internal diameter of 6mm can also be)

Specifications:

• Operating Voltage (VDC): 12
• Rated Current (mA): 800
• Flow Rate: >15 L/Min
• Noise: <55dB (test at 30cm distance)
• Lifetime: 100,000 cycles
• Weight (gm): 300

Usage Description:

• 2 types of tubes can be used in the trachea or water pipe!
• Silicone tube is soft, suitable for the tube; PU tube is hard, suitable for the trachea. Combined with the actual use of individuals.(Not included tube.)

Package Includes:

• 1 x 15L High Flow 555 Air Vacuum Pump
