5V 2A 8-Channel SSR G3MB-202P Solid State Relay Module (Low level Trigger)

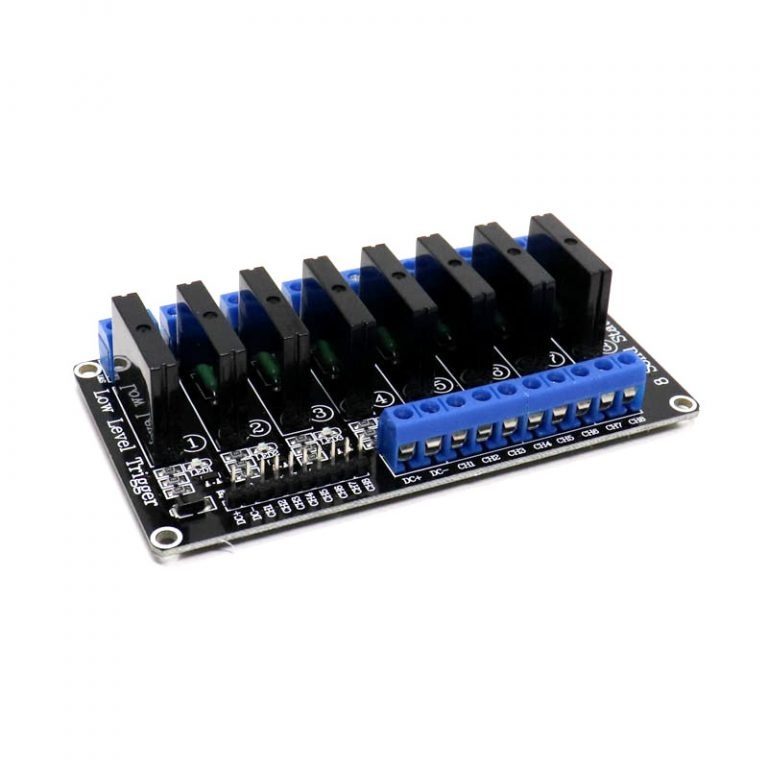

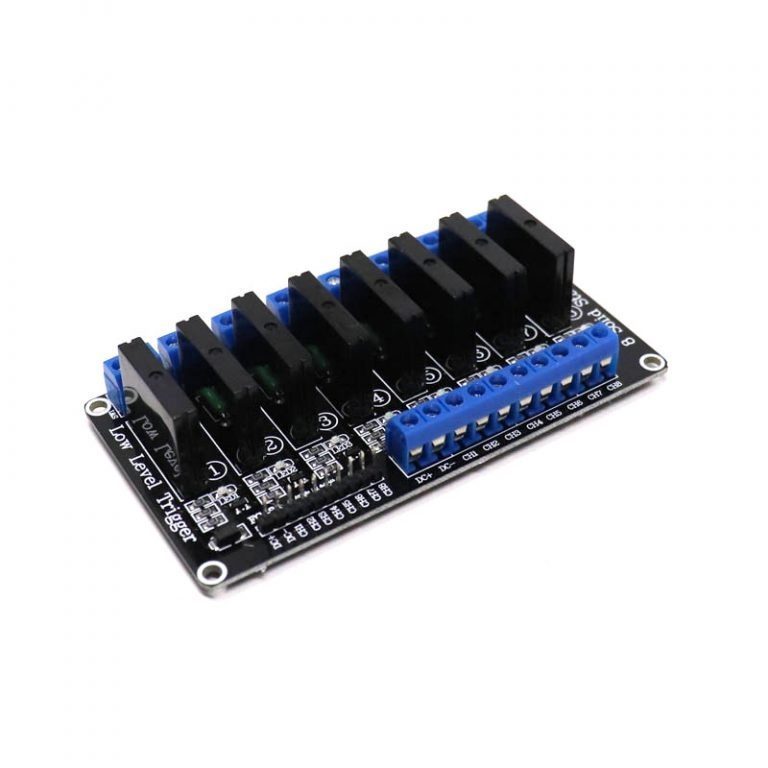

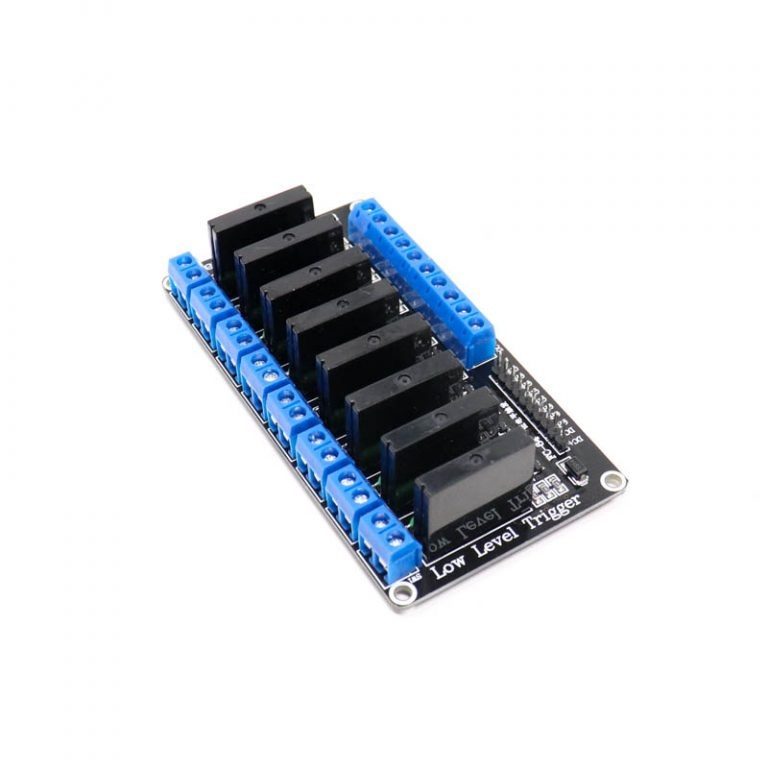

This 5V 2A 8-Channel SSR G3MB-202P Solid State Relay Module (Low level Trigger) is based on the Omron G3MB SSR relay which can control up to 2A at 240VAC. This is an 8 Channel SSR relay module, each relay channel has 3 separate terminals, NO (Normal Open), COM (Common), NC (Normal Closed).

When the input logic voltage is applied to the coil, the NC will disconnect from the COM breaking the conductivity between the two. At the same time, the NO will connect with the COM allowing conductivity between them. Depending on your wiring this will turn on or off the connected load.

5V 2A 8-Channel SSR G3MB-202P Solid State Relay Module Can be directly controlled by Arduino and other microcontrollers. It is Eight channels relay interface board able to control various appliances and equipment with large current.

Input parts :

• DC+: connect power positive
• DC-: connect power negative
• CH1: relay module signal trigger point (Effective low-level trigger)
• CH2: relay module signal trigger point (Effective low-level trigger)
• CH3: relay module signal trigger point (Effective low-level trigger)
• CH4: relay module signal trigger point (Effective low-level trigger)
• CH5: 5-way relay module signal triggering end (low-level trigger valid)
• CH6: 6-way relay module signal triggering end (low-level trigger valid)
• CH7: 7-way relay module signal triggering end (low-level trigger valid)
• CH8: 8-channel relay module signal triggering end (low-level trigger valid)

Note: Power must be DC voltage and need to be consistent with the voltage relay.

Features :

• 8 channel 2 AMP Solid State Relay board
• Control 8 loads of up to 2 amps each at 120V or 240V AC.
• Good for lighting, holiday displays etc.
• Has been assembled, and the electrical test passed.
• Led indicator for each relay.
• Use it to control various appliances and other equipment with a large current.
• It can be controlled directly by Microcontroller
• Input control signal voltage:
• 0-2.5V status low level, relay OFF
• 2.5-20V status high level, relay ON

Specifications:

• Brand: Omron
• Part Number: G3MB-202P
• Voltage(V): 5
• Working Current(mA): 16
• Isolation: Phototriac
• Max. Load: 2A @240V AC
• Zero Cross: Yes
• Length (mm): 130
• Width (mm): 60
• Height (mm): 15
• Weight (gm): 70

Package Includes :

• 1 x 5V 2A 8-Channel SSR G3MB-202P Solid State Relay Module
