8-70V LCD Lead Acid Lithium Battery Capacity Indicator Voltmeter Monitor Display

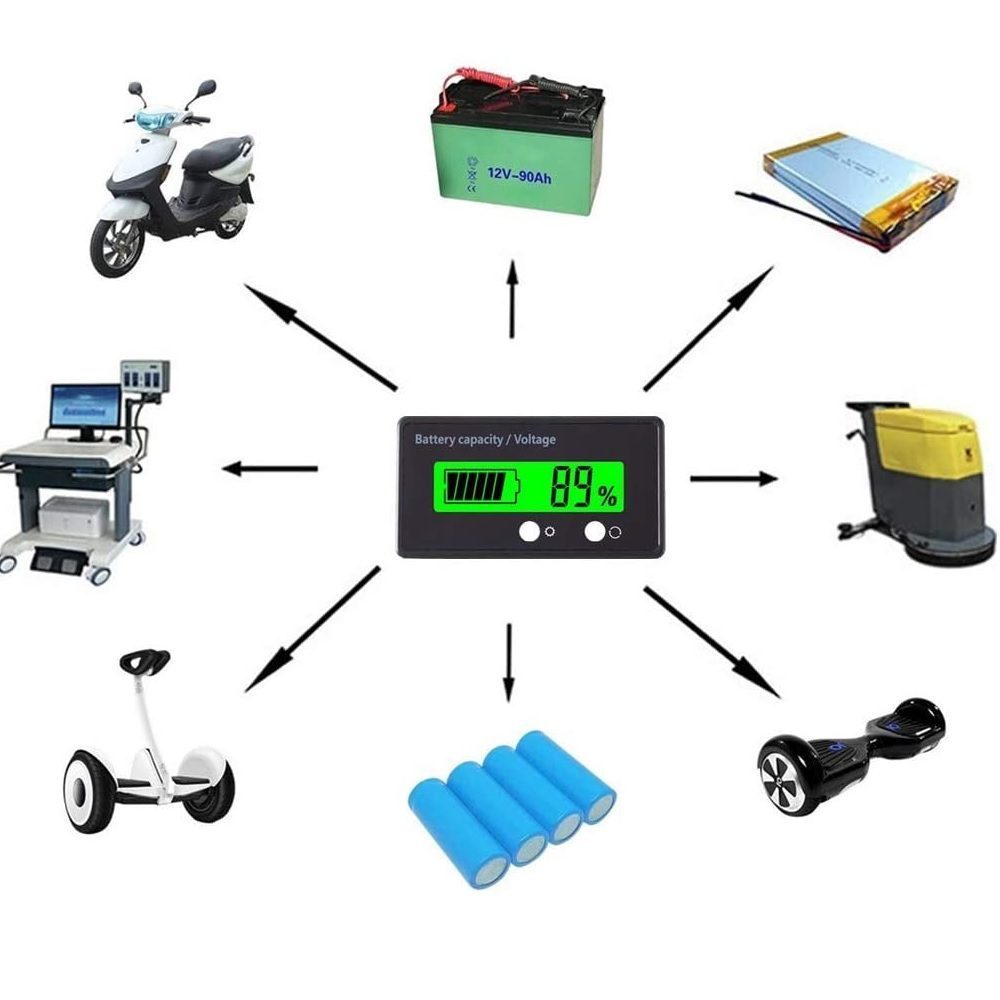

8-70V LCD Lead Acid Lithium Battery Capacity Indicator Voltmeter Monitor Display is a battery capacity indicator with a voltage range of 8V to 70V. It is used to check battery voltage and percentage. This battery display indicator can be used with almost every type of battery available in the market ranging from Lead-acid to lithium and LiFo batteries. With two buttons present on the device you can switch to various options for example checking the battery percentage and voltage, setting battery type to set the backlit. A lightweight device with a PVC film body makes the product water-resistant.

Features:-

• Large testing range
• Used to test battery voltage and percentage
• The Battery capacity indicator voltage meter-Wide voltage input Range DC 8-70V lead Acid Batteries and 2S-6S Lithium Batteries: Ternary lithium batteries, polymer batteries, lithium-ion batteries, storage batteries.

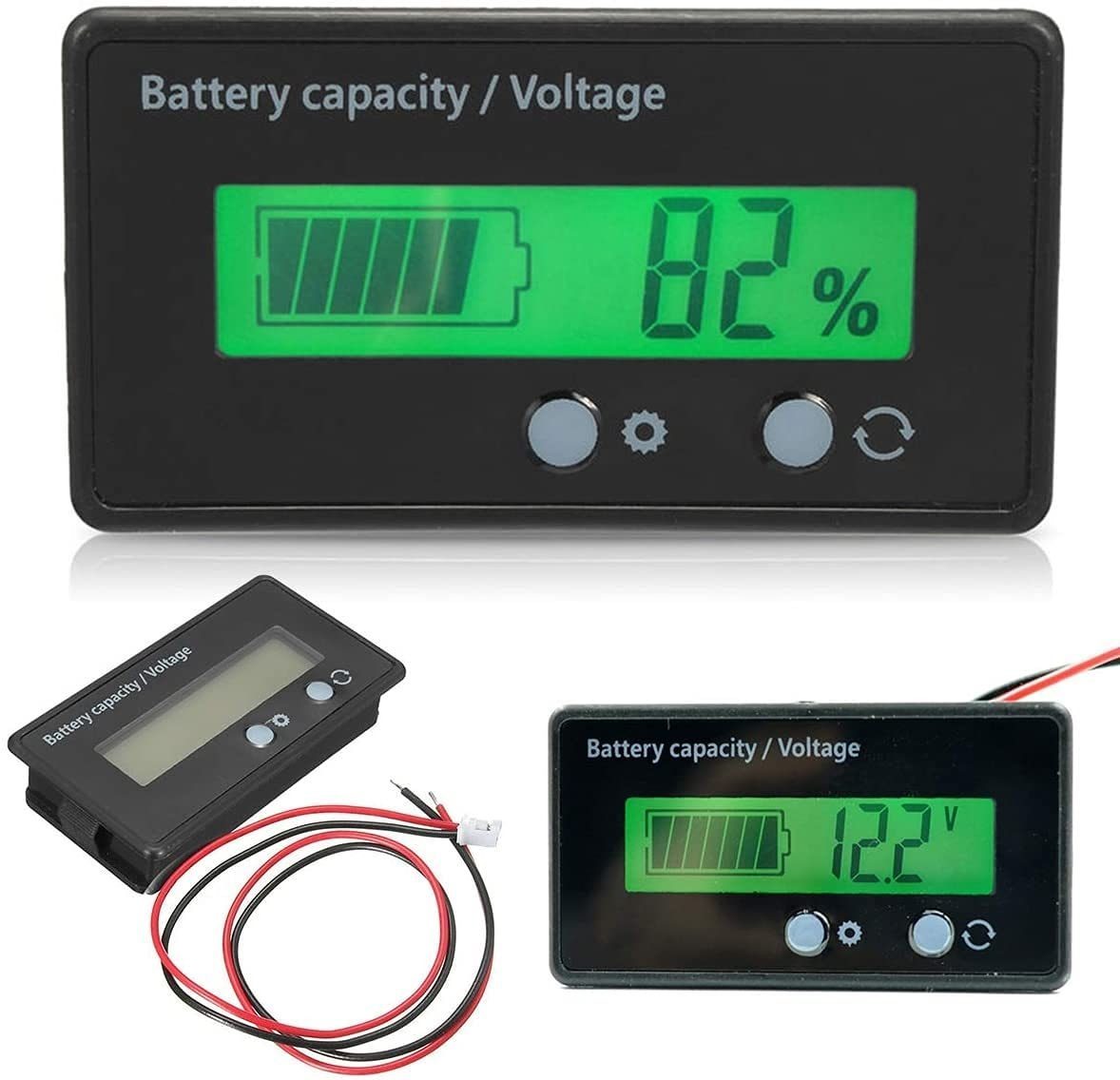

• High Quality of Battery Voltage meter and LCD Screen Display with Green backlight and low power consumption, Two display modes can be available: battery symbol and battery percentage, battery symbol and voltmeter.
• Battery Voltage Monitor Right Switch key can switch voltmeter, battery percentage, switch off. Left setting key have several functions: Cycle voltmeter/battery percentage, turn on the backlight, black, sleep mode, battery type selection etc

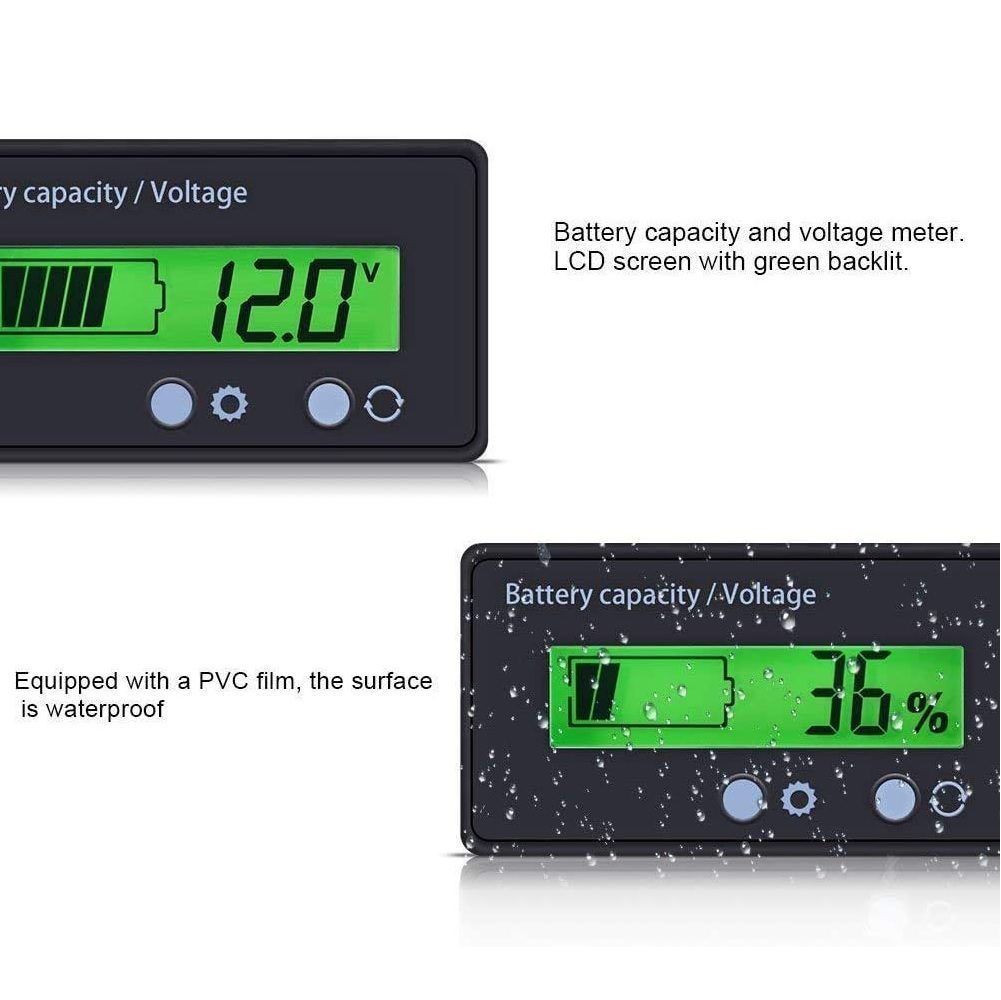

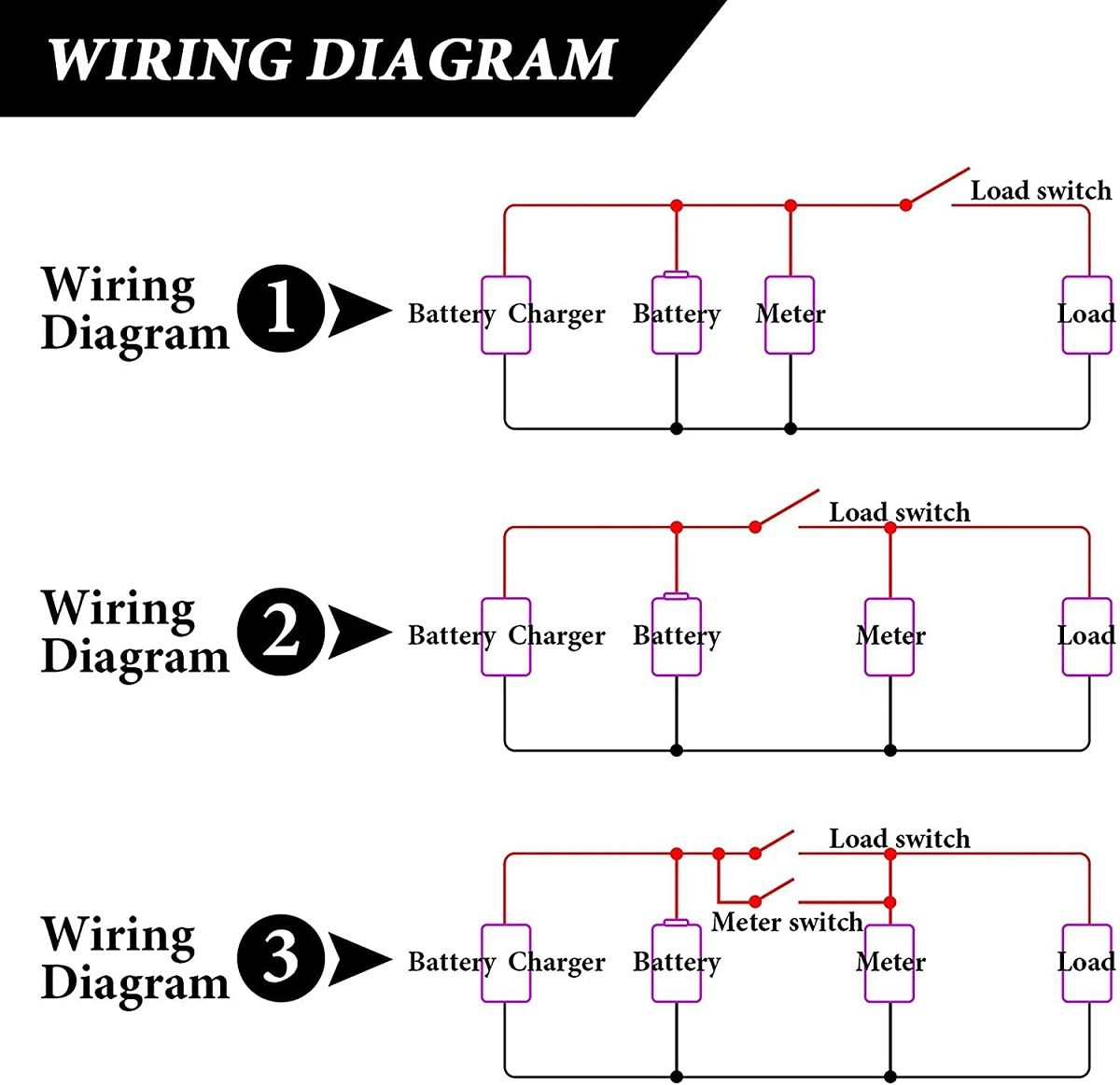

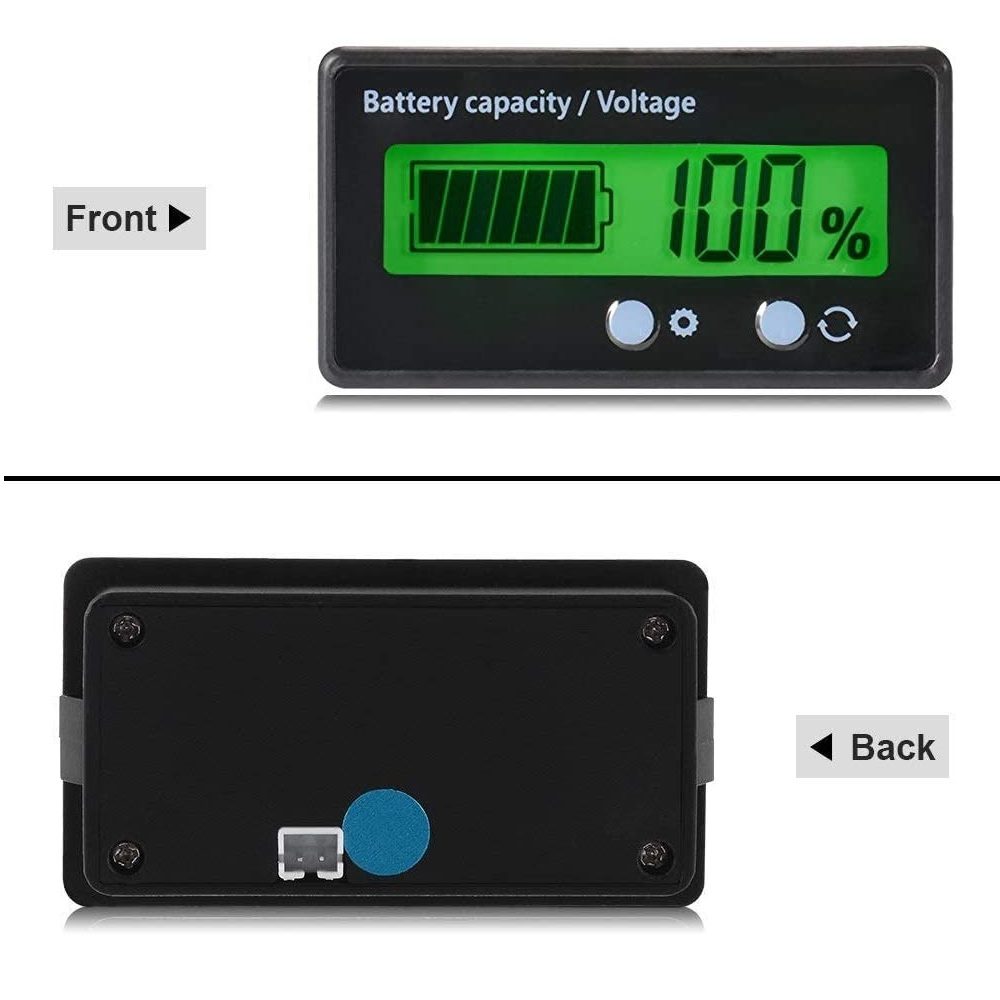

• The battery voltage meter Built-in 30cm power cable, simple to connect. Reverse protection design, won’t burn if connect reversely

Battery Selection:

• P=lead acid,
• L=lithium battery,
• F=lithium iron phosphate battery

Single string battery nominal voltage: Lead acid = 12V, lithium battery = 3.7V, lithium iron phosphate = 3.2V

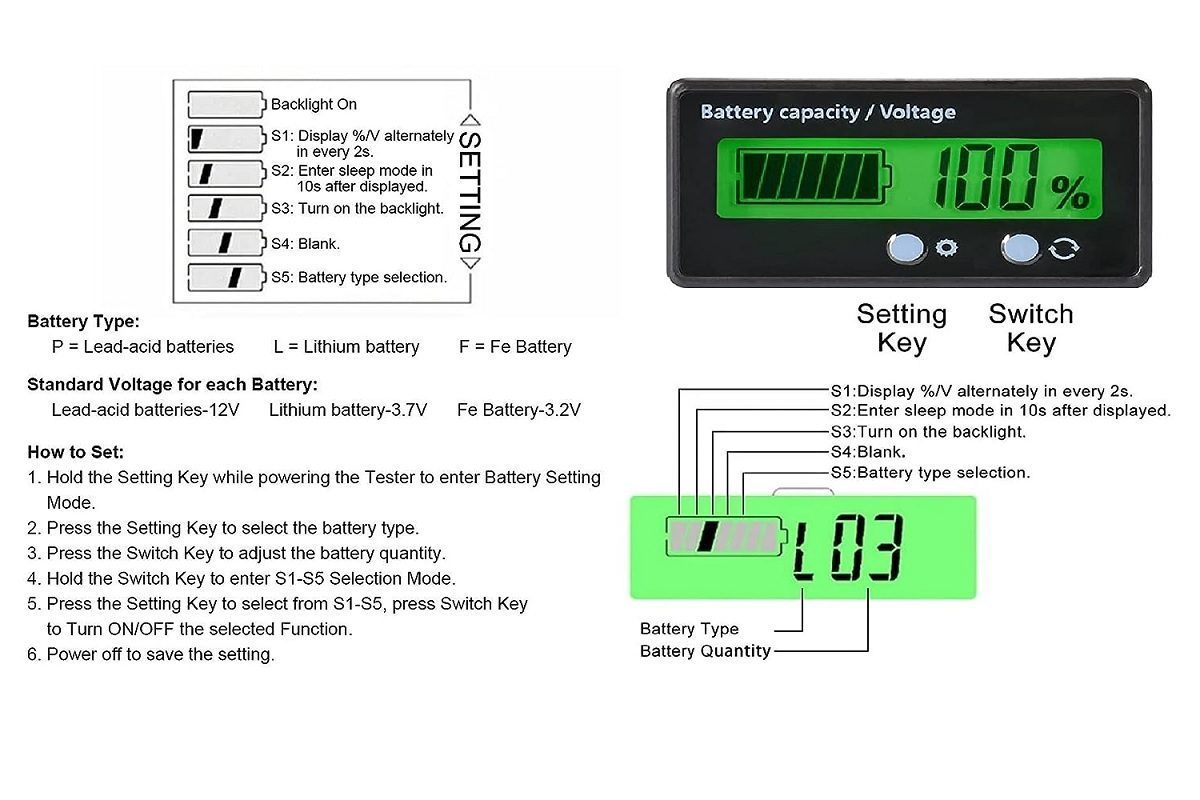

Setup steps

• Press and hold the setting button to power the battery, enter the setting interface
• Short press the setting button to select the battery specification (P=lead acid L=lithium battery F=lithium iron phosphate battery)
• Short press the function key to select the number of battery strings (the setting key is increased, the function key is reduced)
• After setting it, you can re-power it.
• S1: %/V 2 seconds in turn display
• S2: 10 second delay off
• S3: Turn on the backlight
• S4: Turn on LOGO
• S5: Battery curve selection

Instructions

• Press and hold switch on the product, power on, automatically select the interface ( please follow as the code corresponds blow)
• Select your battery type after corresponding, for example 3 series lithium battery, you need to enter the selection screen, press the key point to L3 interface, then off, re-energized, choose success, such as the need to set 12V lead-acid batteries, the key point press to P12V interface, power, re-energized, both choose success
• Instruments can be used if you Select successful . . Meter shows the power interface, tap switch, switch to voltage interface, click the switch, turn off the meter. cycle shown as the code corresponds

Code: Suitable for

• L3: 3 string lithium
• L4: 4 string lithium
• L5: 5 string lithium
• L6: 6 string lithium
• L7: 7 string lithium
• L8: 8 string lithium
• L9: 9 string lithium
• L10: 10 string lithium
• L11: 11 string lithium
• L12: 12 string lithium
• L13: 13 string lithium
• L14: 14 string lithium
• P12V: 12V lead-acid
• P24V: 24V lead-acid
• P36V: 36V lead-acid
• P48V: 48V lead-acid

Special Function Setting (requires electric iron, you must power off setting, electric iron must be grounded)

• A point connection, the backlight will be automatically shut down if delay10 seconds , the voltage fluctuation will automatic wake-up exceeds 0.3V / 0.5 seconds.
• B point connection, lithium choose 3-4.1V curve (lithium professionals)

Package Includes:

• 1 x 8-70V LCD Lead Acid Lithium Battery Capacity Indicator
