8-bit WS2812B 5050 RGB LED Built-in Full Color Driver Development Board (Straight)

8-bit WS2812B 5050 RGB LED Built-in Full Color Driver Development Board (Straight) is a great collection of WS2812B RGB Addressable LED Modules in a straight PCB. WS2812B is an intelligent LED that includes the photo diode and an addressable controller chip both are available and integrated into a single 5050 Components package. The major advantages of these LEDs are that one can access each LEDs individually and control the light as each LEDs has a unique address. These small LEDs with merely a centimeter in diameter can be connected in a daisy chain manners and many numbers of LEDs can be connected.

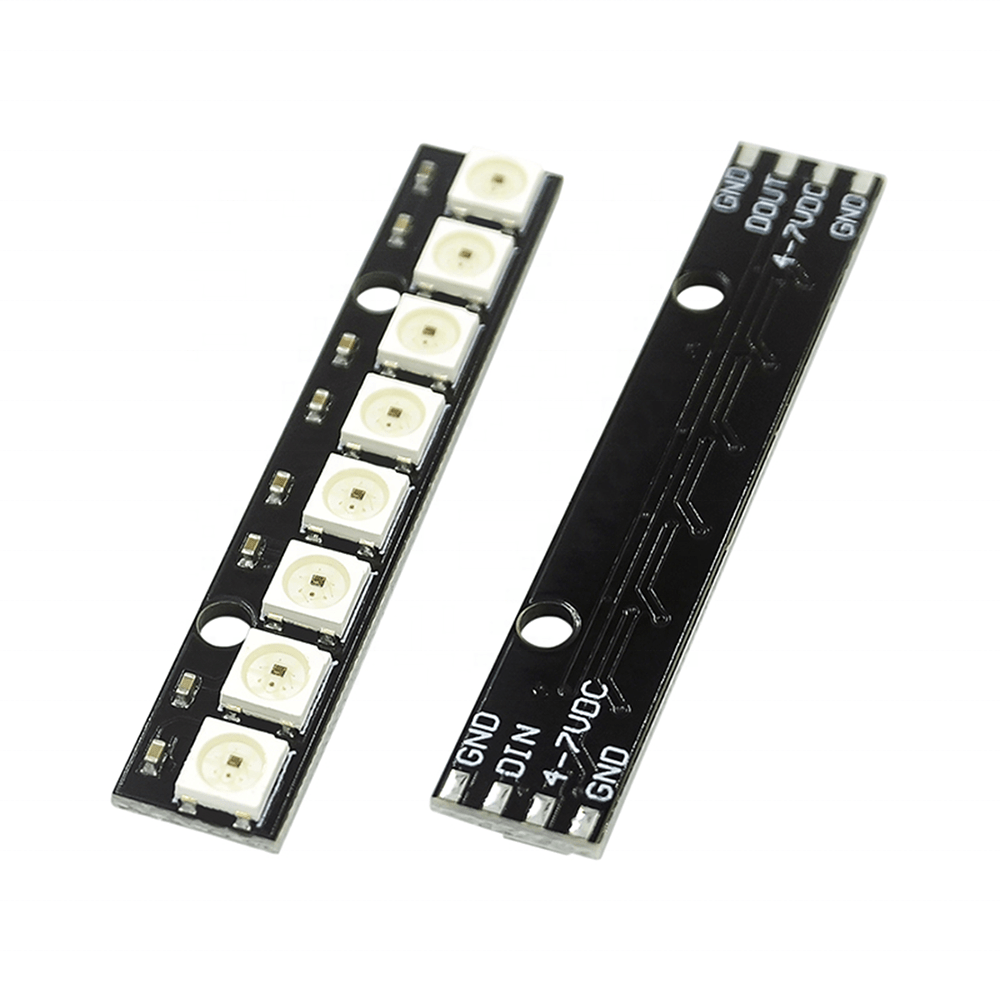

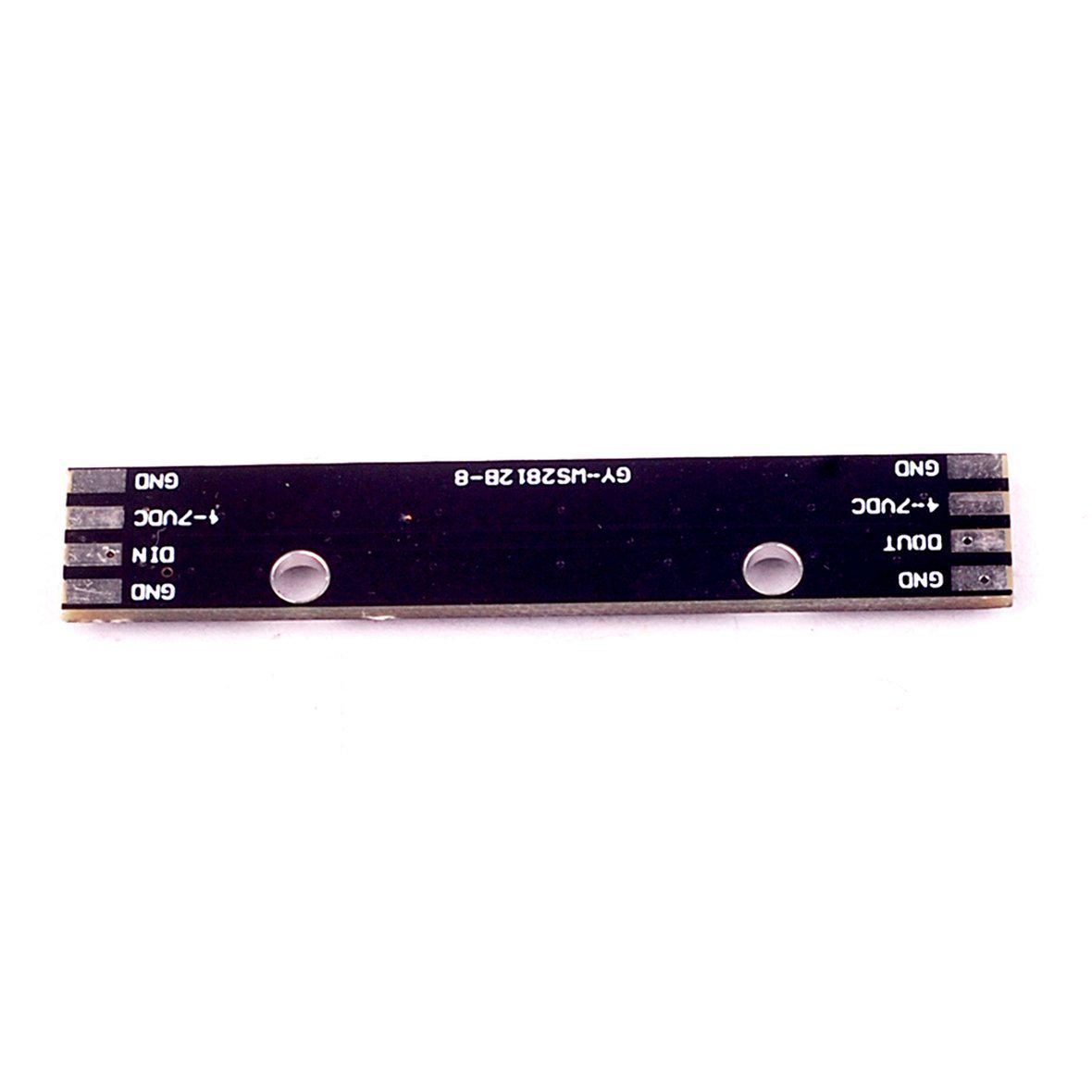

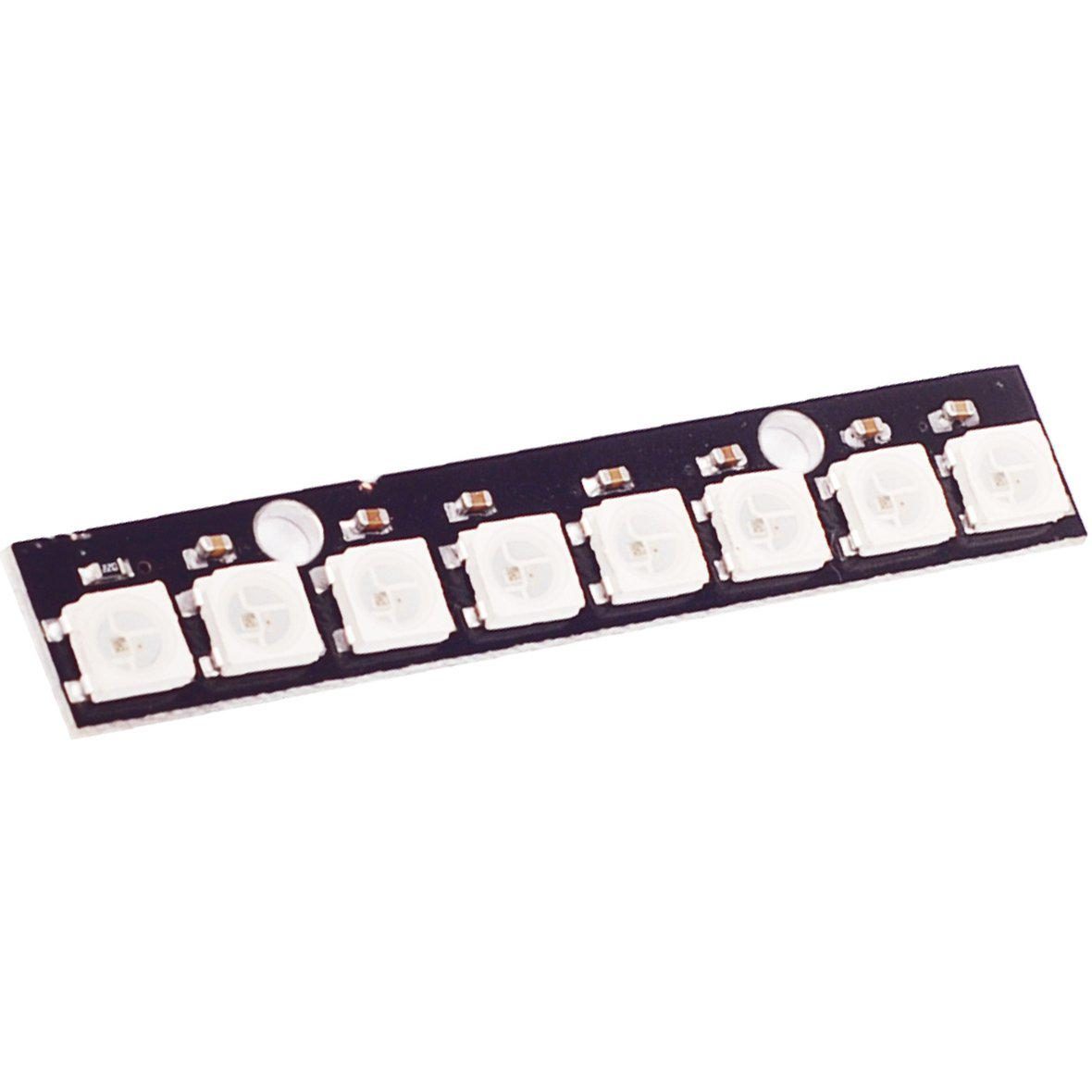

This Straight LED PCB consists of 8 WS2812 LEDs. The pinout of this PCB is GND, VCC, Input, Output. The daisy chain connection will follow in a way that the Input of a strip will be the Output of previous strip.

Features:

• Intelligent reverse connect protection, the power supply reverse connection does not damage the IC.
• The control circuit and the LED share the only power source.
• Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.
• Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.
• Cascading port transmission signal by single line.
• Any two point the distance more than 5m transmission signal without any increase circuit.
• When the refresh rate is 30fps, cascade number are not less than1024 points.
• Send data at speeds of 800Kbps.
• The color of the light were highly consistent, cost-effective.
• 120 degrees viewing angle

Specifications:

• IC Chip: WS2812
• Input Supply Voltage (VDC): 4 ~ 7, 5V Recommended
• Length (mm): 80
• Width (mm): 50
• Height (mm): 3
• Weight (gm): 1

Applications:

• Decorative Lighting
• LED lighting for special purposes
• Irregular LED display
• Notification Board
• LED based notification display
• Cascaded lighting

Package Includes:

• 1x WS2812B 8 Bit RGB LED (Straight – 8 LEDs)
