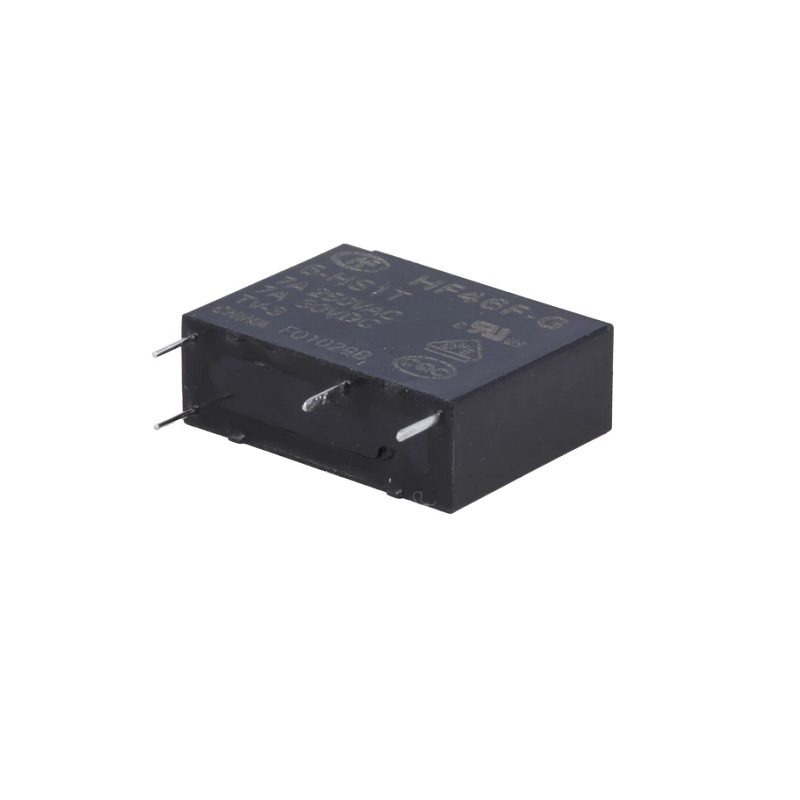

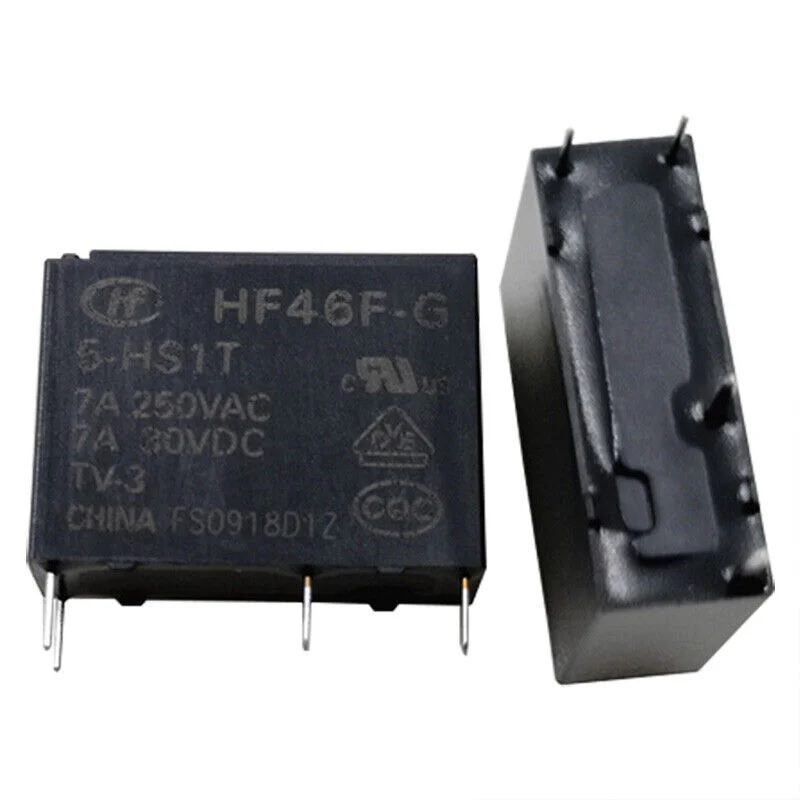

Hongfa HF46F-G Series 7A SPST 5V PCB Sealed Subminiature Intermediate Power Relay
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: ANIL2455HF46F-G Series 7A SPST 5V PCB Mount Relay – Hongfa is an electrically operated switch. It consists of a set of input terminals for single or multiple control signals and a set of operating contact terminals. The switch may have any number of contacts in multiple contact forms, such as making contacts, breaking contacts or combinations thereof.
Relays are the most commonly used switching devices in electronics. There are two important parameters of the relay, first is the Trigger Voltage, this is the voltage required to turn on the relay that is to change the contact from Common → NO.
Features & Specification:
- Brand: Hongfa
- Model : HF46F-G-5-HS1T
- Mounting: PCB-THT
- Contact Arrangement: 1 Form A
- Coil Voltage (DC): 5 V
- Construction: Plastic sealed
- Insulation standard: Class B
- Contact plating: Au plated, N/A
- Contact capacity: AgSnO2In2O3
- Operate time: < 10ms
- Insulation resistance: 1000MOhm
- Electrical Distance: 5.5mm
- Creepage Distance: 5.5mm
- Dielectric strength (between coil & contacts): 4000VAC 1min
- Max Switching Voltage (VDC): 30VDC
- Release time: < 10ms
- Ambient temperature: -40~105C
- Max Switching Current (AC): 7A
- Coil power: Approx 0.2W
- Mechanical endurance: 5000000
- Electrical endurance: 50000
- Max Switching Voltage (VAC): 277VAC
- Size: 20.5x7x15.3mm
- Weight: 3g
- Contact Current Rating: 7 A
Application:
- Industrial
- Home Automation
- General Purpose Relay
Package Includes:
- 1 x Hongfa HF46F-G Series 5V 7A Relay SPST
