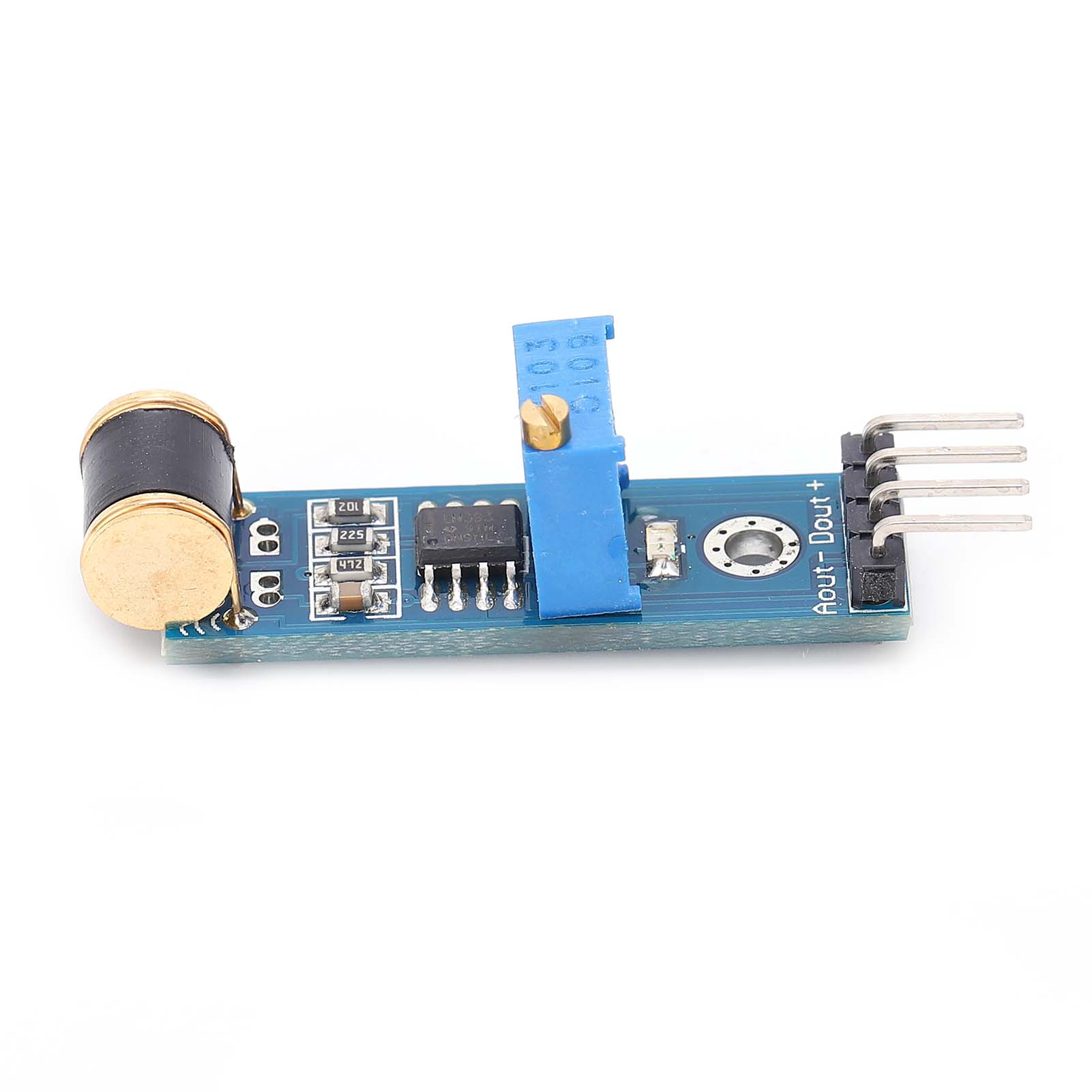

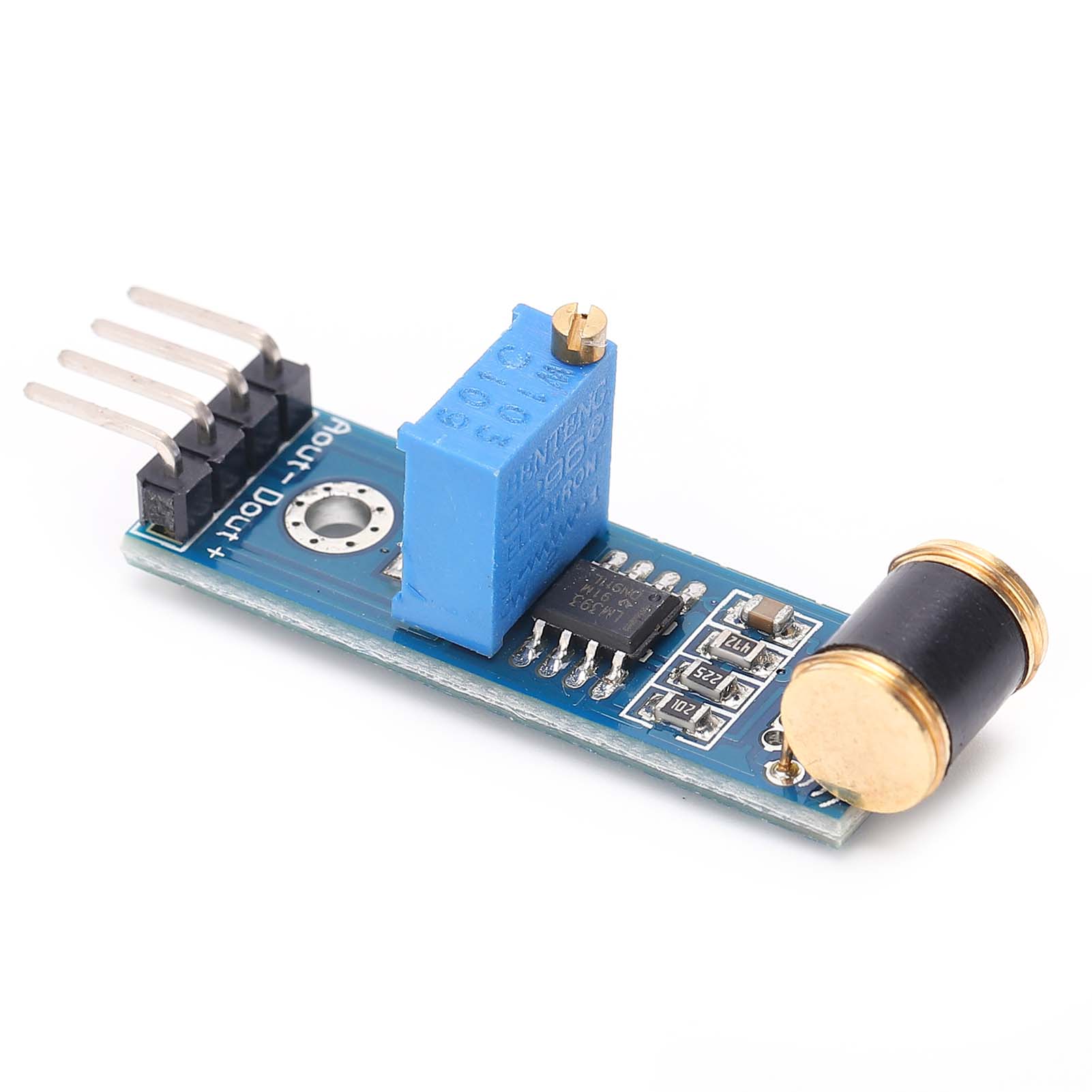

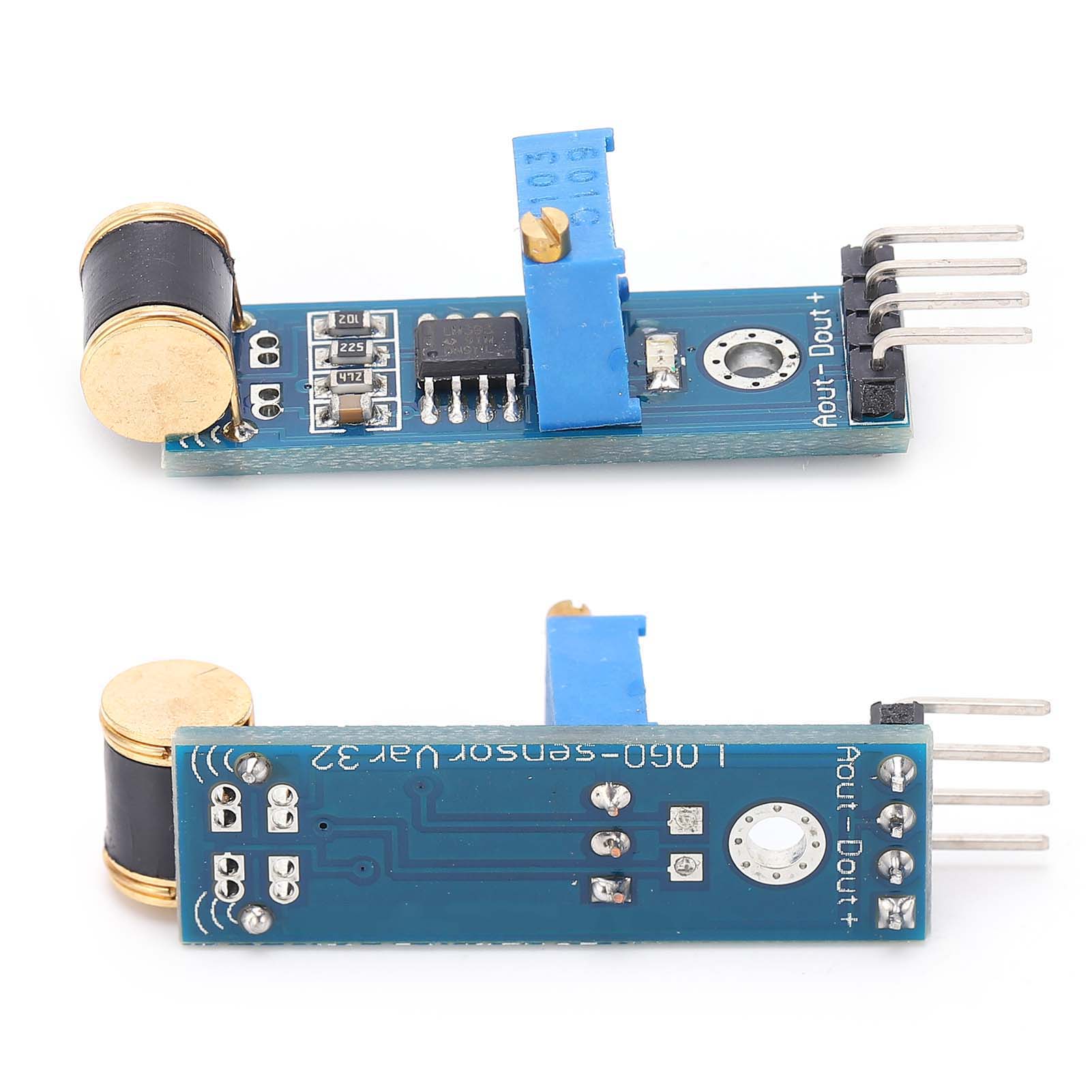

801S Vibration Shock Sensor Module

This 801S Vibration Shock Sensor Module changes its resistance level once vibration is detected. It can turn into a switch if the vibration is high. According to the datasheet, it is gold-plated and can withstand 60 million shocks.

This module is connected in a voltage divider which can be measured through its digital pinout. It’s a high sensitivity 801S Vibration Sensor module, which has one digital output pin(D0), When it detects some vibration up to a certain threshold, it can output High or Low level.

Comparing with other vibration or shock sensor, this 801S type has the following listed features:

• This Vibration sensor is based on the Hi high precision vibration sensor 801S
• it has 1 digital output
• The sensitivity of TTL output can be adjusted by the on-board potentiometer, you can also read the digital output with any ADC to get the vibration condition.

Features :

• Micro-Shock detecting
• 60,000,000 times shock guarantee (special gold alloy plated)
• Has a signal output instruction
• Digital output signal
• Sensitivity of TTL output can be adjusted by the on-board potentiometer, you can also read the digital output with any ADC to get the vibration condition.
• The output valid signal is high, the light goes out
• The sensitivity is adjustable (fine-tuning)
• The wide detection range of vibration, no direction
• With mounting holes, firmware installation is flexible and convenient.

Specifications:

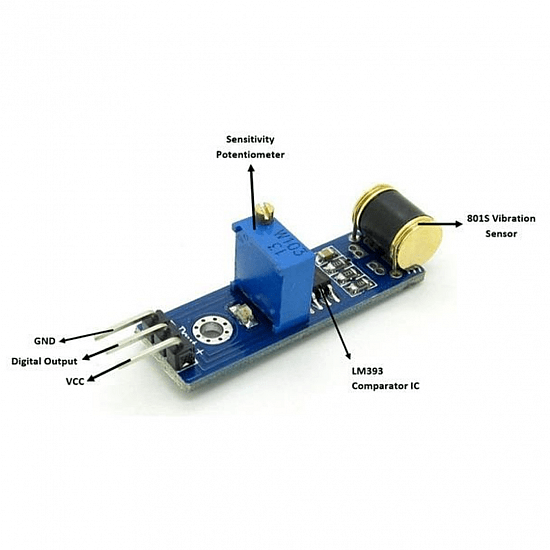

• IC Chip: LM393
• Operating Voltage (VDC): 3 ~ 5
• PCB Size ( L x W ) mm: 35 x 12
• Height (mm): 9
• Weight (g): 5

Package Includes :

• 1 x 801S Vibration Shock Sensor Module

Note:

• This sensor is 3 pin sensor. Image is just for reference only. Schematic image of sensor shown with 3 pin will be supplied.
