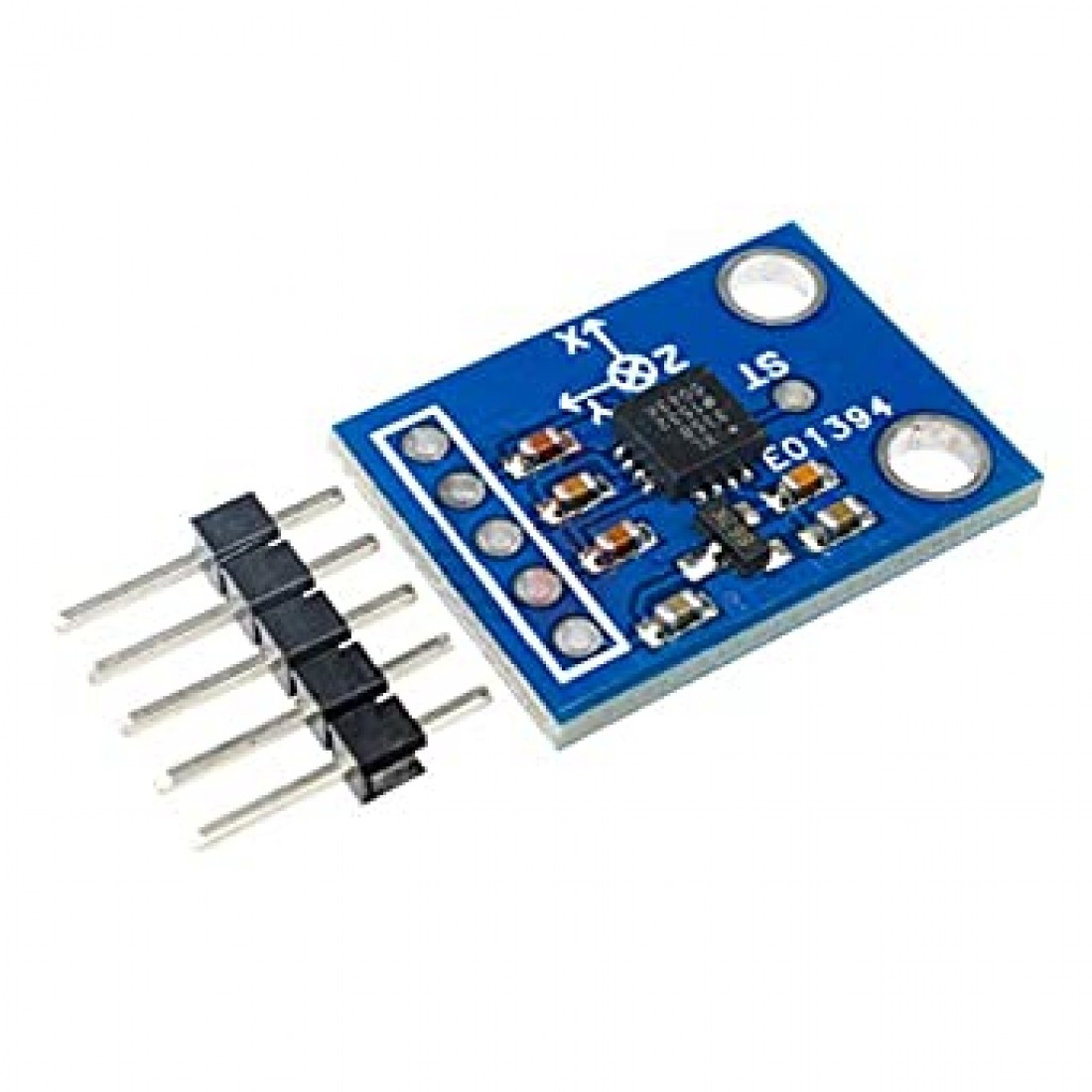

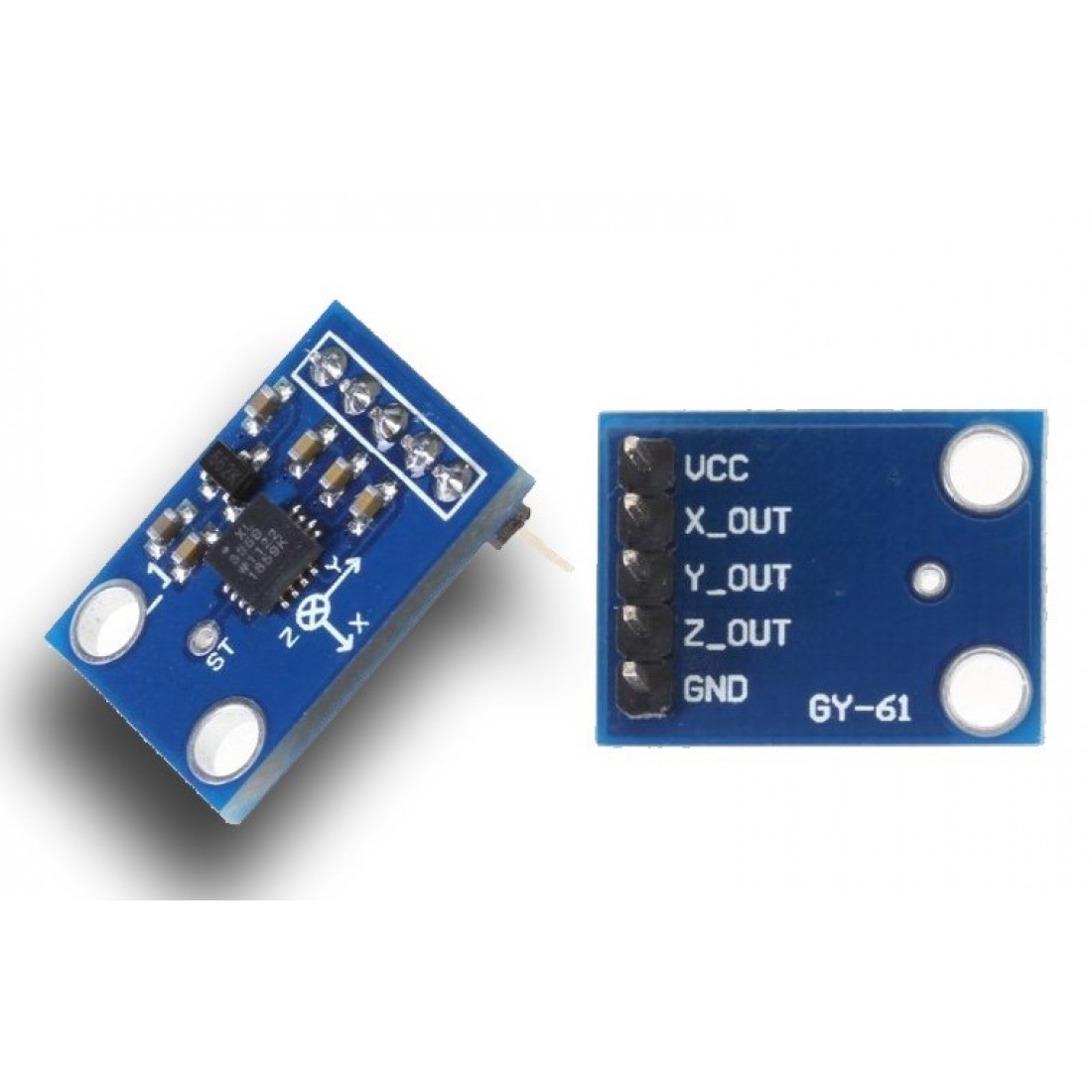

ADXL335 3-axis Analog Output Accelerometer Module

ADXL335 3-axis Analog Output Accelerometer Module is a low power, complete 3-axis accelerometer with signal conditioned voltage outputs. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration. This breakout board comes with an on-board voltage regulator and works at both 3.3V & 5V (3-5V) .

ADXL335 is a Breakout board based on 3-axis ADXL335 IC from Analog Devices. The Accelerometer Module require no external devices and works on 5V power supply. It can be directly interfaced to ADC of a micro-controller without any external components.  This module can be used to sense motion or tilt(in case of non moving) in 3 axis.This is the latest in a long, proven line of Analog Sensors- the holy grail of accelerometers. The ADXL335 is a triple axis MEMS accelerometer with extremely low noise and power consumption - only 40uA! The sensor has a full sensing range of +/-3g The burst echo to return to the sensor. By measuring the echo pulse width, the distance to target can easily be calculated.

Features :

• Onboard LDO Voltage regulator
• Can be interfaced with 3V3 or 5V Microcontroller.
• All necessary Components are populated.
• Ultra Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V
• Tap/Double Tap Detection
• Free-Fall Detection
• Analog output
• Build in ultra low noise linear LDO voltage regulator
• Built-in onboard filters, which reduce noise from the motor and other high current electronics
• All sensors connected to the I2C bus
• You can easily select two I2C address for MPU6050 by soldered jumper
• Power LED
• Build in Logic level converter for I2C
• Designed for 5V logic level
• 3-axis sensing.
• Small, low profile package.
• 10,000 g shock survival.
• Excellent temperature stability.
• BW adjustment with a single capacitor per axis.
• RoHS/WEEE lead-free compliant.

Specifications:

Applications :

• FPV, RC and Robots systems
• GPS navigation systems
• Impact recognition and logging
• Gaming and virtual reality input devices
• Motion-activated functions
• Intelligent power saving for handheld devices
• Vibration monitoring and compensation
• Free-fall detection
• 6D-orientation detection

Package Includes :

• 1 X ADXL335  3-axis Analog Output Accelerometer Module
