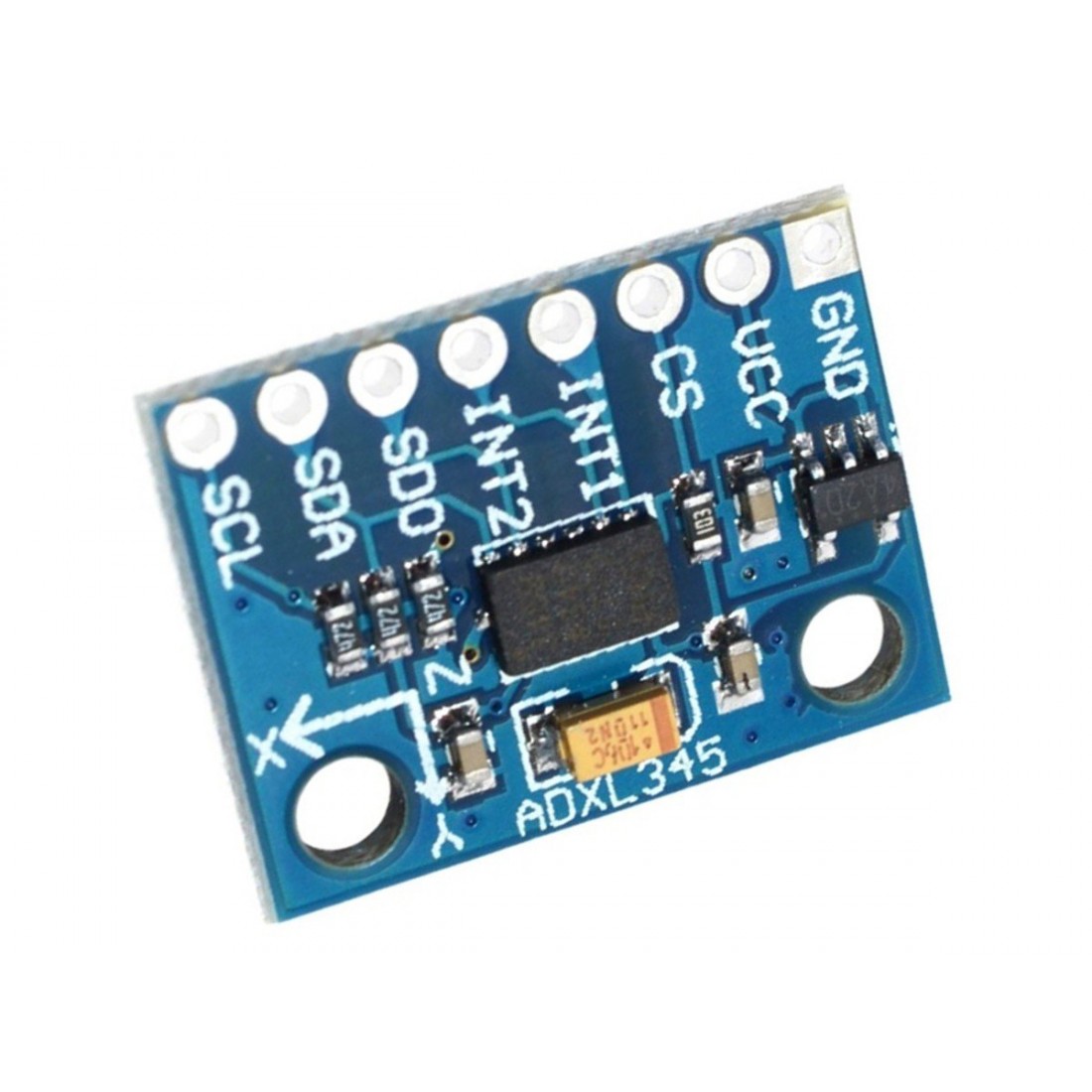

ADXL345 Triple Axis Accelerometer Board

ADXL345 Triple Axis Accelerometer Board is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16g. Digital output data is format as 16-bit twos complement and is accessible through either an SPI (3- or 4-wire) or I2C digital interface.

The ADXL345 Triple Axis Accelerometer Board is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°.

Several special sensing functions are provided. Activity and inactivity sensing detect the presence or lack of motion and if the acceleration on any axis exceeds a user-set level. Tap sensing detects single and double taps. Free-fall sensing detects if the device is falling. These functions can be mapped to one of two interrupt output pins. An integrated, patent-pending 32-level first-in, first-out (FIFO) buffer can be used to store data to minimize host processor intervention.

Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at extremely low power dissipation.

Features :

• Ultra-Low Power: 40µA in measurement mode, 0.1µA in standby@ 2.5V.
• Free-Fall Detection.
• Tap/Double Tap Detection.
• Flexible interrupt modes mappable to either interrupt pin Measurement ranges selectable via serial command Bandwidth selectable via serial command
• Wide temperature range (−40°C to +85°C).
• 10,000 g shock survival.
• Support 5V/3.3V voltage input, onboard RT9161 power chip, lower pressure drop faster than 1117, the faster load speed of response, very suitable for high-noise power supply environment.
• User-selectable resolution
• Fixed 10-bit resolution.
• Full resolution, where resolution increases with G range, up to 13-bit resolution at ±16 g (maintaining 4 mg/LSB scale factor in all G ranges).

Specifications:

Applications :

• Pointing devices.
• Handsets.
• Medical Instrumentation.
• Gaming.
• Industrial instrumentation.
• Personal navigation devices.
• Hard disk drive (HDD) protection.
• Fitness equipment.
• defense and aerospace.

Package Includes :

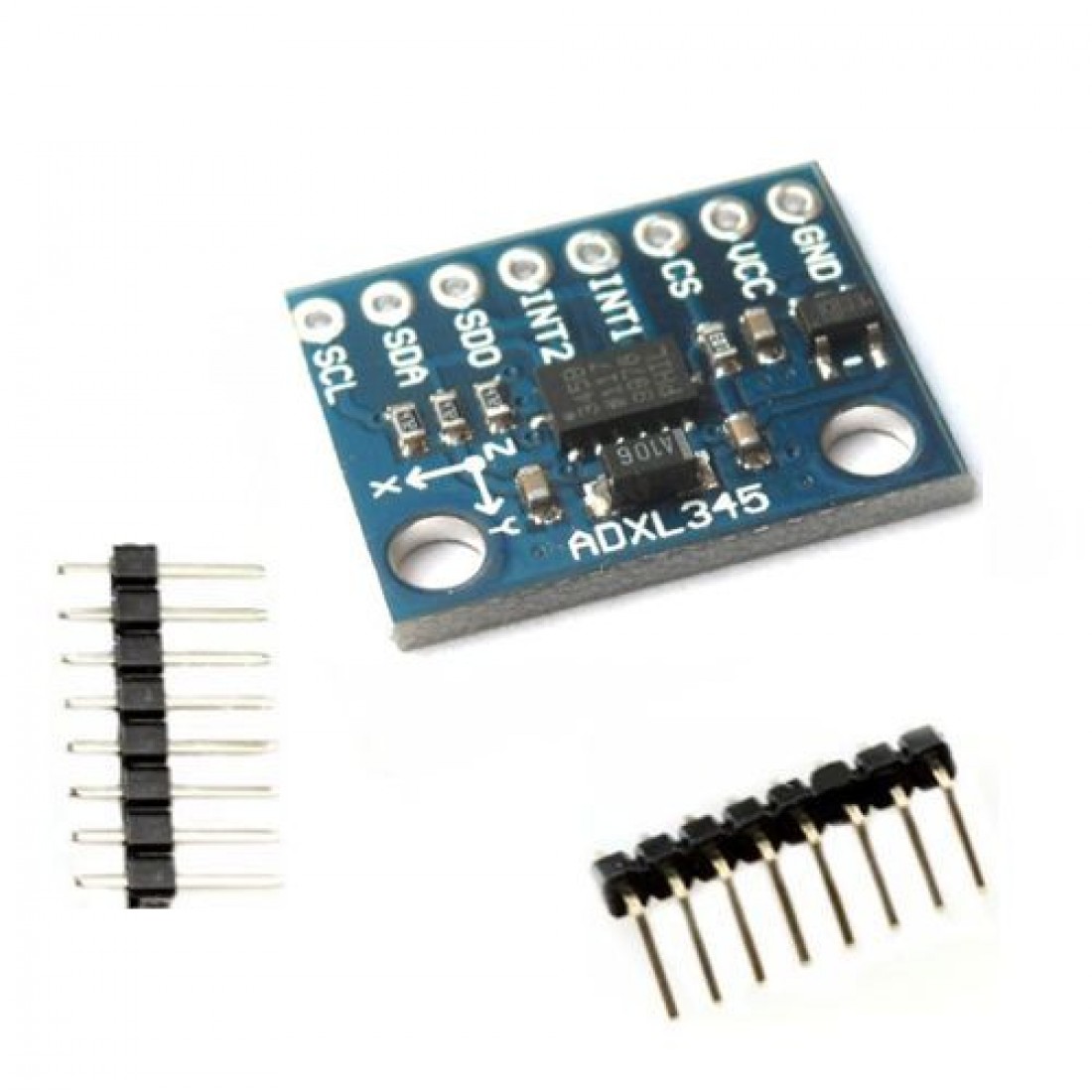

• 1 x ADXL345 Tripple Axis Accelerometer Board.
