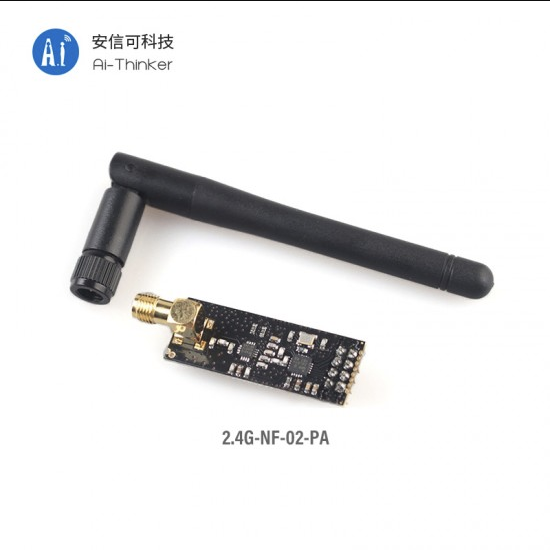

Ai-Thinker Ultra-Long Distance NF-02-PA 2.4G Wireless Module Base on nRF24L01
Ai-Thinker Ultra-Long Distance NF-02-PA 2.4G Wireless Module Base on nRF24L01
Ai-Thinker Ultra-Long Distance NF-02-PA 2.4G Wireless Module Base on nRF24L01 is best for long distance RF communication with best in quality results. The core of the 2.4G+PA (NF-02-PA) wireless module is the latest high-performance wireless from Norwegian NORDIC.
The digital transmission chip NRF24L01+, combined with the professional design of the company, has added high-power PA and LNA chips, RF switches, band-pass filters, etc. to form a professional full-two-way RF power amplifier, which greatly expands the effective communication distance.
In the RF part, the company has done a lot of optimization and matching debugging, which makes the emission efficiency high and the harmonics small.
The radio frequency interference of the 2.4G+PA (NF-02-PA) wireless module to the external device is very low, and is not easily interfered by other devices, thereby greatly improving the stability of the work.
Specifications :
|
Model |
NF-02-PA |
|
Package |
DIP-8 |
|
Size |
40.8*15.3mm |
|
Communication Interface |
SPI (Up to 10Mbps) |
|
Data Rate |
250k~2Mbps, 3 Levels Adjustable (250kbps/ 1Mbps/ 2Mbps) |
|
Frequency Band |
2400MHz~2525MHz Adjustable, 1MHz Step |
|
Antenna Type |
External antenna, Gain 20dBi |
|
Transmitted Power |
20dBm |
|
PA Gain |
20dB |
|
LNA Gain |
10dB |
|
Receive sensitivity |
-104dBm@250kbps |
|
Average Current |
Tx: 115mA (20dBm) Rx: 45mA (2Mbps) Turn off current: 4.2uA (Shutdown Mode) |
|
Supply Voltage |
3.0~3.6V, Typical 3.3V |
|
Operating Temperature |
-20℃~85℃ |
|
Storage Temperature |
-20℃~90℃, <90%RH |
Package Includes:
- 1 x Ai-Thinker Ultra-Long Distance NF-02-PA 2.4G Wireless Module Base on nRF24L01
- 1 x Foldable Antenna
