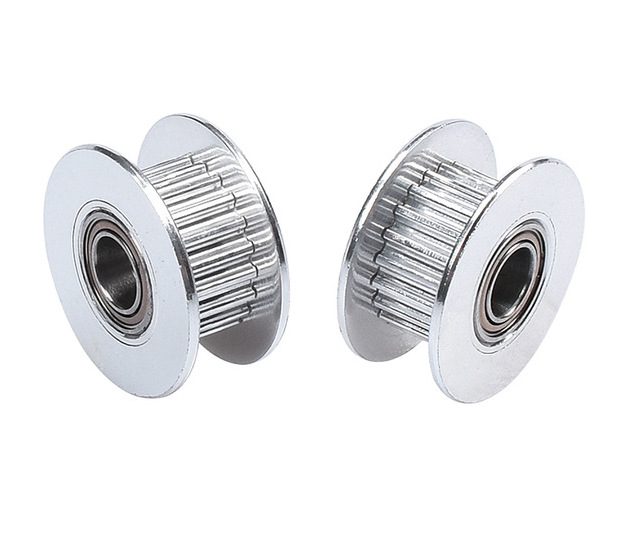

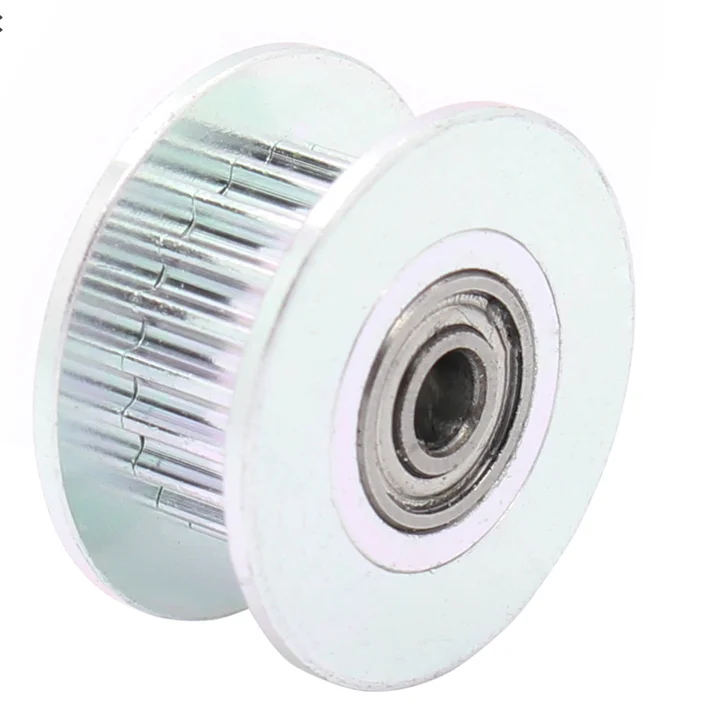

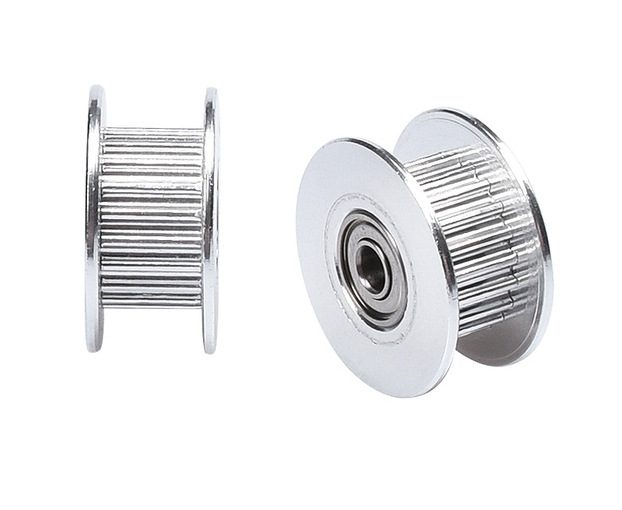

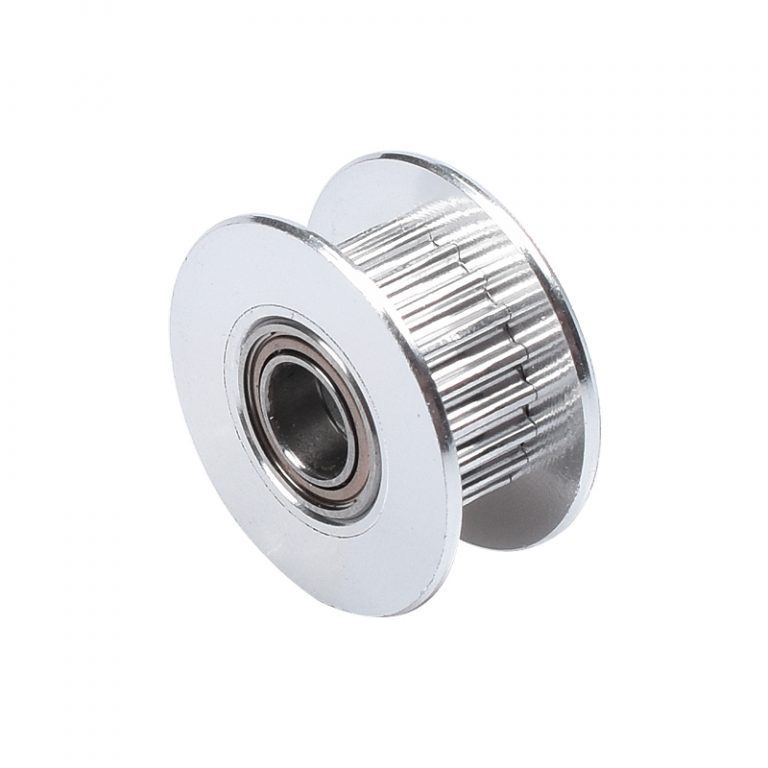

Aluminum GT2 Timing Idler Pulley For 6mm Belt 20 Teeth 4mm Bore

Aluminum GT2 Timing Idler Pulley For 6mm Belt 20 Teeth 4mm Bore pulley works with GT2 6mm wide timing belt; it will work perfectly with GT2 pulley-belt sets we are selling in our store. This idler is a good match for 20T GT2 driving Timing Belt Pulley.

Many DIY 3D printer makers are using idler pulleys based on 3D Printed wheels. Inaccurate printed idler decrease printing quality and create vibrations since the outside diameter of the idler is not concentric to the rotation axis. Other makers are using double bearings with stationary washers clamped from both sides.

This solution is not ideal since there is friction between the moving belt to the stationary washers. Our Dual BB Aluminum Idler Pulley is a simple and inexpensive solution to this problem.

Note: These Idler pulleys are used for providing tension in the belt of 3D printers.

Specifications:

• Material: Aluminium
• Inner Diameter (ID) (mm): 4
• Outer Diameter (OD)(mm): 18 mm
• No. of teeth: 20
• No. of Bearings: 2
• Width (mm): 8.5
• Weight (gm): 6

Package Includes :

• 1 x Aluminum GT2 Timing Idler Pulley For 6mm Belt 20 Tooth 4mm Bore
