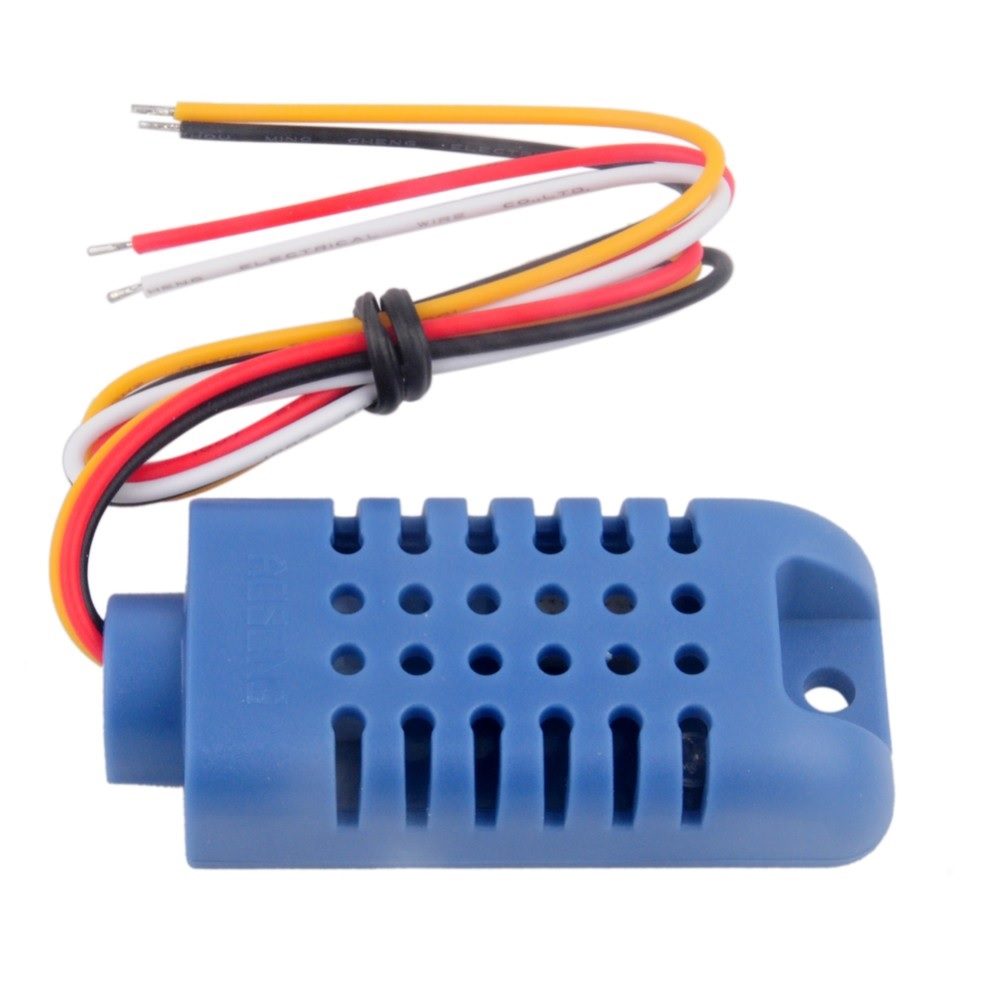

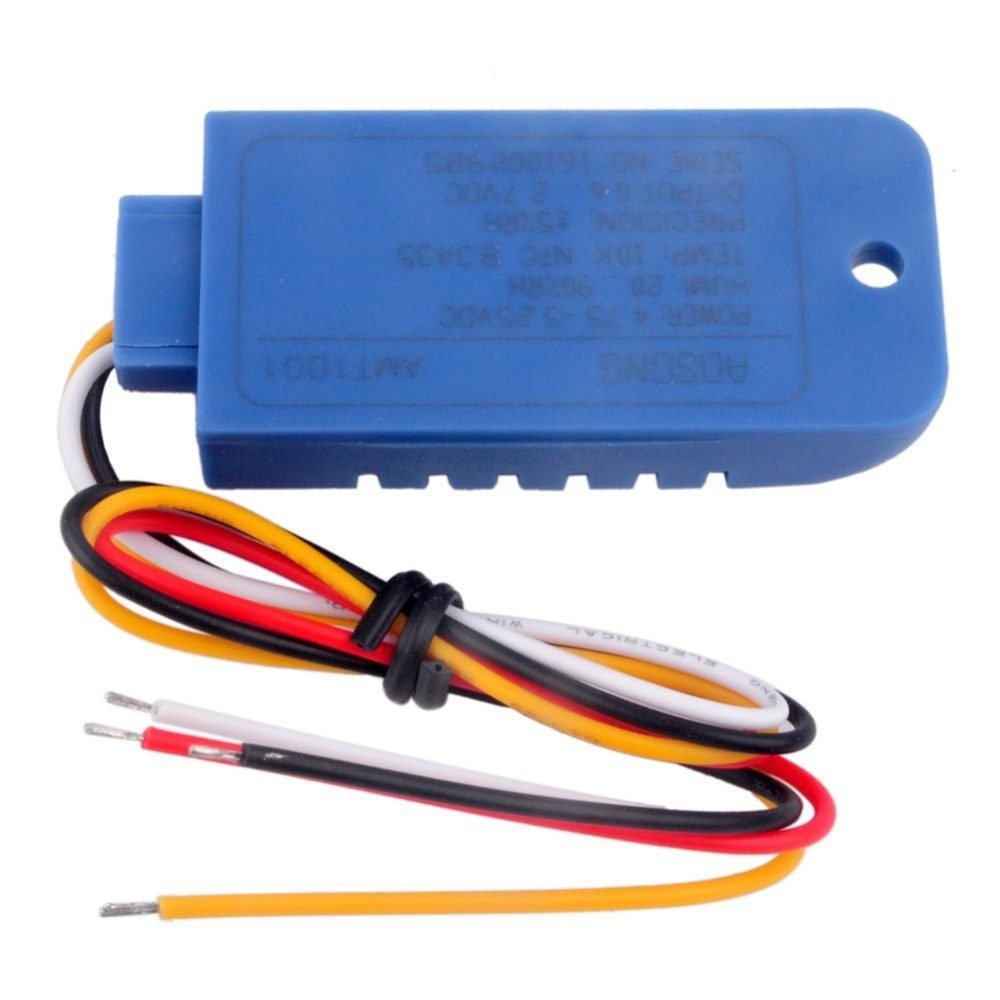

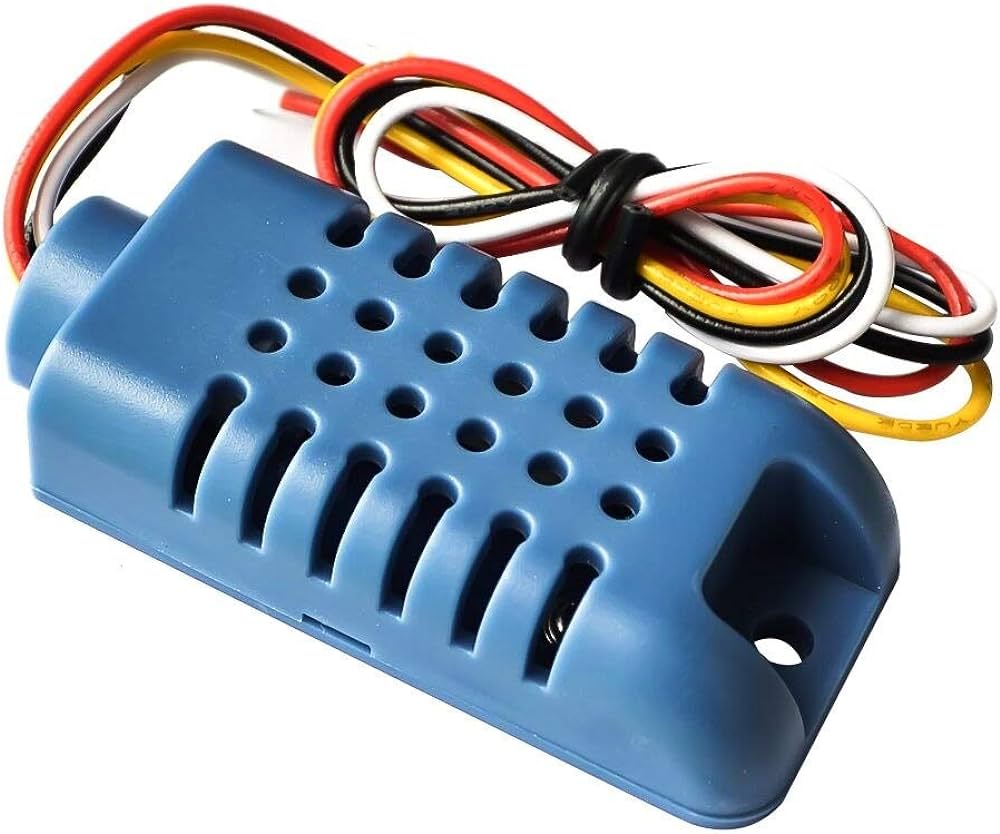

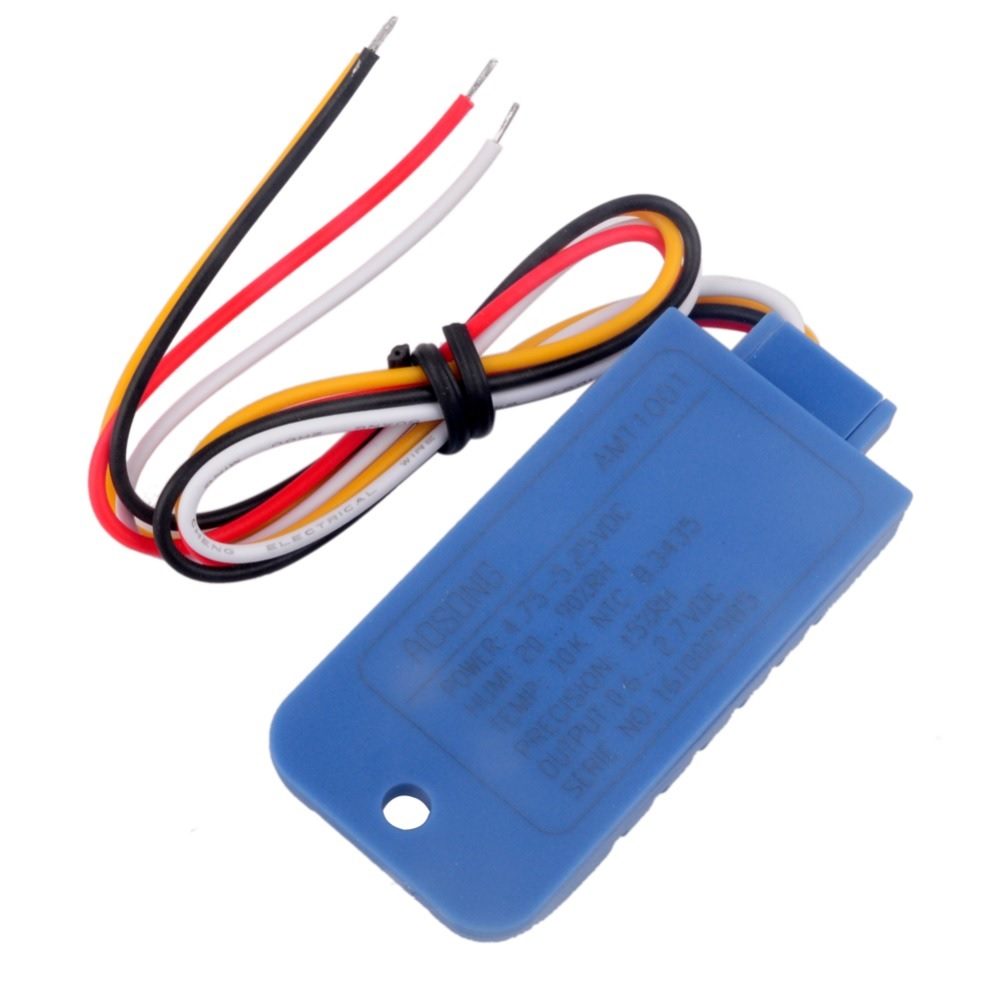

AMT1001 Resistive Humidity and Temperature Sensor Module

AMT1001 Resistive Humidity and Temperature Sensor Module in which AMT1001 is an integrated temperature and humidity sensor; sensor signals using analog voltage output.

This module has high accuracy, high reliability, consistency; and has been with temperature compensation to ensure long-term stability, ease of use and low price and other characteristics; especially suitable for the quality, cost requirements more demanding businesses.

Features:

• Low power consumption, small size, with temperature compensation.
• Calibration microcontroller linear output, ease of use, low cost.
• Completely interchangeable.
• long-distance signal transmission.
• Precise calibration.
• Storage humidity range: 95% RH (no condensing).

Specifications:

• Supply voltage (V): DC5V ± 5%
• Current Consumption: 2mA (MAX 5mA)
• Operating temperature range (°C): 0 ~ 60
• Humidity range: 95% RH
• Humidity measuring range: 20 ~ 95% RH
• Storage temperature range (°C): 0 ~ 60
• Humidity measurement accuracy: ± 5% RH (condition: at 25 ƒ)
• Cable Length (cm): 23
• Length (mm): 60
• Width (mm): 27
• Height (mm): 13.5
• Weight (gm): 15

Applications:

• HVAC air conditioners.
• Humidifiers.
• Dehumidifiers.
• Communication.
• Atmospheric environmental monitoring.
• Industrial process control.
• Agriculture.
• Measuring instruments and other applications.

Package Includes:

• 1 x AMT1001 Resistive Humidity and Temperature Sensor Module.
