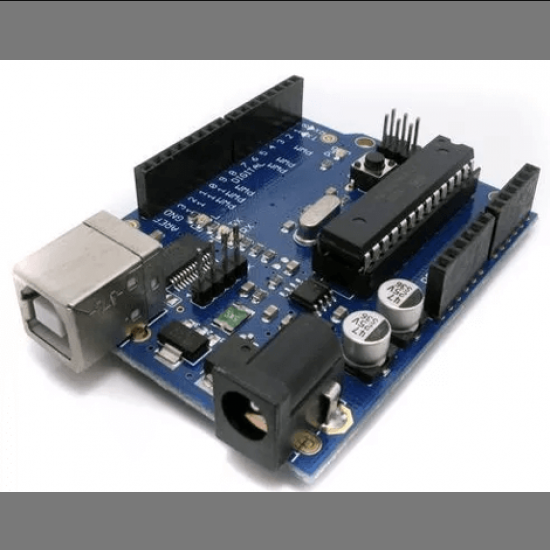

Arduino Compatible Duemilanove Atmega328 Board - USB
memory Technical Parameters & Datasheet Summary
SKU: Anil427-2Arduino Compatible - Duemilanove Atmega328 - USB
This Arduino Compatible - Duemilanove Atmega328 is an open-source physical computing platform based on a simple I/O board and a development environment that implements the Processing/Wiring language. It can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, Max MSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).
This board comes fully assembled and tested with ATMega328 pre-loaded with boot loader. The Arduino Duemilanove is a microcontroller board based on the ATmega328.
It has:
- 14 digital input/output pins (of which 6 can be used as PWM outputs),
- 6 analog inputs, a 16 MHz crystal oscillator,
- 1 USB connection,
- 1 power jack,
- 1 ICSP header,
- 1 reset button.
It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. USB cable for connecting PC is included. "Duemilanove" means 2009 in Italian and is named after the year of its release.
Specifications:
| Microcontroller | ATmega328 |
| Operating Voltage (logic level) | 5 V |
| Input Voltage (recommended) | 7-12 V |
| Input Voltage (limits) | 6-20 V |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| Analog Input Pins | 6 |
| DC Current per I/O Pin | 40 mA |
| DC Current per 3.3V Pin | 150 mA |
| Flash Memory | 32 KB (ATmega328) of which 0.5 KB used by bootloader |
| SRAM | 2 KB (ATmega328) |
| EEPROM | 1 KB (ATmega328) |
| Clock Speed | 16 MHz |
Package Contents:
- 1 X Arduino Compatible - Duemilanove Atmega328 - USB
