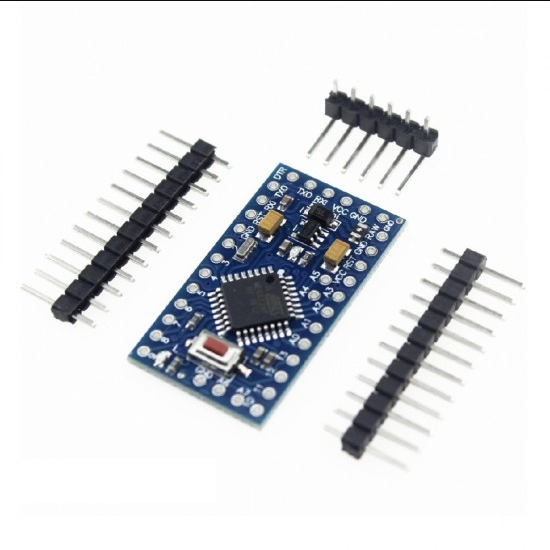

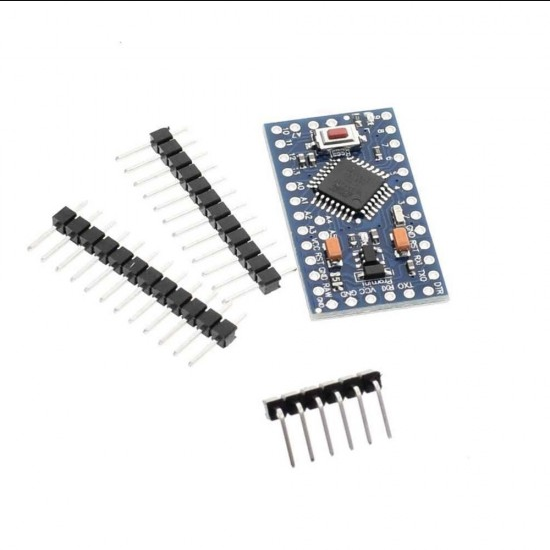

Pro Mini ATMEGA328P 5V/16M for Arduino

Arduino ProMini 328 - 5V/16MHz is a 5V Arduino running the 16MHz boot loader (select 'Arduino Pro or Pro Mini (5V, 16 MHz) w/ ATmega328' within the Arduino software). Arduino Pro Mini does not come with connectors populated so that you can soldering any connector or wire with any orientation you need. The Arduino Pro series is meant for users with the limitations of system voltage (5V), lack of connectors, and USB off board.

The Arduino Pro Mini is like the Arduino Mini (same pin out) but to keep a low cost, all SMD components are used, made it two layer, etc. This board connects directly to the FTDI Basic Breakout board and supports auto-reset. The Arduino Pro Mini also works with the FTDI cable, but the FTDI cable does not bring out the DTR pin so the auto-reset feature will not work.

Features :

• ATmega328 running at 16MHz with external resonator (0.5% tolerance)
• 0.8mm Thin PCB
• USB connection off board
• Supports auto-reset
• 5V regulator
• Max 150mA output
• Over-current protected
• Weighs less than 2 grams!
• DC input 5V up to 12V
• Onboard Power and Status LEDs
• Support serial download

Specification:

Package Includes :

• 1 x Arduino Pro Mini - ATMEGA 328P - 5V /16Mhz
