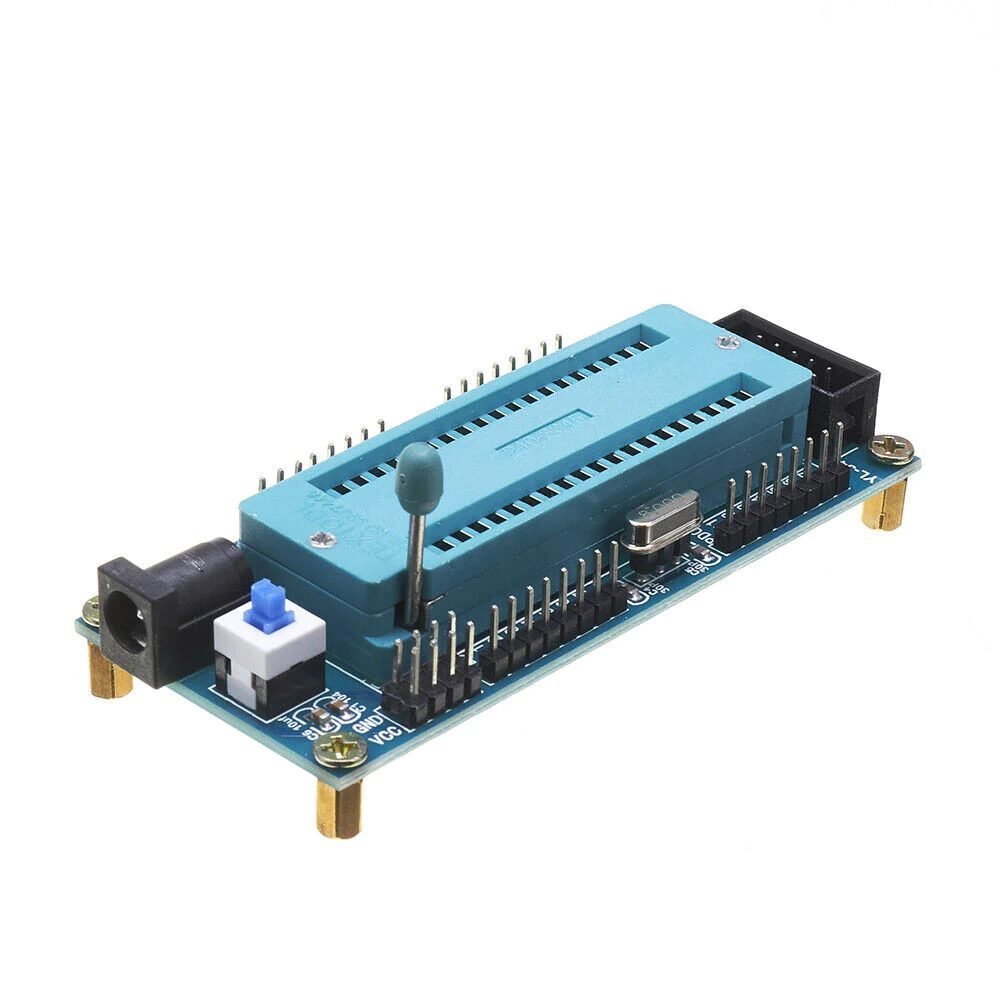

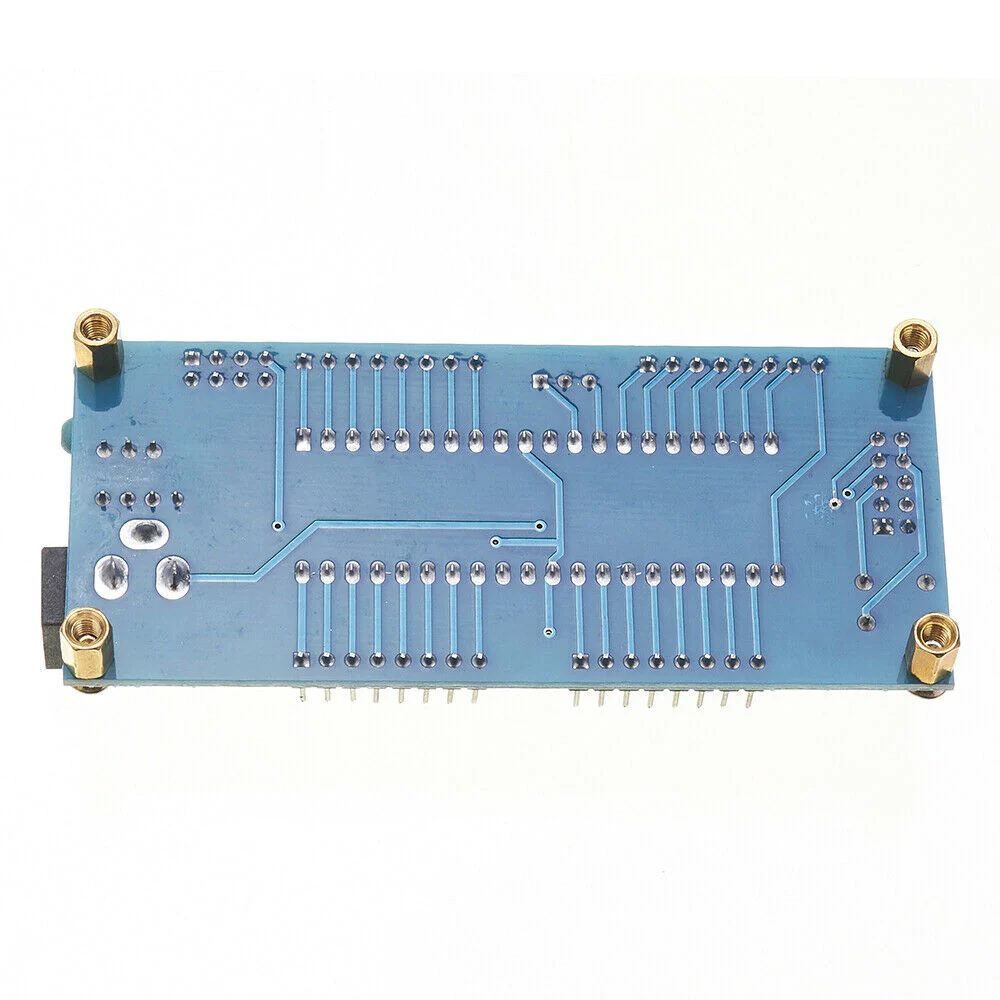

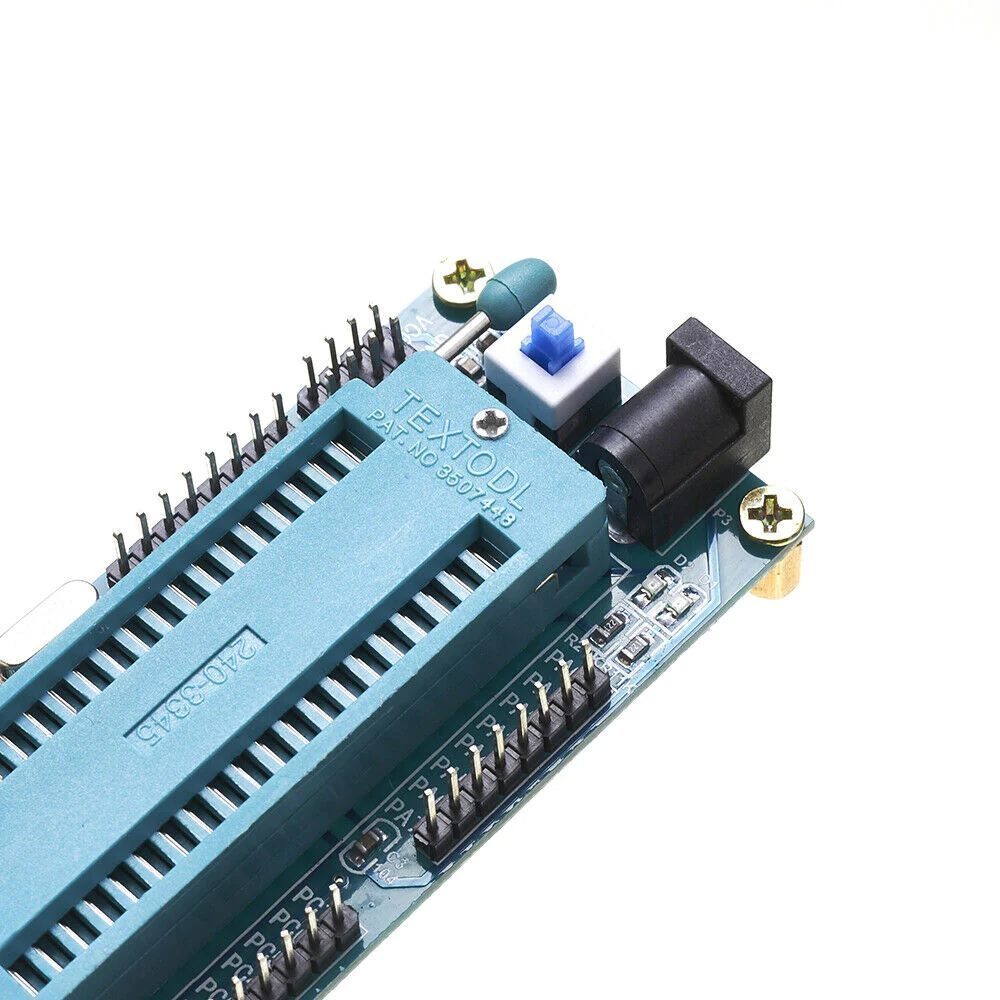

ATMEGA16 ATmega32 ISP AVR Minimum Development System Board Module

ATMEGA16 ATmega32 ISP AVR Minimum Development System Board Module is based on Thomas Fischl’s USBasp design and connects to your computer’s USB port. Not only is it quite compact, but the design is really elegant. The USB interface is achieved by using an atmega processor and the rest is done in firmware. With 500mA over-current protection self-recovery fuse, and complete protection of expensive computer motherboard designed for notebook computers, special two 3.6V regulator, a perfect match to level, get rid of the instability of hardware hidden! Target board power mode jumper settings.

The well-configured firmware, the speed of the unique adaptive technology, stability and obtain the best balance between speed!

Adopting top quality material and with advanced technique, this board is authentically reliable. No soldering and no assembling; you can DIY whatever circuit you prefer. It is really a good assistant during your development.

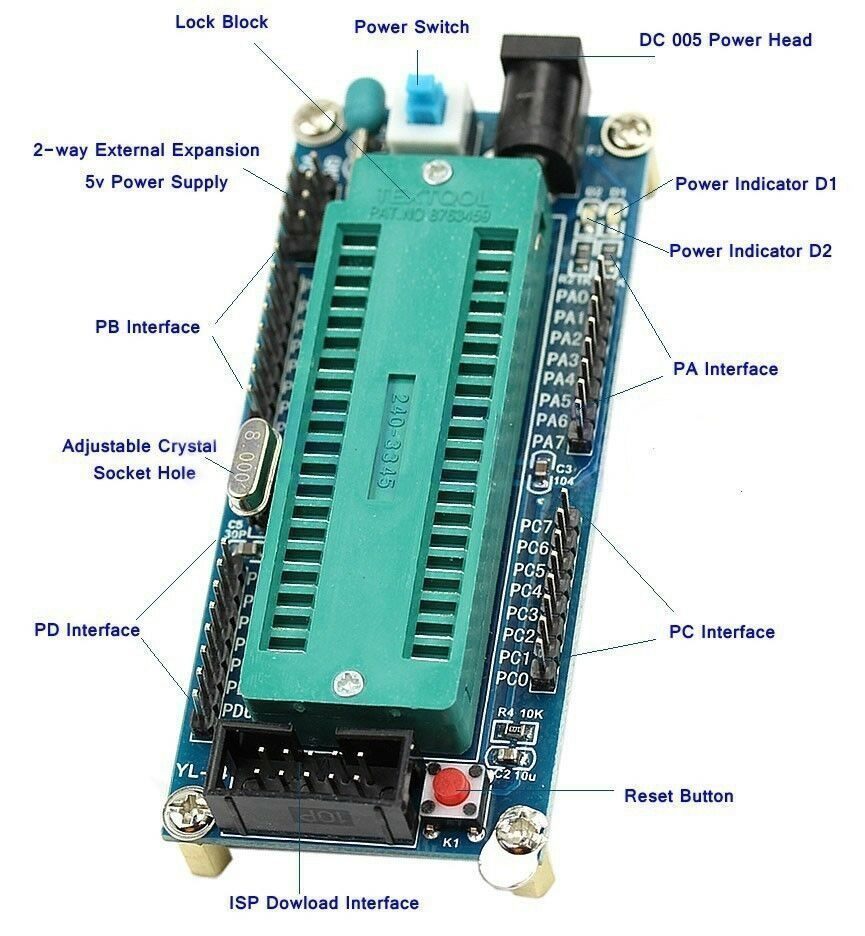

Features :

• 32 I/O pin all the leads.
• Classic ATmega16 minimum system, eliminating the hassle of soldering.
• Crystal: The socket hole welding facilitates the buyer to replace the crystal, 8M crystal.
• Support chips: ATmega16/ATmega32 and chip which pin-compatible.
• Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply)
• DC-005 Power Block (supporting the transposon is 5.5*2.1mm).
• Expand outside 4 channel VCC, GND.
• Reset: Power-on-reset and reset button.
• Power LED (D1) and the program run indicator (D2).
• Standard ISP download interface.

List of Supported Chips:

• 51 Series: AT89S51, AT89S52,, AT89S53, AT89S8252
• AVR Series:  ATTiny12 (L), ATTiny13 (V), ATTiny15 (L), ATTiny24 (V), ATTiny25 (V), ATTiny26 (L), ATTiny2313 (V) , ATTiny44 (V), ATTiny45 (V), ATTiny84 (V), ATTiny85 (V), AT90S2313 (L), AT90S2323 (L), AT90S2343 (L), AT90S1200 (L), AT90S8515 (L), AT90S8535 (L), ATMEGA48 (V), ATMEGA8 (L), ATMEGA88 (V), ATMEGA8515 (L), ATMEGA8535 (L), ATMEGA16 (L), ATMEGA162 (V), ATMEGA163 (L), ATMEGA164 (V), ATMEGA165 (V), ATMEGA168 (V), ATMEGA169 (V), ATMEGA169P (V), ATMEGA32 (L), ATMEGA324 (V), ATMEGA325 (V), ATMEGA3250 (V), ATMEGA329 (V), ATMEGA3290 (V), ATMEGA64 (L), ATMEGA640 (V), ATMEGA644 (V), ATMEGA645 (V), ATMEGA6450 (V), ATMEGA649 (V), ATMEGA6490 (V), ATMEGA128 (L), ATMEGA1280 (V), ATMEGA1281 (V), ATMEGA2560 (V), ATMEGA2561 (V), AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2 (B) , AT90PWM3 (B), etc.

Package Includes :

• 1 x ATMEGA16 ATmega32 AVR Atmega Development Board

Note:

• This minimum system development board without AVR chip, you need purchase for the chip in additional!!!
