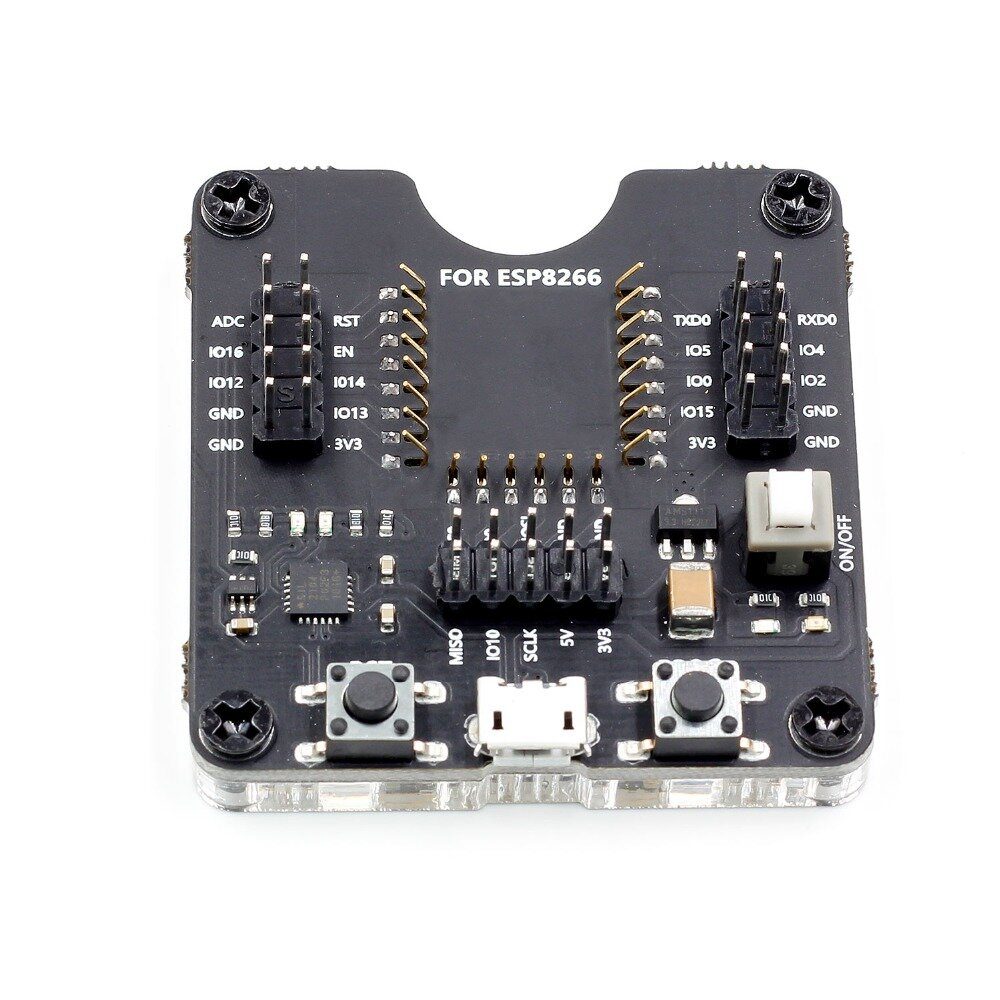

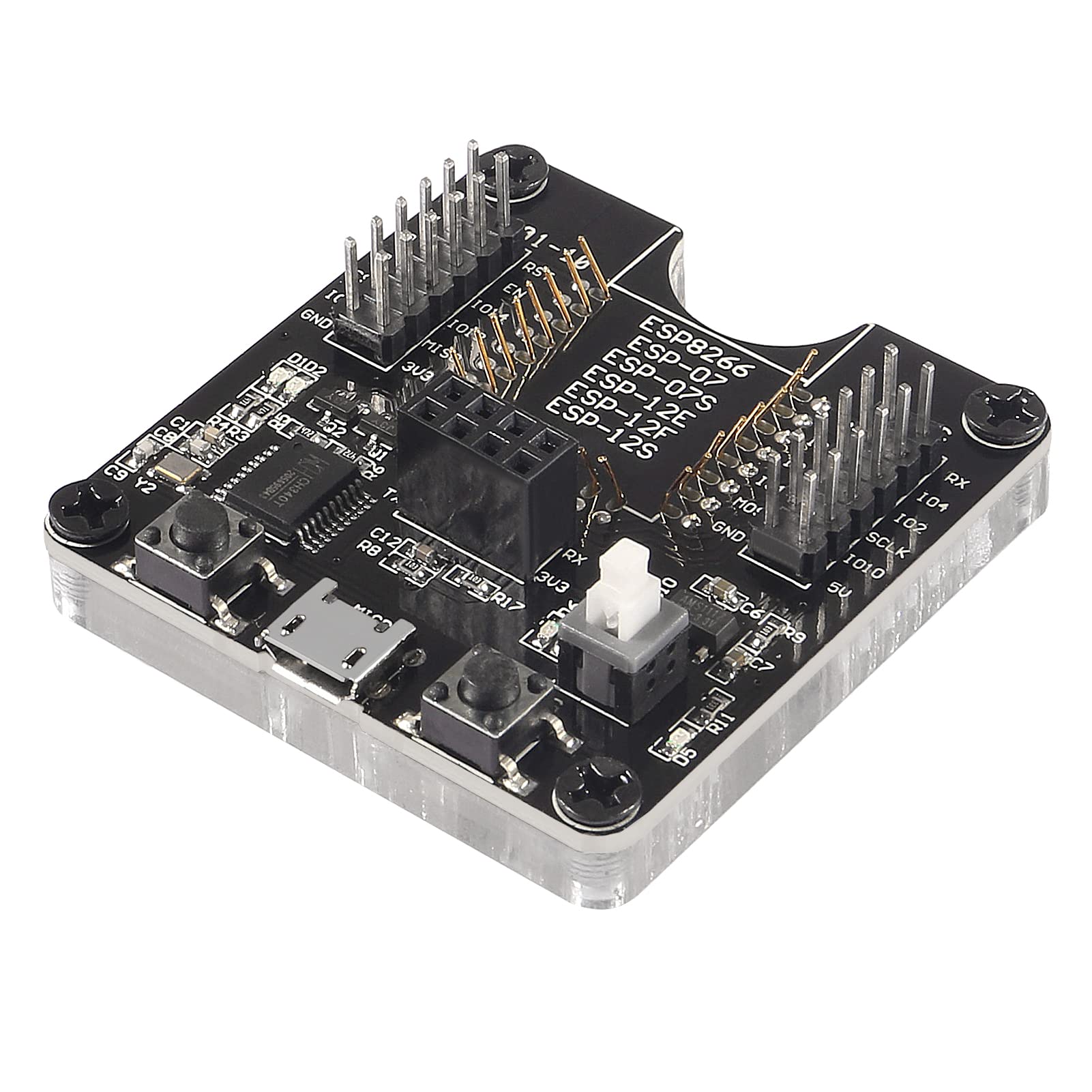

ESP8266 Wroom Downloader Burning Fixture Tool

The ESP8266 Wroom Downloader Burning Fixture Tool can be used to program ESP8266 chips for development and small-batch production. The development board comprises fixtures for the ESP8266 modules with an inbuilt CP2104 USB-TTL chip and an AMS1117 3.3 version regulator to drive and program the ESP module through USB.

The development fixture also has GPIO headers which can be used to drive peripherals directly from the development fixture board. This ESP8266 Wroom Downloader board is suitable for bulk programming and testing these SMT chips quickly without soldering the chips individually.

Also suitable for testing and debugging during production. This product is known as ESP8266 ESP12 ESP07 Burn and Test Board, ESP8266 Board, ESP8266 Wifi Module Programming Board/ Testing / Burner ZIF Development Board, ESP8266 Burner ZIF Development Board, ESP8266 Code Burner ZIF, ESP8266 Programming Board.

Features:

• Applicable: ESP-12S / 12F / 12E / 07S / 07 / 01S / 01
• Support one-click firmware download function
• Safe and reliable, small size, long service life
• It has a power indicator light, burn indicator light, serial port communication indicator light
• Lead out all IO ports, which can be used as the smallest system development board or for lamps for small programming batches
• Suitable for ESP12S ESP07S modules and other modules with a similar footprint
• Support firmware one-click download
• Safe and reliable, small size, long service life.
• There are power indicator lights, burning indicator lights, and serial communication indicator lights.
• Lead out all IO ports, which can be as a minimum system development board or a small batch burning fixture

Specifications:

• Item Type: Other Board/Module
• Based On: ESP8266 Based
• Model No: ESP8266 Fixture Code Downloader
• Material: Plastic
• Microcontroller Chip: CP2104 UART to UART Bridge Controller
• Color: Black
• Interface: Micro USB

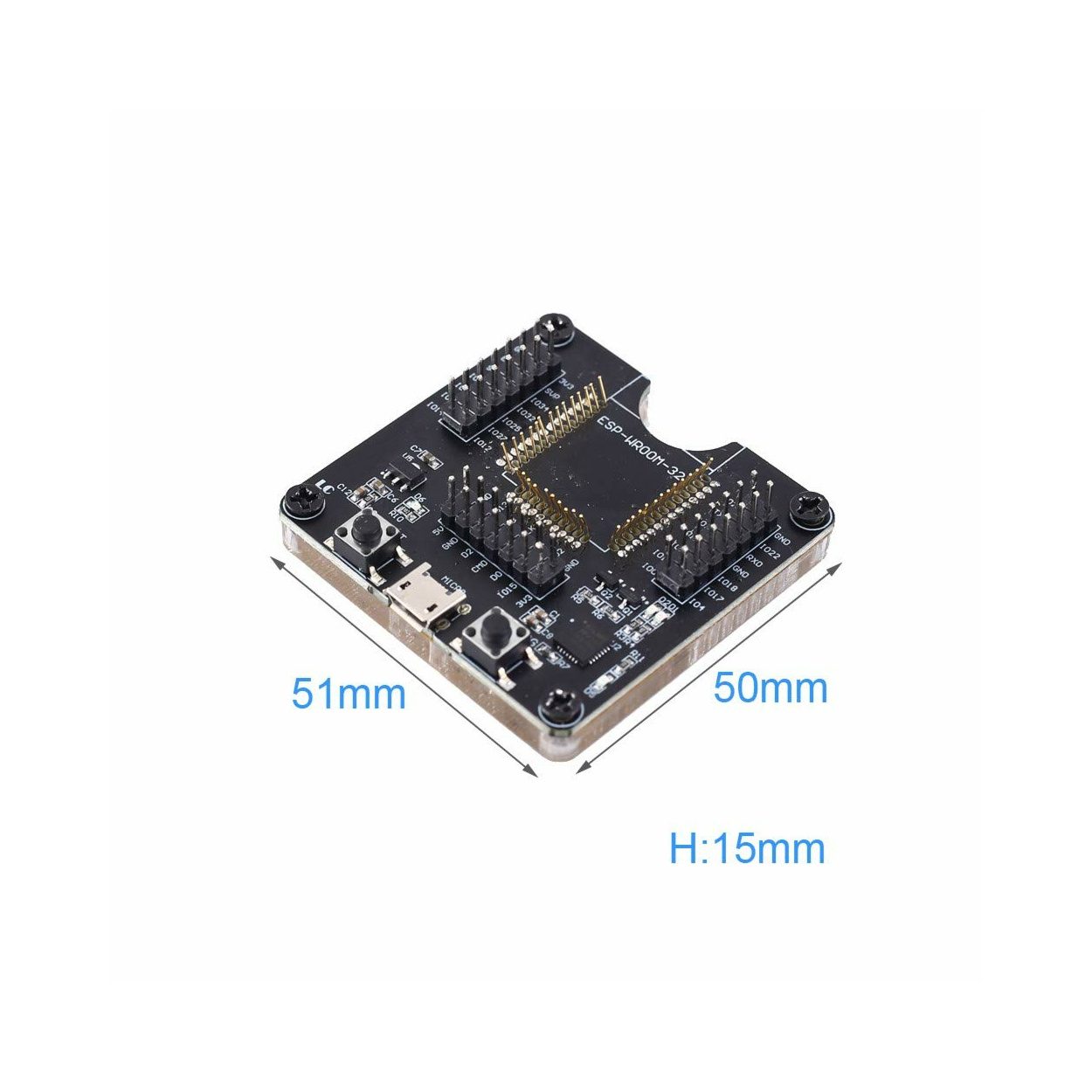

• Length (mm): 50
• Width (mm): 47
• Height (mm): 15

Applications:

• Support For ESP-07S ESP12S ESP-12E ESP-01S

Package includes:

• 1 x ESP8266 Burning Fixture Tool Downloader Programming Board
