IR Hand Sweep Motion Inductive Mirror Sensor Switch 12V DC 5A One Colour ON / OFF with Dimmer

IR Hand Sweep Motion Inductive Mirror Sensor Switch 12V DC 5A One Colour ON / OFF with Dimmer is a hand sweep touchless sensor switch that is suitable for DC 12V power supply, and realizes the switch control function of LED lights, light tubes and high voltage electrical appliances. It is a product designed specifically for bathroom smart light mirrors. The product is reliable, easy to install, sensitive to touch, and has a large output power. It is suitable for control of various mirror lights and other electrical appliances.

The touch switch board is designed with a backlight source, and the backlight source and the touch switch are designed as one body. When the power supply and the control switch are connected and power on, the backlight source on the switchboard is light up. the backlight source is always on and it can be turn off by long time press. Switch function as ON and OFF while touch and on touching the switch for long will work as dimmer.

LED light gets on/off when the hand pass over the switch and hold hand over the sensor to dim from 10%~100% to control the brightness of LED.

Features:

• Hand Sweep Inductive Mirror Sensor Switch with One Colour LED + Dimmer
• Suitable for DC 12V power supply
• reliable, easy to install, sensitive to touch
• Lighting control
• Long touch to switch will dim the light
• Support glass, acrylic, ceramics
• LED light on/off when the hand pass over
• hold hand over the sensor to dim from 10%~100%

Specifications:

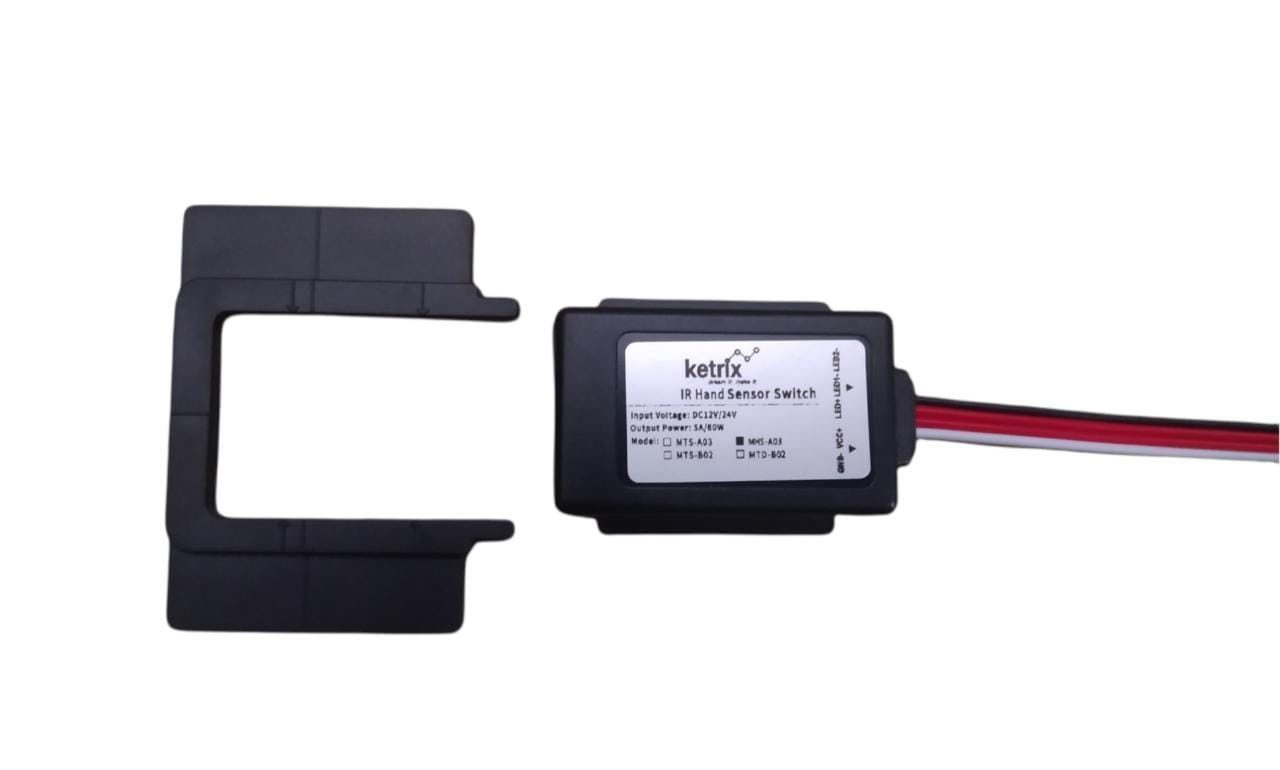

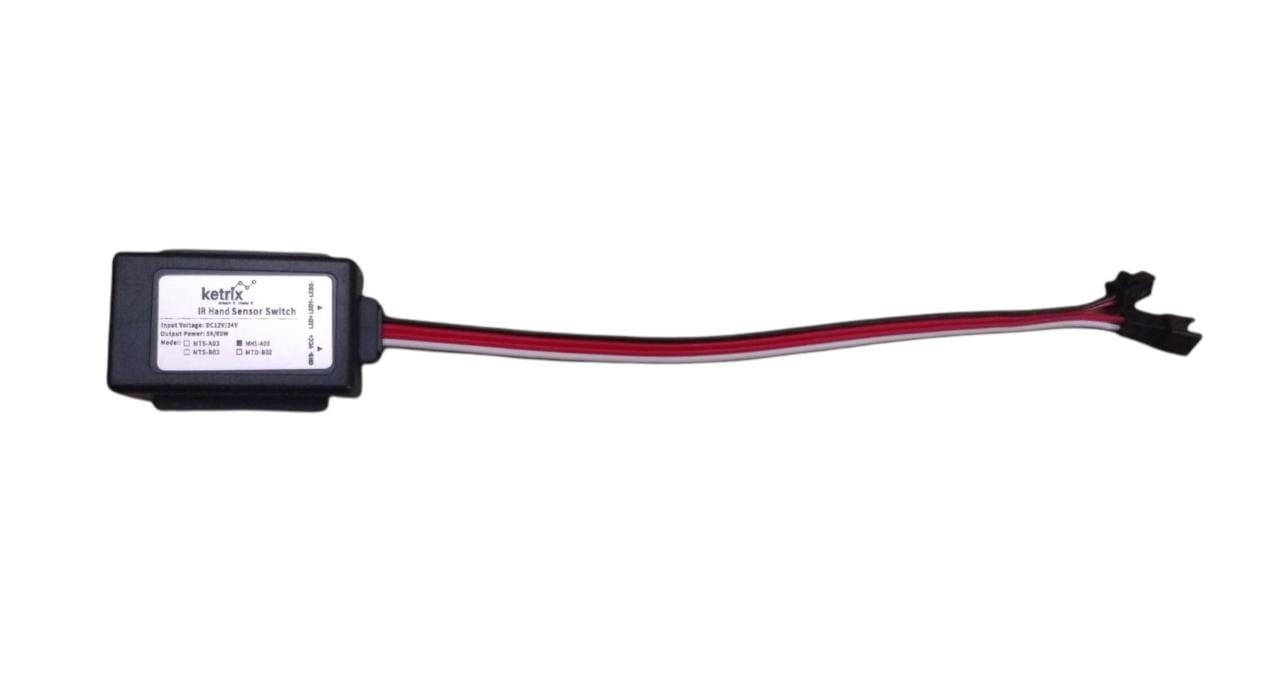

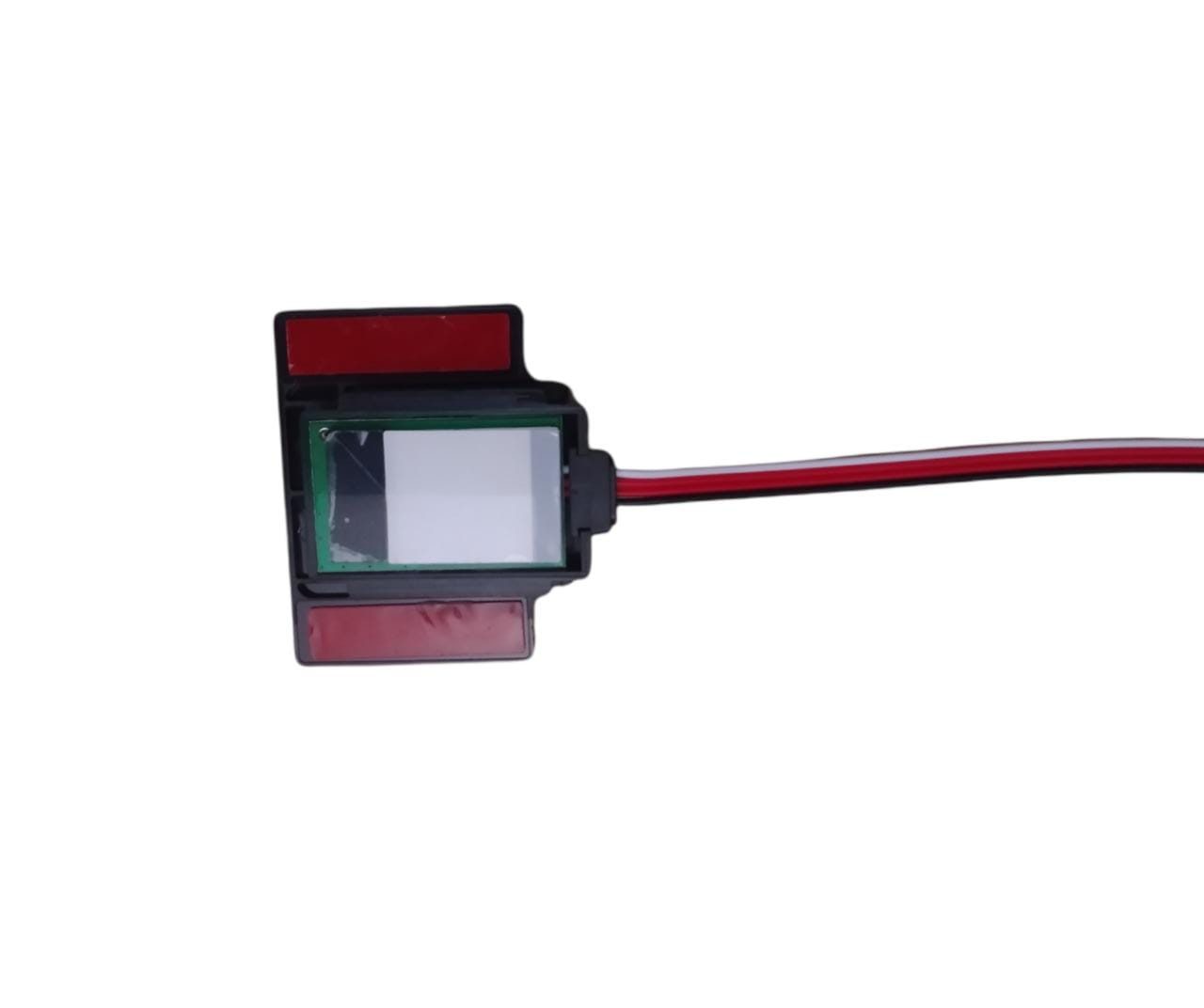

• Product Name: IR Hand Sweep Inductive Mirror Sensor
• Colour: One Colour with Dimmer
• Model: MHS-A03
• Voltage: 12V
• Current: 5A
• Power: 48W
• Control mode: Hand Pass Over
• Installation method: Slide rail buckle
• Supported mirror thickness: ≤5mm
• Intelligent shutdown Duration: 3h
• Size: 66x62x12mm
• Indicator Light: White(Off);Blue(On)

Package Includes:

• 1 x  IR Hand Sweep Inductive Mirror Sensor Switch 12V DC 5A One Colour with Dimmer
