EZ-USB FX2LP CY7C68013A USB Development Board Logic Analyzer
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary

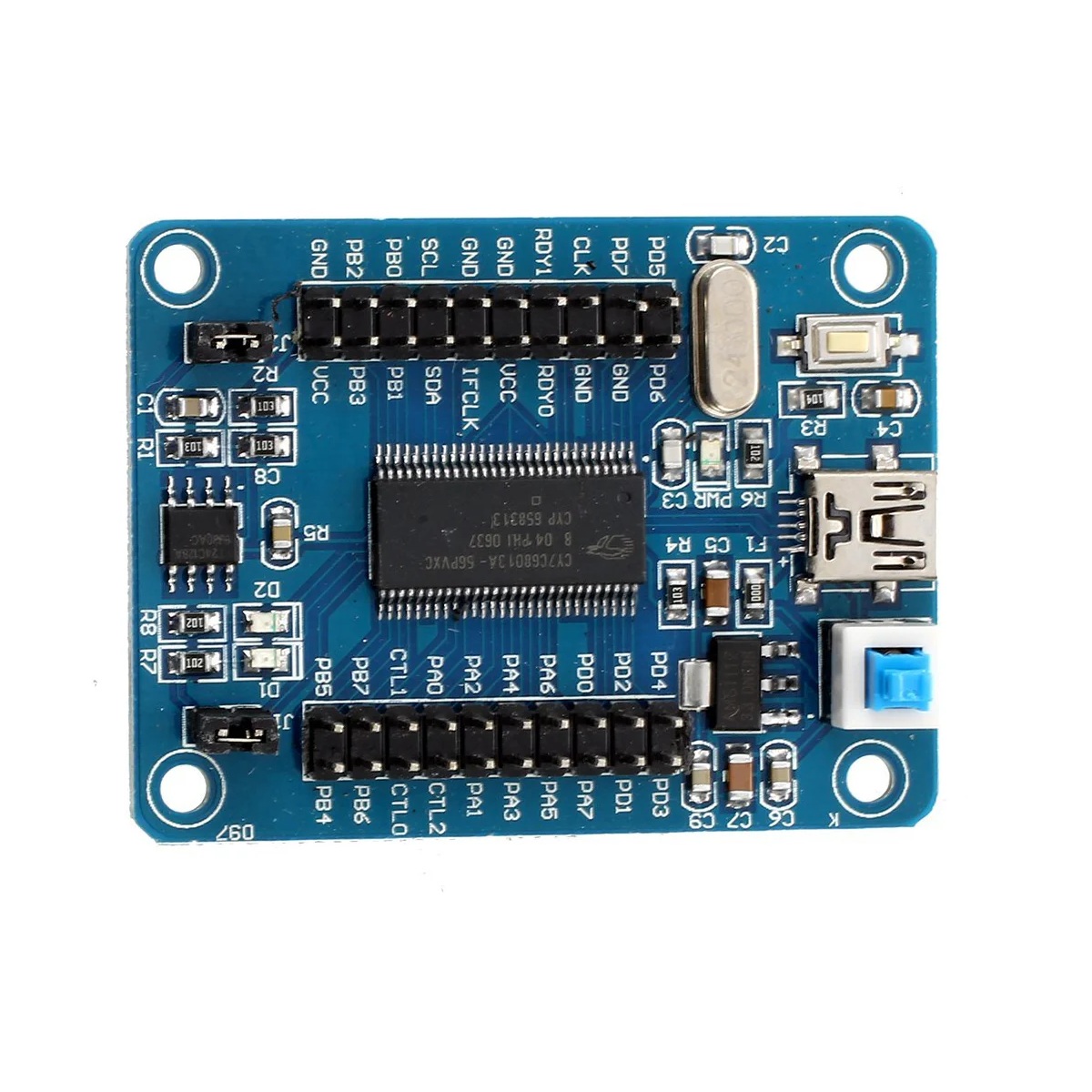

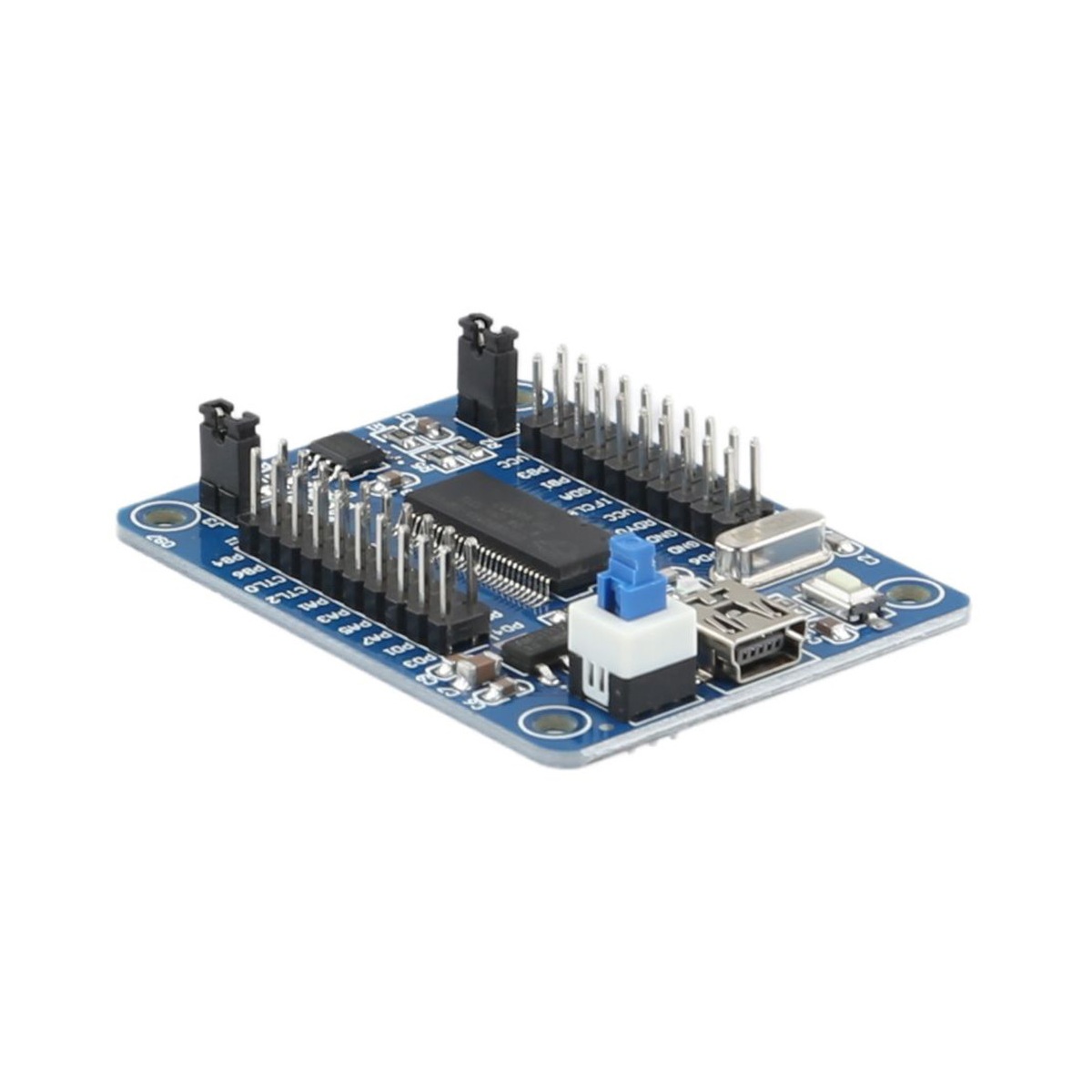

SKU: ANIL2654This EZ-USB FX2LP CY7C68013A USB Development Board Logic Analyzer provides an ideal tool for learning about the Cypress EZ-USB FX2LP Microcontroller. This development board breakout all the GPIO of the microcontroller; so it will be very convenient for learners to expand their own design.
It also uses the actual silicon for the entire development, Cypress’s software utilities and example firmware allow the user to generate USB traffic in hours, not weeks! For the very details, you can access the EZ-USBu017d Technical Reference Manual (TRM) at Here. For software collaterals download SuiteUSB.
EZ-USB FX2LP CY7C68013A USB development Board Logic Analyzer uses CY7C68013A-56 chip with low-power version; an enhanced 51 core, 16KB program data area, main frequency 48Mhz, 480Mbps high-speed transmission protocol standard; in line with USB 2.0 specification, downward compatible with USB 1.1.
Firmware EEPROM is Complete in-system programming scheme, downloading firmware program directly with a USB cable; providing 16K (24LC128) on-board large-capacity program memory (EEPROM) for storing VID/PID and USB firmware to meet the program space requirements of CY7C68013A.
All GPIOs are drawn out by 2.54mm standard needle arrangement, which greatly facilitates learners’ self-expanding design. The function of the logic analyzer can be realized by matching corresponding firmware through this core board.
Specifications and Features:
- High-Speed USB2.0 specification at 480Mbps, compatible with USB 1.1
- Enhance Cypress EZUSB FX2LP processor CY7C68013A-56, with USB2.0 Core, high speed 8051 core, 16K RAM, GPIF interface, Slave FIFO interface
- Built-in IDE interface for IDE devices
- Powered by USB Port
- Compact Design

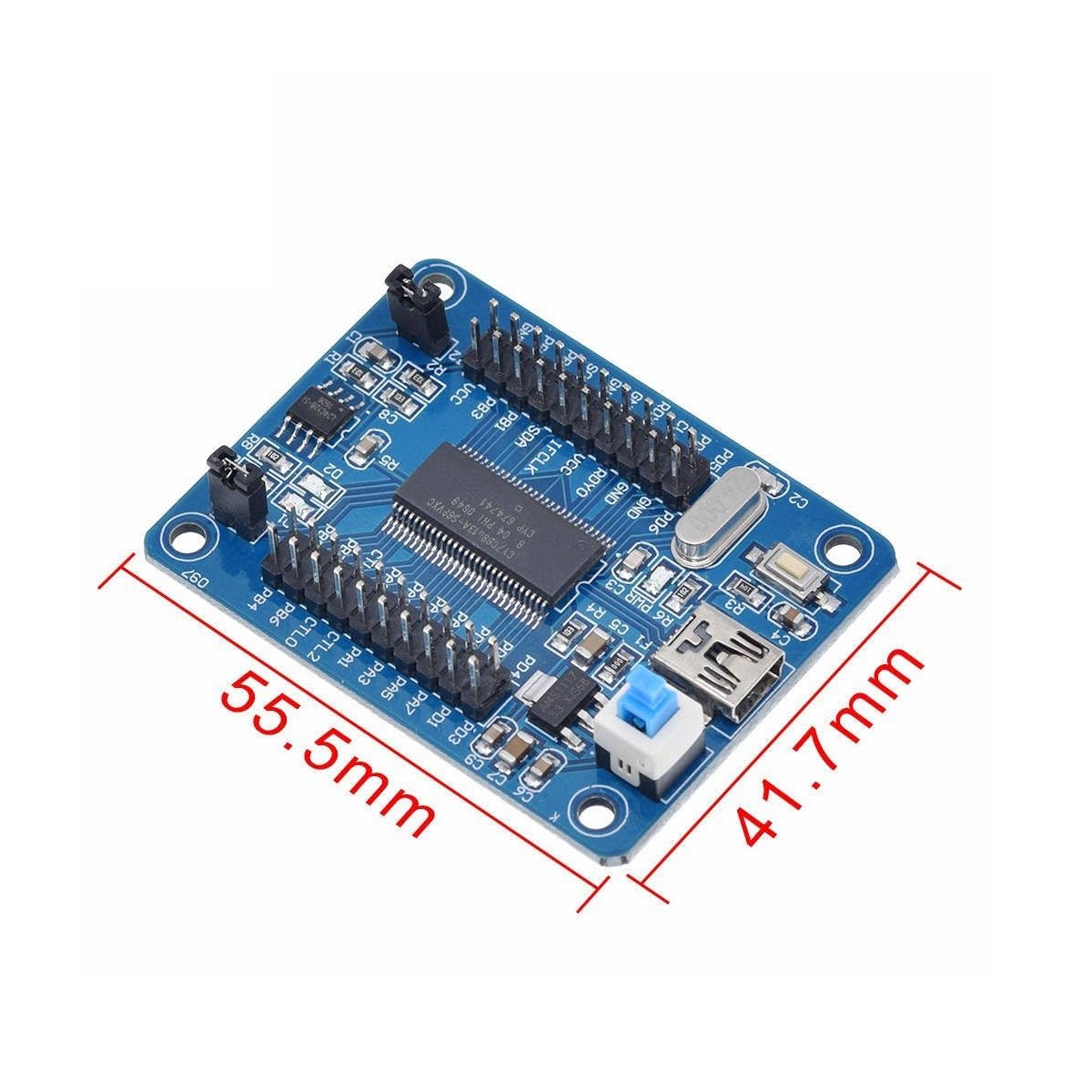

- Board Dimensions(LxWxH)mm: 55 x 41 x 12
- Weight: 15g
