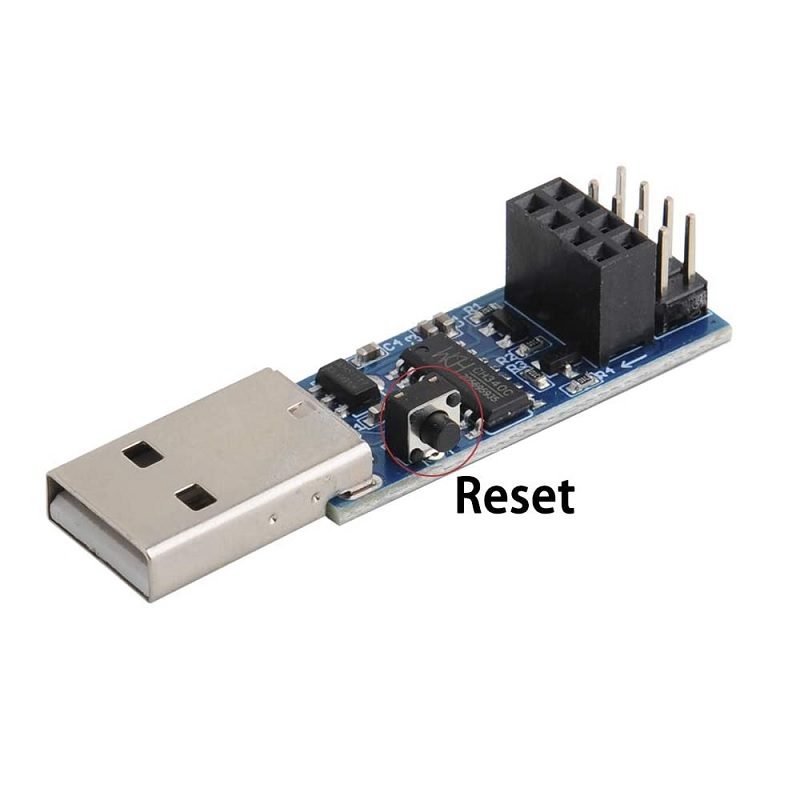

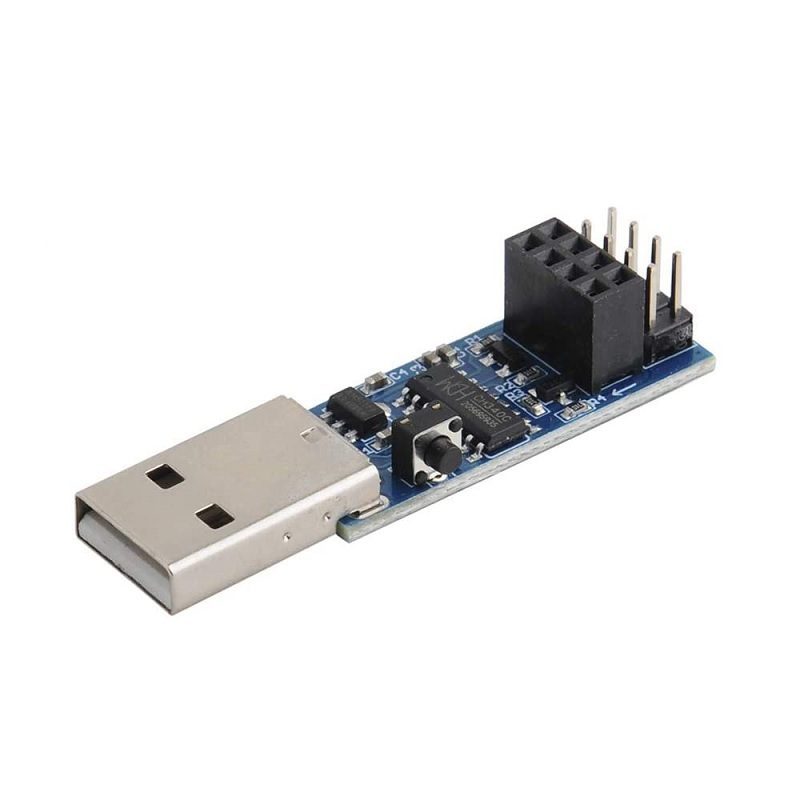

CH340C WIFI Module Adapter Download Debug for ESP8266 ESP-01/01S
CH340C WIFI Module Adapter Download Debug for ESP8266 ESP-01/01S is a downloader which adopts CH340G USB to Serial Chip and adds 8 self help download circuits, which is very convenient for users to download programs to ESP-01/01S wifi module, upgrade firmware, serial port AT command debugging, etc.
This module supports Arduino IDE, Anxin ESP8266 Flasher, and music One-Click download of software such as Xin Flash Download.
Features:
- No need to press any button
- The wifi module will automatically enter into download mode.
- Low cost and low price solution for rapid prototyping.
- Compact size, easy to embed in any product
Specifications:

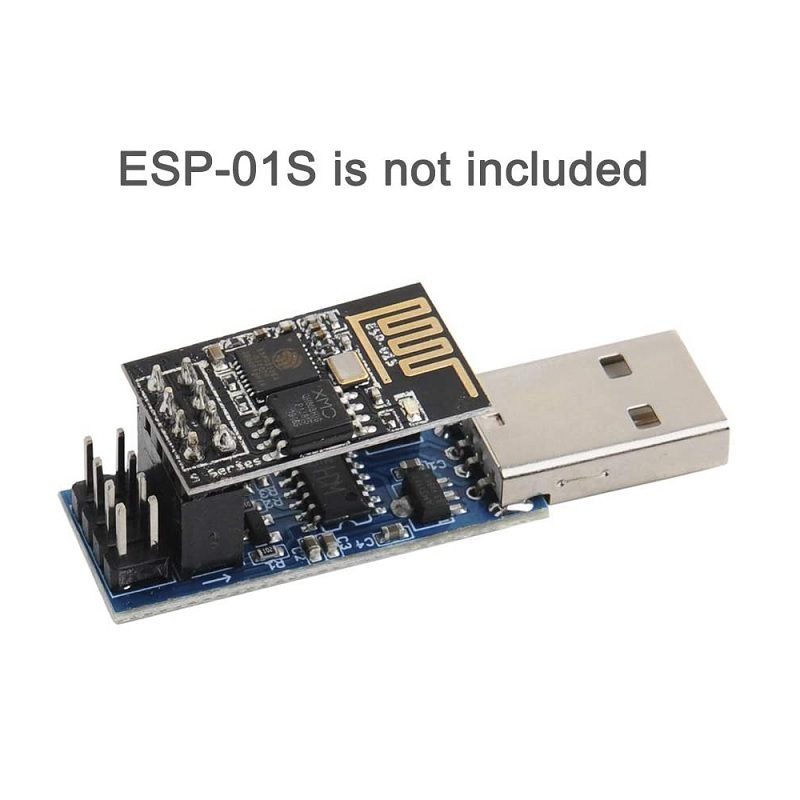

- Compatible With: ESP8266 ESP-01/01S
- Operating Voltage: 5 VDC
- USB to Serial Chip: CH340C

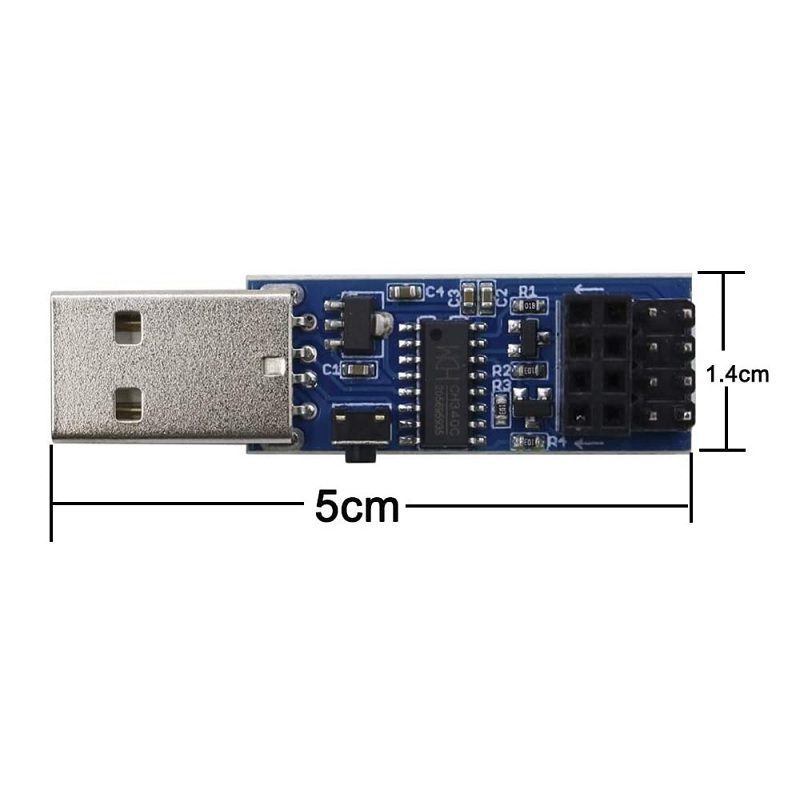

- Length (mm): 50
- Width (mm): 14
- Height (mm): 12
- Weight (gm): 6
Package Includes:
- 1 x CH340C WIFI Module Adapter Download Debug for ESP8266 ESP-01/01S
