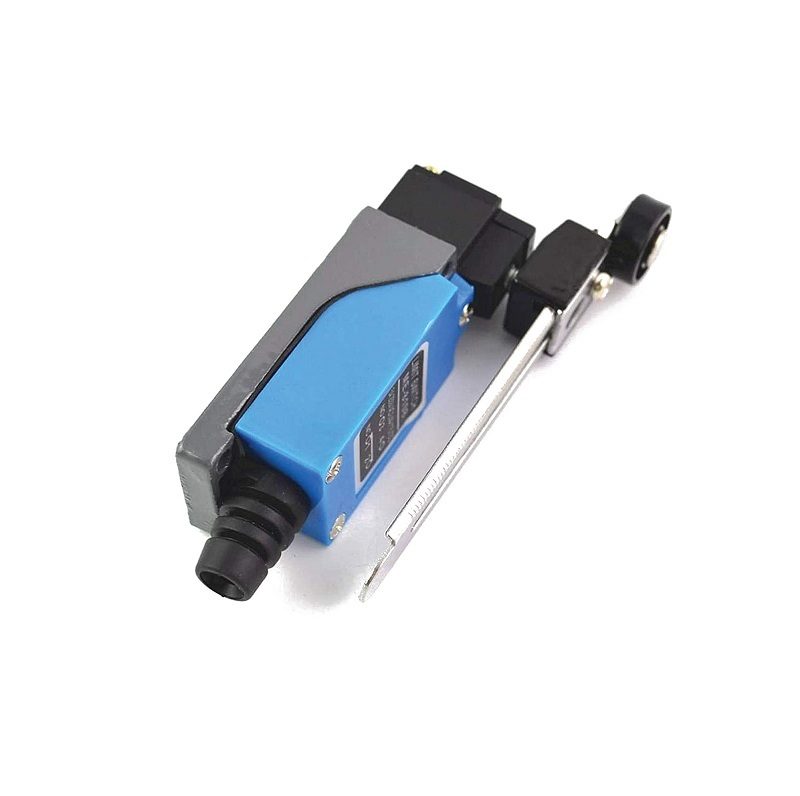

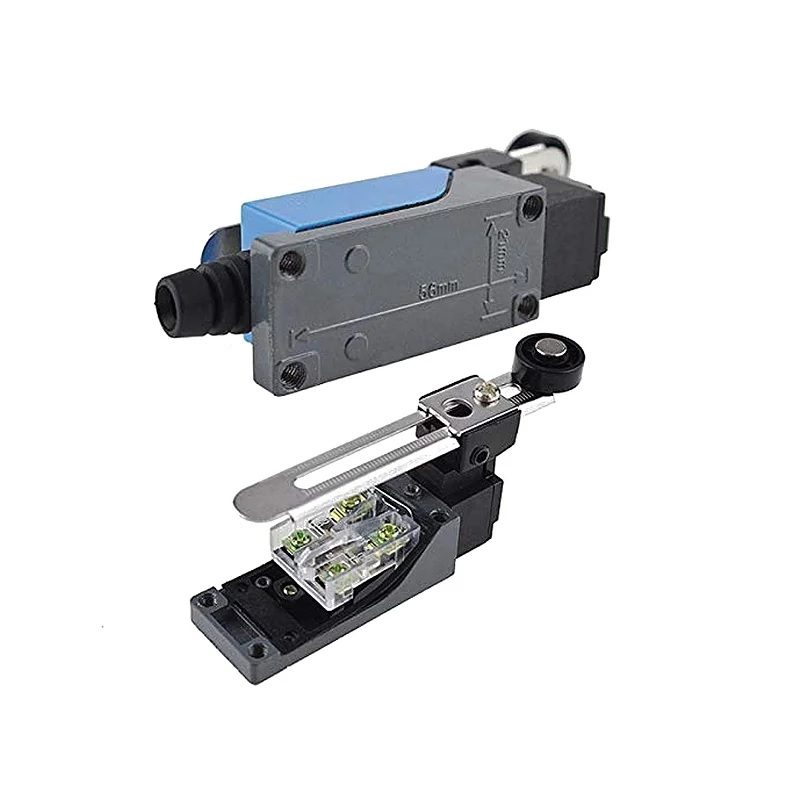

ME-8108 Rotary Adjustable Roller Lever Arm Mini Limit Switch

ME-8108 Rotary Adjustable Roller Lever Arm Mini Limit Switch also named the POSITION SWITCH, is a commonly used small current main electrical appliances, the contact action is realized through the collision of the moving parts of the production machinery or segmented control circuit, achieve certain control target.

Lever arm can be rotated to the left by 90° degree and to the right by 90° degree. Perfect for electrical control switches in mechanical and other industries; This Limit Switch can be widely used in various machines to monitor the position of moving parts of machines and plant; Please pay attention to the Voltage Rating and check with the voltage of your place to make sure the Limit Switch successfully works.

Features:

• Actuator action: momentary.

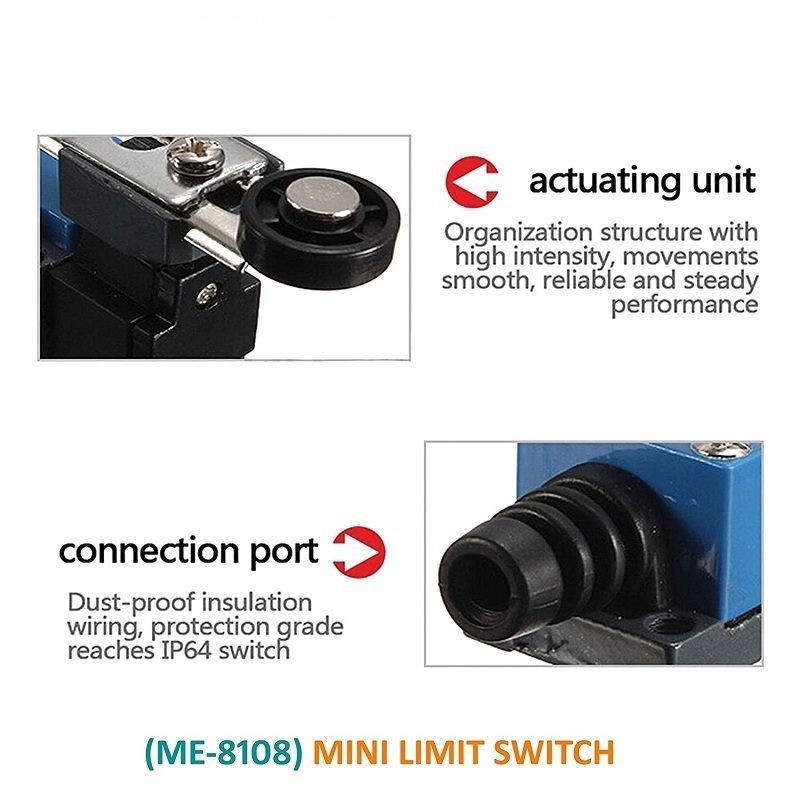

• Actuator type rotary adjustable lever arm with a roller.

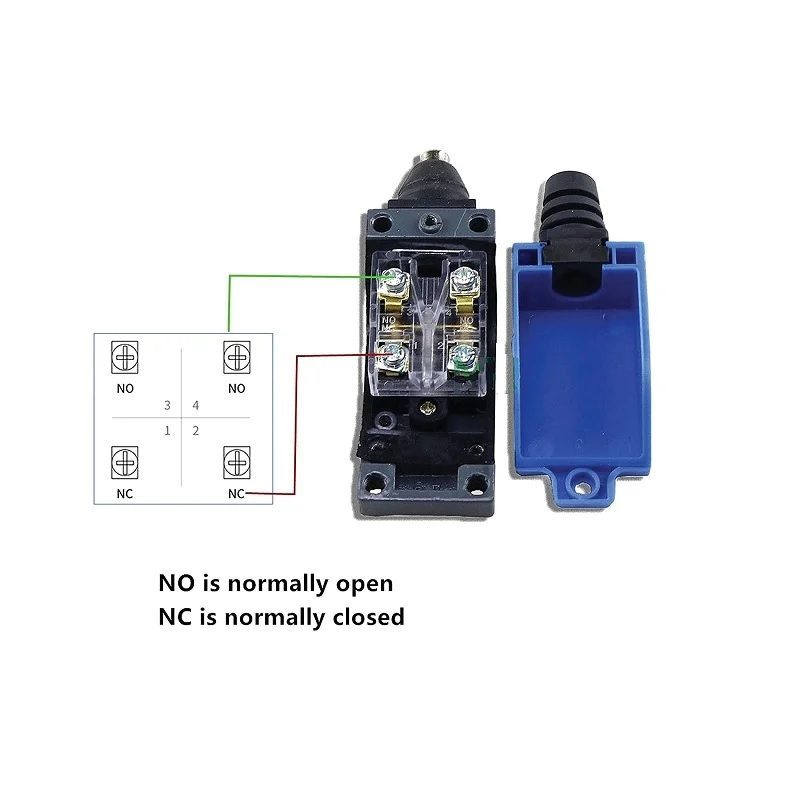

• Contact configuration 2 NC + 2 NO.
• IP Rating: IP66

Specifications:

• Model: ME-8108
• Voltage Rating: AC380V, 6(2)A, AC250V, 10(4)A.
• Actuator action: Momentary.
• Material: Resin, Plastic, Metal.

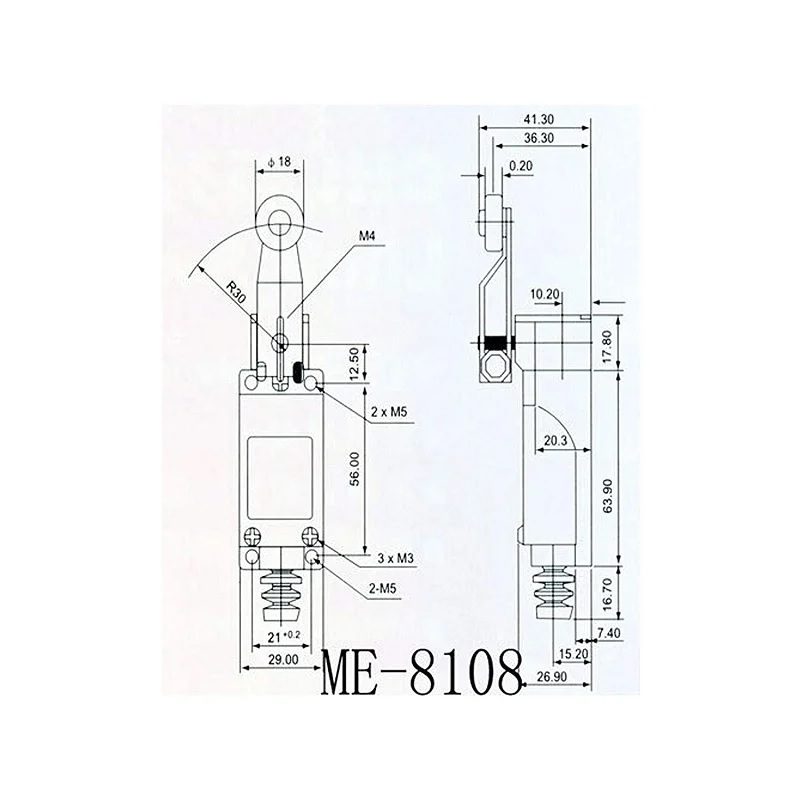

• Roller Dimension: 1.8 x 0.7cm / 0.7 x 0.3″(D*H)
• Lever Arm Length: 10cm / 3.9″
• IP Rating: IP66
• Weight (gm): 92

Package Includes:

• 1 x ME-8108 Rotary Adjustable Roller Lever Arm Mini Limit Switch
