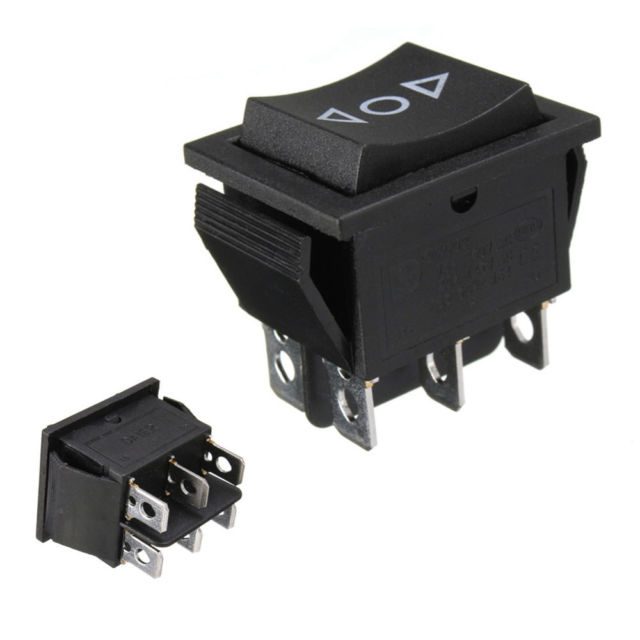

DPDT Rocker Momentary Switch for Robot Remote

DPDT Rocker Momentary Switch for Robot Remote is a basic DPDT ON-OFF-ON Rocker Momentary Switch for Robot Remote for your projects. No screws required, it simply clips into place. This is a two-pin switch that is easy to use, simply cut one of the two power wires and solder each of the ends to the unit.

This 16A 250V AC DPDT ON-OFF-ON Rocker Switch is perfect for controlling power to electronic circuits, robots, etc.

The On-Off-On Rocker Switch is the simplest and easiest power control switch for your project. It comes with tabs on the top and bottom which secure it onto an enclosure without the need for any screws. On and Off positions are clearly marked which help users identify the current switch position during usage.

This switch is great to turn on/off and control DC Motors in Robotics, Car and Motorcycle DC Motors, DC Motors in Industrial Machines, Water Dispensers, etc. We have sourced the best switch with a high load rating of 16A at 250VAC which should be suitable for most applications.

Features:

• Positions Marked on the rocker: I, O (On and Off) for easy identification
• Easy installation, No Screws or Nuts required
• Used widely for on/off power control, car, motorcycle, boat, some machines, water dispenser, etc.

Specifications:

• Rating: Max 16A at 250VAC
• Switching Mode: ON-OFF-ON
• Structure: DPDT Switch
• Mounting Type: Panel Mount
• Panel Cut-Out (LxWxH): 25.2 x 21 x 16 mm
• Operating Temperature: -20 to +85°C
• Actuator Colour: Black

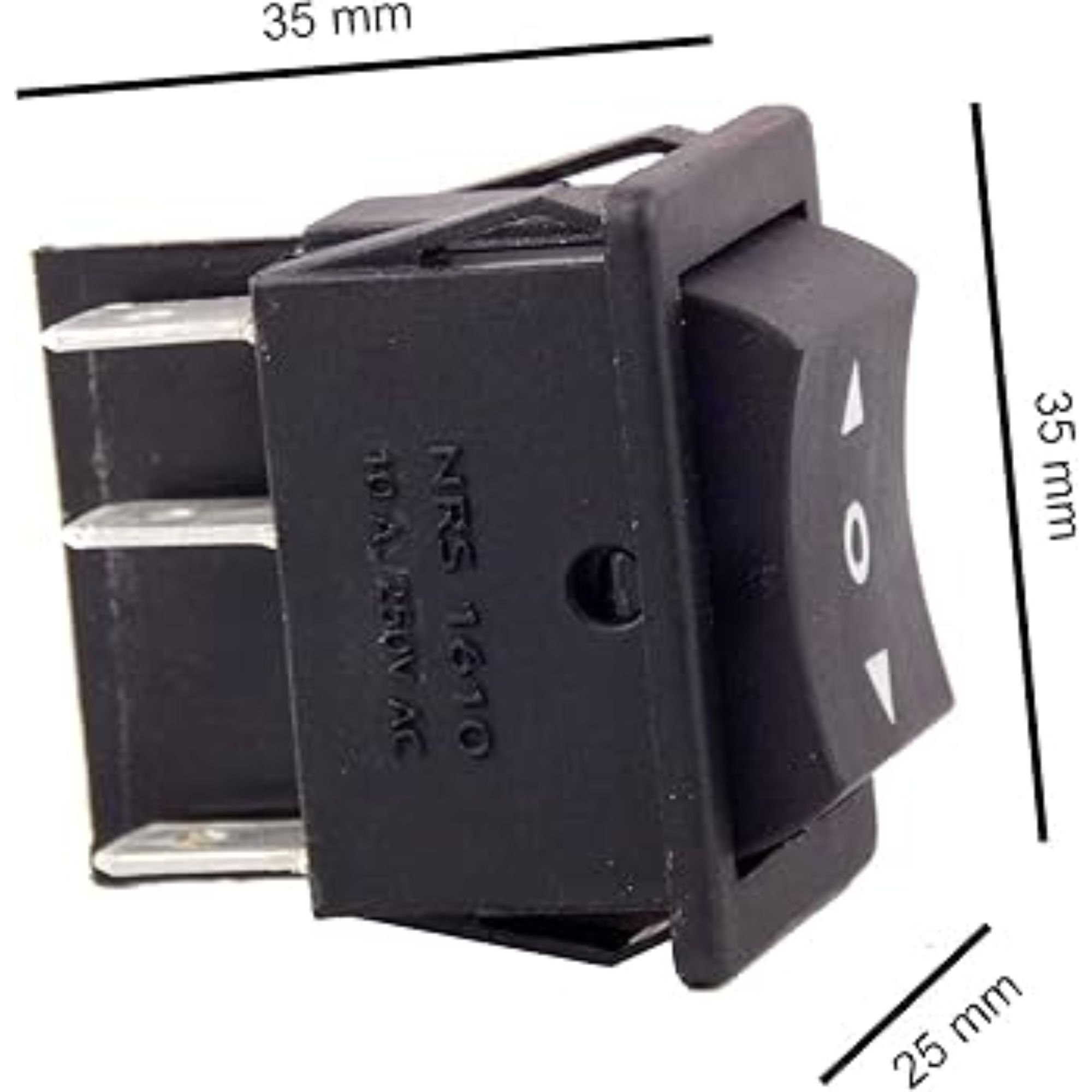

• Length (mm): 34
• Width (mm): 25
• Height (mm): 32
• Weight (gm): 15

Package Includes:

• 1 x DPDT ON-OFF-ON Switch for Robot Remote
