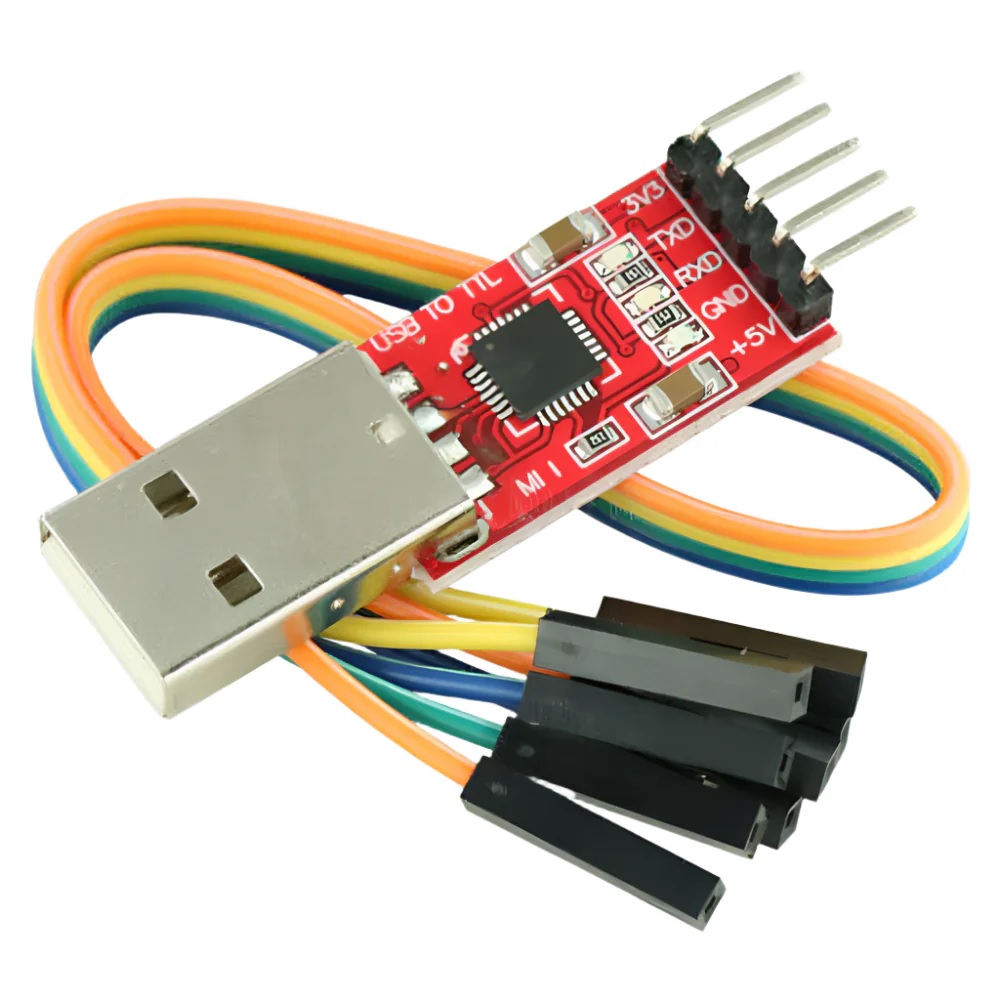

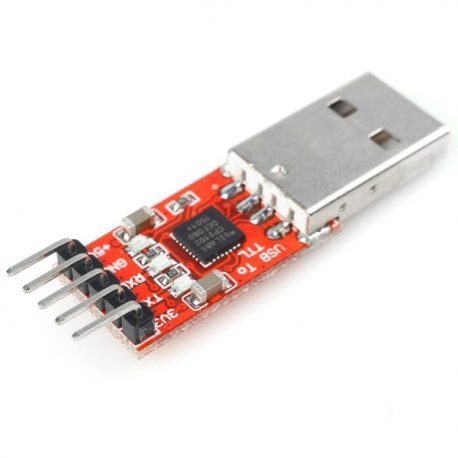

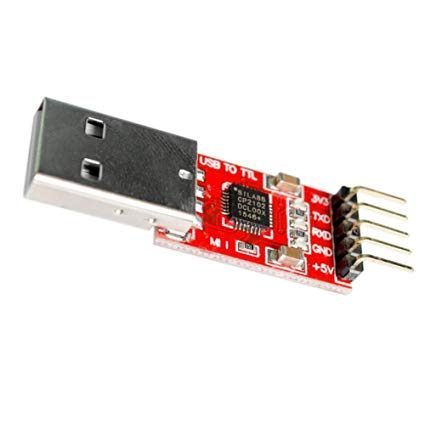

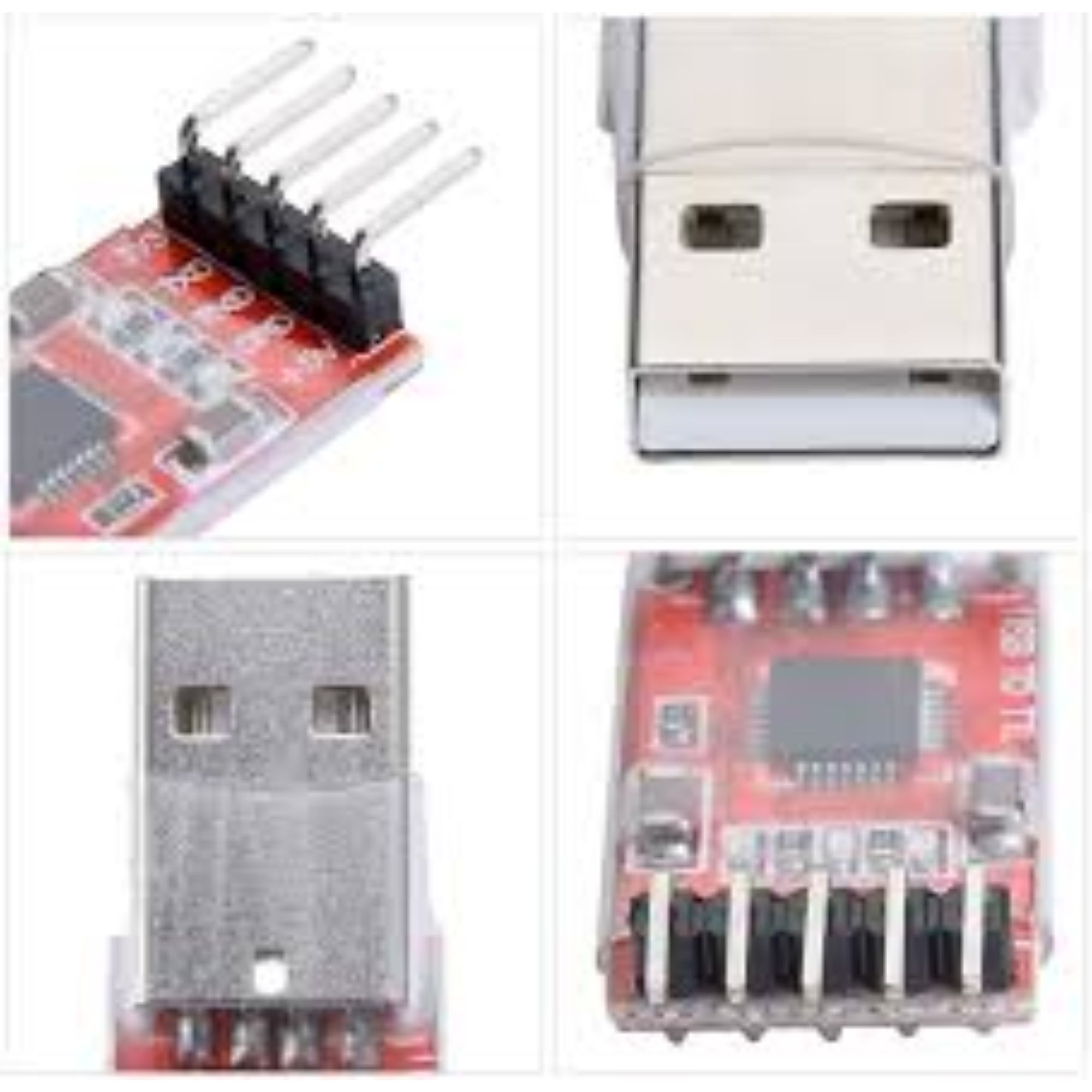

USB to TTL UART Serial Converter Module CP2102 5 Pin with cable

Interface Converter Modules

USB to TTL UART Serial Converter Module CP2102 5 Pin with cable

star star star star star_half

121 rating

Just for you!

SKU: ANIL1144

MRP: Rs. 182.70

Rs. 152.25 (Incl. Tax)

Rs. 137.03 / pack of 1 = Rs. 137.03 per piece

Quantity

USB to TTL UART Serial Converter Module CP2102 5 Pin is a single chip USB to UART bridge IC. It requires minimal external components. CP2102 can be used to migrate legacy serial port based devices to USB.

CP2102 chip is a single-chip USB to UART bridge IC. It requires minimal external components. CP2102 can be used to migrate legacy serial port based devices to USB. CP2102 its a highly integrated, built-in USB2.0 full-speed function controller, USB transceiver, crystal oscillator, EEPROM, and asynchronous serial data bus (UART), to support a full-featured modem signal without any external USB devices. Similar to other works CP2102 USB-UART switching circuit by the driver into the PC’s USB port virtual COM port expansion to achieve the purpose.

Features:

Stable and reliable chipset CP2102.
USB specification 2.0 compliant with full-speed 12 Mbps.
Standard USB type A male and TTL 5 pin connector.
5 pins for 3.3V, RST, TXD, RXD, GND & 5V.
Baud rates: 300 bps to 1.5 Mbps
Byte receive buffer; 640 byte transmit buffer.
Hardware or X-On/X-Off handshaking supported.
Event character support Line break transmission.
USB suspend states supported via SUSPEND pins.
Temperature Range: -40 to +85.
Size: 42 mm X 15 mm.
Weight: 4g

Pinouts:

TX = Connect to Transmit Pin(TXD) of Micro controller. This pin is RX pin of CP2102 on board.
RX = Connect to Receive Pin(RXD) of Micro controller. This pin is TX pin of CP2102 on board.
GND = Should be common to microcontroller ground.
3V3 = Optional output to power external circuit upto 50mA.
5V = Optional output to power external circuit upto 100mA
